Запчасти Case IH 7140 (4-038) - BATTERY, BATTERY BOX AND CABLES, POST TYPE CABLES (04) - ELECTRICAL SYSTEMS

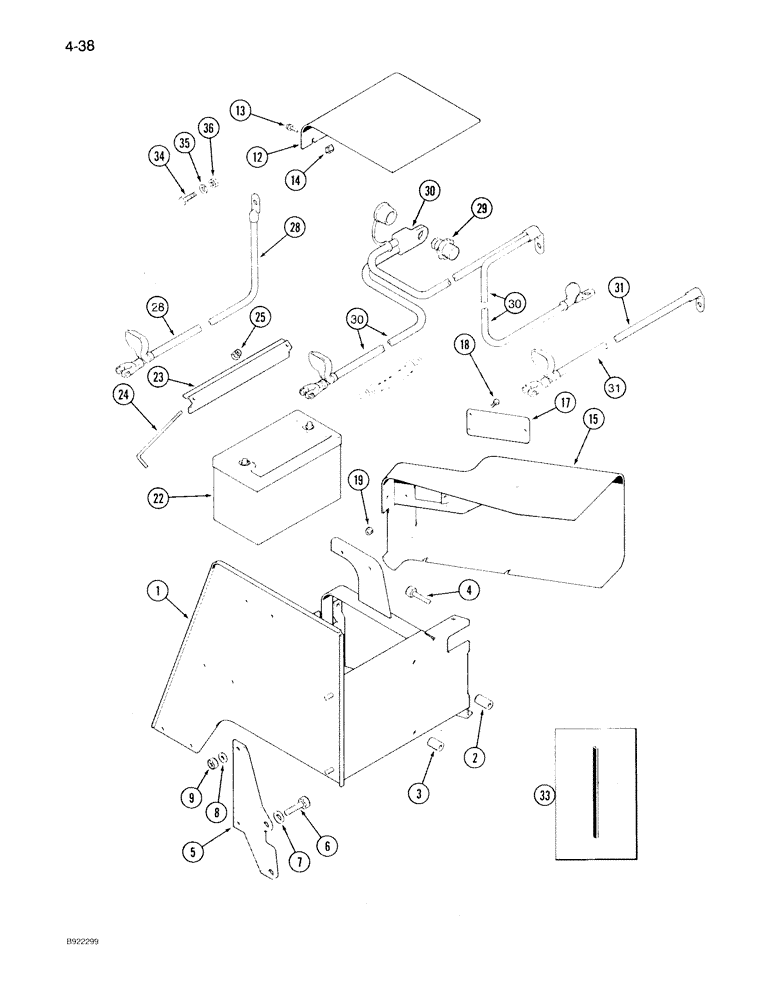

Схема запчастей Case IH 7140 - (4-038) - BATTERY, BATTERY BOX AND CABLES, POST TYPE CABLES (04) - ELECTRICAL SYSTEMS
25
6
30
12
36
23
33
8
5
30
2
17
3
35
29
22
15
9
19
7
13
24
18
31
30
31
14
4
34
28
1
28

Артикул

Название

Примечание

Количество

1

1955202C1

ELECTRICAL CABINET

BOX - battery

1шт.

2

96867C2

SPACER

- box mounting, upper

1шт.

3

96868C2

SPACER

- box mounting, lower

1шт.

4

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

2шт.

5

96636C1

SUPPORT

- box, rear

1шт.

6

813-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 8.8

2шт.

7

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

Flat M17.5 x 30 x 4, HT

2шт.

8

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

2шт.

9

829-1412

NUT,M12, Cl 10.9

2шт.

12

96656C1

COVER

- battery, top

1шт.

13

1975782C1

SELF-TAP SCREW,Truss HD, #10 - 16 x 5/8"

SCREW, SELF TAPPING - truss head cross recess, No. 10-16 x 5/8"

2шт.

14

104036C1

NUT

- tapping screw

2шт.

15

96657C2

COVER

- battery box, front

1шт.

17

1334657C1

LARGE PLATE

PLATE - cover

1шт.

Used on tractors without lower flood lamps.

1шт.

18

1960750C1

SCREW,Pan HD, 1/4" - 20 x 3/8"

- pan head special, 1/4 NC x 3/8 inch

6шт.

19

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

6шт.

22

BMF31G

BATTERY, DRY

12V, Tractor

2шт.

23

96635C1

ANGLE

BRACKET - hold down, battery

2шт.

24

97052C1

TRUSS ROD,5/16" - 18 x 287mm

BOLT - hold down, battery

4шт.

25

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex, flange, self-locking, 5/16 inch NC

4шт.

28

1983286C1

CABLE

- negative, battery

2шт.

29

1983630C1

TERMINAL CONNECTOR

TERMINAL - jump start stud

1шт.

Terminmal that positive booster cable attaches to. For items that negative booster cable attaches to, see Figure 4-002 Ref. 38, 39, 40 and 41

1шт.

30

1987379C1

CABLE

ASSEMBLY - positive, battery

1шт.

31

1983285C1

CABLE

ASSEMBLY - positive, battery

1шт.

33

1978410C1

MOLDING

TRIM - edge, battery box

1шт.

34

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

1шт.

35

492-11038

LOCK WASHER,3/8"

1шт.

36

425-106

NUT,3/8"-16, Cl 5

1шт.

Выбрано товаров: 30
