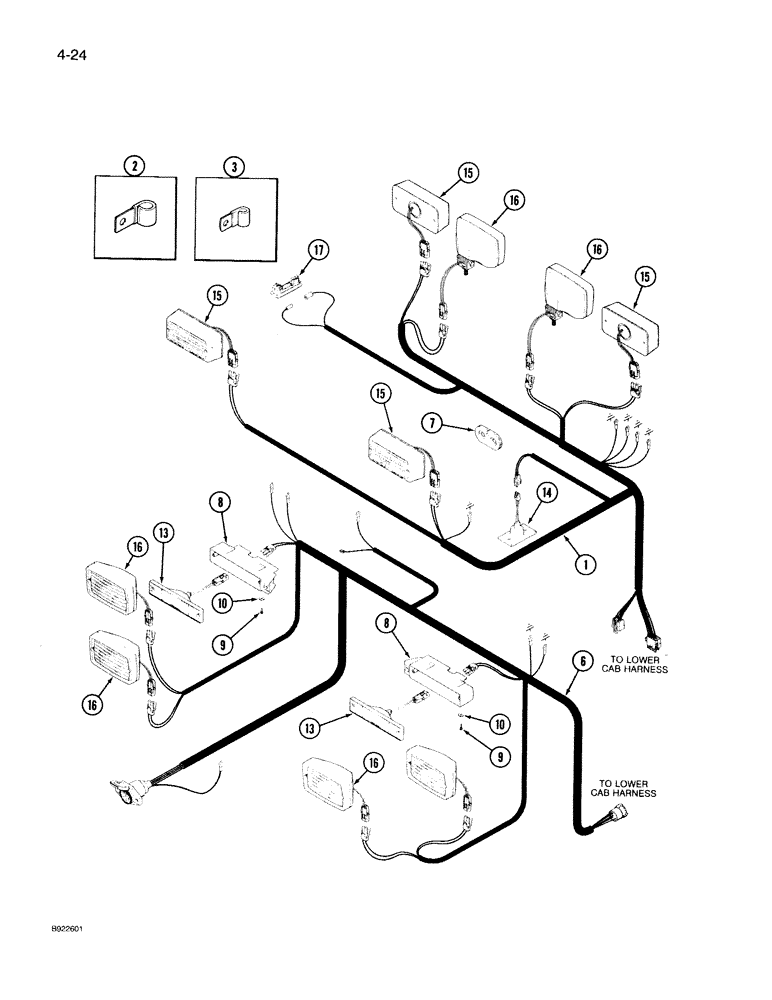

Запчасти Case IH 7140 (4-024) - ROPS HARNESS (04) - ELECTRICAL SYSTEMS

1

1964552C2

HARNESS

- ROPS

1шт.

2

1251744C2

CLAMP

CLIP - harness retaining

2шт.

3

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP - harness retaining

8шт.

6

1964584C1

HARNESS

- fender

1шт.

7

97039C1

GROMMET

- upper channel

1шт.

8

REF

INSTRUCTION

HOUSING - tail lamp, See Figure 4-052

2шт.

9

1283774C1

SELF-TAP SCREW,Hi-Lo, Hex Wshr Hd, #8 - 18 x 3/4", Blunt Pt

- hex washer tapping, No. 8 x 3/4 inch

4шт.

10

195-513

WASHER,#10

- flat, 7/32 x 1/2 x 1/32 inch

4шт.

13

REF

INSTRUCTION

LAMP ASSEMBLY - tail, See Figure 4-052

2шт.

14

REF

INSTRUCTION

LAMP ASSEMBLY - console, See Figure 4-056

1шт.

15

REF

INSTRUCTION

LAMP ASSEMBLY - flasher warning, See Figure 4-052

4шт.

16

REF

INSTRUCTION

LAMP ASSEMBLY - flood working, See Figure 4-056

1шт.

17

REF

INSTRUCTION

LAMP ASSEMBLY - dome, See Figure 4-056

1шт.
