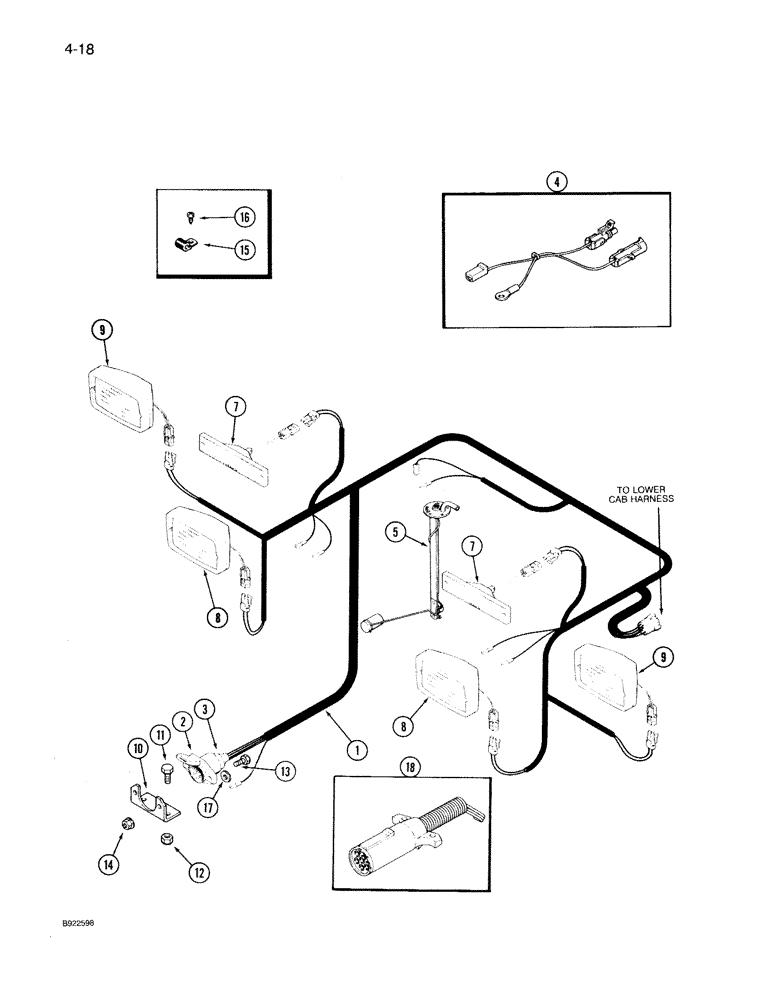

Запчасти Case IH 7140 (4-018) - CAB FENDER HARNESS (04) - ELECTRICAL SYSTEMS

1

1964584C1

HARNESS

- fender, Includes: Ref. 2 and 3

1шт.

2

121645C1

MULTIPOLE CONNECTOR,7 Pin

OUTLET - seven terminal

1шт.

3

481849C1

PROTECTIVE COVER

BOOT - wiring harness

1шт.

4

92261C1

HARNESS

- fuel tank, used with auxiliary tank

1шт.

5

REF

INSTRUCTION

SENDER - level, main fuel tank, See Figure 3-026

1шт.

7

REF

INSTRUCTION

LAMP ASSEMBLY - tail, See Figure 4-052

2шт.

8

REF

INSTRUCTION

LAMP ASSEMBLY - working flood, inner, See Figure 4-054

2шт.

9

REF

INSTRUCTION

LAMP ASSEMBLY - working flood, outer, See Figure 4-054

2шт.

10

102590A1

SUPPORT ASSY.

SUPPORT - auxiliary outlet, Replaces: P/N 96999C1

1шт.

11

1287737C1

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

BOLT - retaining, support

2шт.

12

825-1410

NUT,M10, Cl 8

2шт.

13

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, 8 mm - 1.25 x 20 mm

2шт.

14

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

M8 x 1.25", Flg, Cl 8

2шт.

15

362123R1

CLIP

- harness retaining

4шт.

16

97212C1

SCREW,Pan, #6 - 20 x 7/8"

- pan head cross slotted

4шт.

17

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 2 mm

2шт.

18

121646C1

TERMINAL CONNECTOR,Female

OUTLET male, seven terminal, mating part is P/N A136672

1шт.

141405C2

HARNESS

to adapt 7100 to 900 planter, 150" long, 141450C1 was 105" long

1шт.

1964768C1

HARNESS

adapter, marker voltage supply

1шт.
