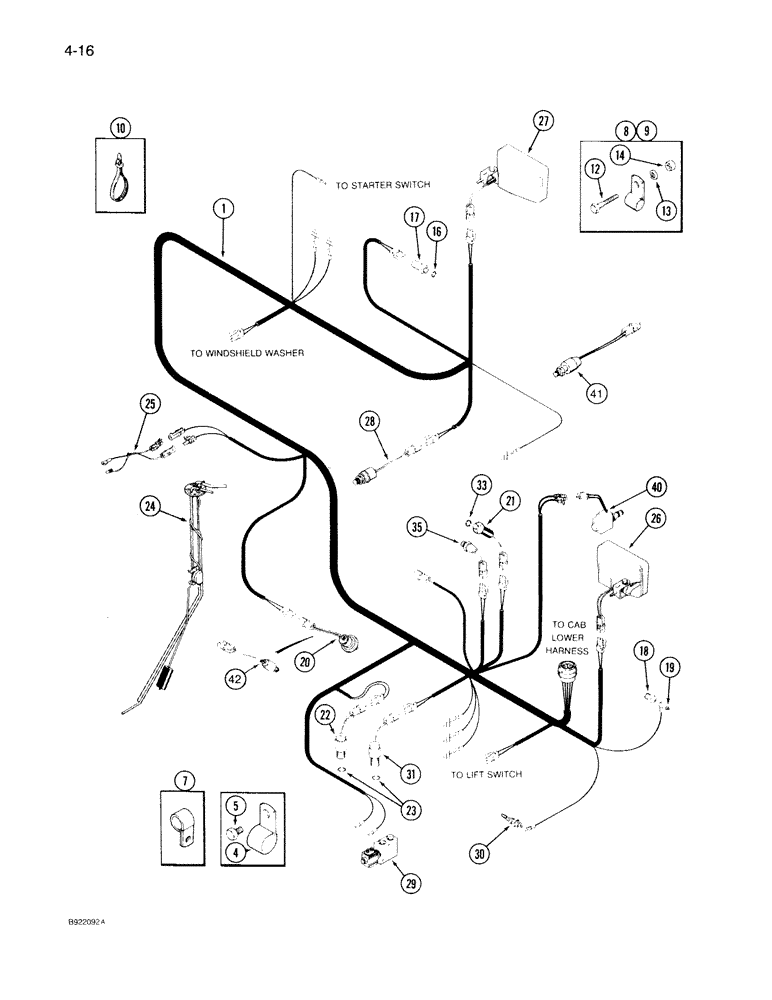

Запчасти Case IH 7140 (4-016) - TRANSMISSION HARNESS, TRANSMISSION S/N AJB0044915 AND AFTER (04) - ELECTRICAL SYSTEMS

1

1987426C2

HARNESS

- transmission speed and range

1шт.

4

S77322

CLAMP

- harness, closed, 12.7 mm ID

1шт.

5

814-10012

BOLT,Hex, M10 x 1.5 x 12mm, Cl 8.8, Full Thd

- hex, 10 x 12 mm

1шт.

7

49845

CLAMP

- harness, closed, 9.52 mm ID

1шт.

8

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- harness, closed, 6.35 mm ID

1шт.

9

49852

PTO SHAFT

- harness, closed, 9.52 mm ID

1шт.

10

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

12

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

1шт.

13

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

14

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

17

1983218C2

SWITCH

- neutral start, Replaces: P/N 92164C1, See Figure 6-064 or 6-084

1шт.

18

A176566

TRANSMITTER

SENDER - transmission oil temperature

1шт.

19

193-1000

NUT,Keps, w/LW,#10-32

- hex keps, No. 10-32

1шт.

20

1964550C3

BY-PASS VALVE

SENSOR - lube oil pressure, no longer available, Order: P/N 1546462C1 sensor, Ref. 42

1шт.

21

101813A1

PRESSURE SWITCH

SWITCH - transmission system pressure, Replaces: P/N 92013C2, mounts to PTO valve on Figure 8-012

1шт.

22

A186005

SENSOR

tractor speed

1шт.

23

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

2шт.

24

1987597C1

FUEL GAUGE

SENSOR - auxiliary fuel tank level, Replaces: P/N 1983368C1

1шт.

25

92261C1

HARNESS

- sensor, auxiliary fuel level

1шт.

26

REF

INSTRUCTION

LAMP ASSEMBLY - flood, lower front, right, See Figure 4-054

1шт.

27

REF

INSTRUCTION

LAMP ASSEMBLY - flood, lower front, left, See Figure 4-054

1шт.

28

1958159C2

SOLENOID VALVE

SOLENOID ASSEMBLY - drive, creeper

1шт.

29

REF

INSTRUCTION

VALVE ASSEMBLY - solenoid, MFD, See Figure 8-024

1шт.

30

REF

INSTRUCTION

SWITCH ASSEMBLY - filter pressure, See Figure 8-004 or 8-006

1шт.

31

A186004

SENSOR

engine rpm

1шт.

33

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

-014, 70 Duro, .489" ID x .070" Thk, If used

1шт.

35

1964698C3

SWITCH

- PTO neutral

1шт.

40

REF

INSTRUCTION

SOLENOID ASSEMBLY - differential lock, See Figure 8-018

1шт.

41

1546463C1

SWITCH, PRESSURE

SWITCH - pressure flow compensated, PFC, Replaces: P/N A187770 switch

1шт.

42

1546462C1

SENSOR

- lube oil pressure

1шт.

33

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, If used

1шт.

16

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
