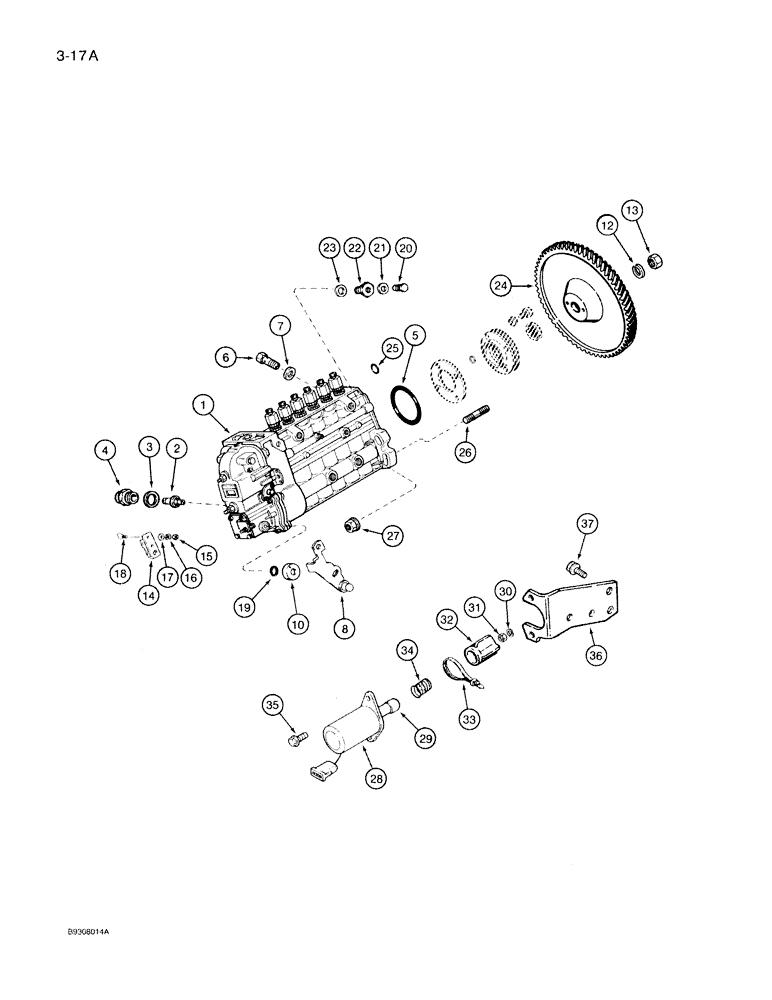

Запчасти Case IH 7140 (3-017A) - FUEL INJECTION PUMP AND DRIVE, 6TA-830 ENGINE, ENGINE S/N 44827419 AND AFTER (03) - FUEL SYSTEM

JC913338

PUMP

RETURN NUMBER use this part number to return pump core for credit when using a remanufactured assembly

1шт.

1

J926218

PUMP, FUEL INJECTION

PUMP ASSEMBLY fuel injection, new, Includes: Ref. 2-23

1шт.

1

JR926218

REMAN-INJECTION PUMP

Pump Assembly Injection, Remanufactured, component parts shown on this figure do not apply to the remanufactured assembly

1шт.

1

JC926218

CORE-INJECTION PUMP

Return Part Number, Injection Pump

1шт.

2

A77720

PIN

timing

1шт.

3

933222R1

SEALING WASHER,M18 x 22 x 1.5

Plug M18 x 22 x 1.5

1шт.

4

J912888

PLUG

timing

1шт.

5

A41856

O-RING,3mm Thk x 75mm ID

sealing

1шт.

6

J913681

BANJO BOLT

VALVE bolt, overflow

1шт.

7

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

Washer - Sealing, Special 14 x 20 x 1 mm

1шт.

8

J923230

LEVER

pump shutoff

1шт.

10

691292C1

RETAINER

HOUSING spring return

1шт.

12

J912897

LOCK WASHER

lock

1шт.

13

J912896

LOCK NUT

hex, lock

1шт.

14

1808728C1

LEVER

throttle control

1шт.

15

1806312C1

NUT

throttle lever

1шт.

16

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

17

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

18

1808822C1

THUMB SCREW,M6 x 26mm

BOLT throttle lever

1шт.

19

680187C1

O-RING,2.5mm Thk x 9mm ID

special sealing

1шт.

20

B41211

SCREW

vent

1шт.

21

757760R1

RING

packing

1шт.

22

J913320

SCREW

vent

1шт.

23

691273C1

GASKET,14.2mm ID x 19.9mm OD x 1.5mm Thk

vent screw

1шт.

24

J912615

GEAR

fuel pump

1шт.

25

J916284

O-RING

12.37 ID x 2.62 mm, fuel pump to gear housing

1шт.

26

J915036

STUD

pump mounting, 2-5/32 in, (55 mm)

4шт.

27

J902662

FLANGE NUT

hex flange, 10 mm

4шт.

28

J923257

SOLENOID

fuel shutoff, 12 volt, Includes: Ref. 29-34

1шт.

29

A77807

SET

KIT plunger, ball socket and clip

1шт.

30

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

31

425-154

JAM NUT,Jam, 1/4"-28, G5

hex, jam, 1/4 inch NF

1шт.

32

J925171

BOOT

protective, plunger

1шт.

33

473321C1

CABLE TIE,8" OAL x 0.098" W

STRAP, CABLE, .098" x 8"

1шт.

34

J923887

SPRING

return, plunger

1шт.

35

97006C1

BOLT,Hex, M6 x 20mm, Cl 8.8

- hex flange, 6 x 20 mm, special

2шт.

36

J923255

SUPPORT

BRACKET solenoid mounting

1шт.

37

854-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 10.9

- heavy hex flange, 10 - 1.5 x 20 mm, class 10.9

2шт.
