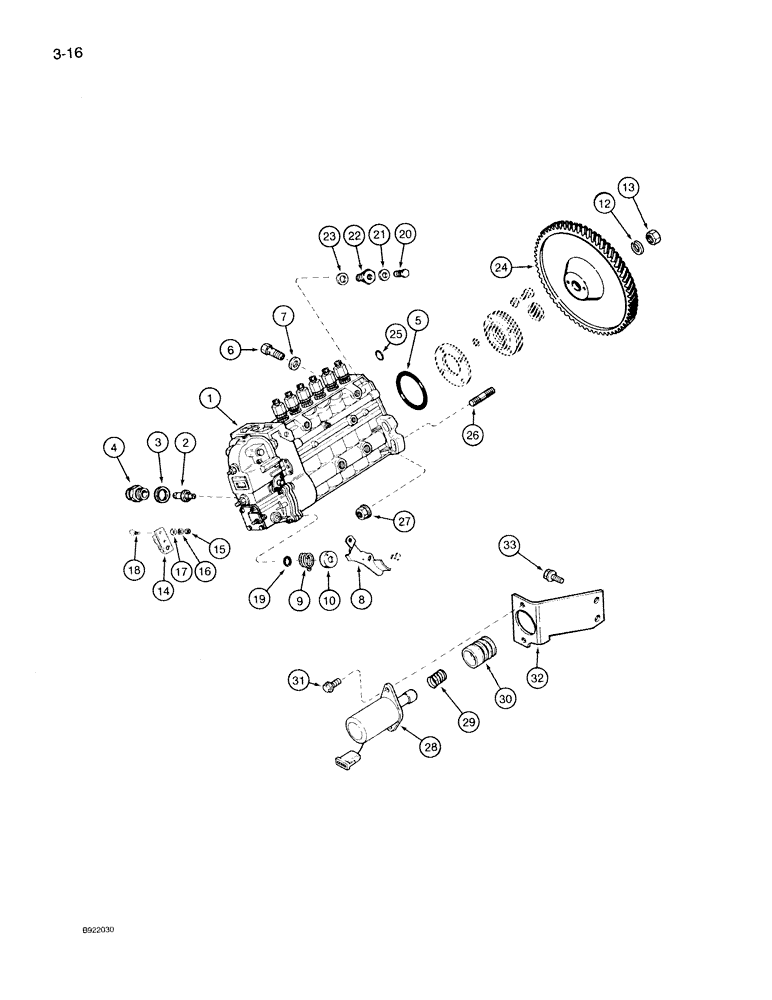

Запчасти Case IH 7140 (3-016) - FUEL INJECTION PUMP AND DRIVE, 6TA-830 ENGINE, PRIOR TO ENGINE S/N 44827419 (03) - FUEL SYSTEM

1

J915686

PUMP

ASSEMBLY fuel injection, new, Includes: Ref. 2-23

1шт.

1

JR915686

REMAN-INJECTION PUMP

PUMP ASSEMBLY injection, remanufactured, component parts shown on this figure do not apply to the remanufactured assembly

1шт.

1

JC915686

CORE-INJECTION PUMP

Return No, INJECTION PUMP

1шт.

JC913338

PUMP

RETURN NUMBER use this part number to return pump core for credit when using a remanufactured assembly

1шт.

2

A77720

PIN

timing

1шт.

3

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

Plug M18 x 24 x 1.5

1шт.

4

J912888

PLUG

timing

1шт.

5

A41856

O-RING,3mm Thk x 75mm ID

sealing

1шт.

6

J913681

BANJO BOLT

VALVE bolt, overflow

1шт.

7

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

Washer - Sealing, Special 14 x 20 x 1 mm

1шт.

8

J910979

LEVER

pump shutoff, Replaces: P/N J914094 lever

1шт.

9

J912890

SPRING

lever shutoff

1шт.

10

691292C1

RETAINER

HOUSING spring return

1шт.

12

J912897

LOCK WASHER

lock

1шт.

13

J912896

LOCK NUT

hex, lock

1шт.

14

1808728C1

LEVER

throttle control

1шт.

15

1806312C1

NUT

throttle lever

1шт.

16

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

17

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

18

1808822C1

THUMB SCREW,M6 x 26mm

BOLT throttle lever

1шт.

19

680187C1

O-RING,2.5mm Thk x 9mm ID

special sealing

1шт.

20

J913320

SCREW

vent

1шт.

21

691273C1

GASKET,14.2mm ID x 19.9mm OD x 1.5mm Thk

RING packing

1шт.

22

B41211

SCREW

vent

1шт.

23

757760R1

RING

GASKET vent screw

1шт.

24

J912615

GEAR

fuel pump

1шт.

25

J910502

O-RING

sealing, fuel pump to gear housing

1шт.

26

J915036

STUD

pump mounting, 2-5/32 in, (55 mm)

4шт.

27

J902662

FLANGE NUT

hex flange, 10 mm

4шт.

28

J921978

SOLENOID

fuel shutoff, 12 volt, Replaces: P/N J918600 solenoid, Includes: Ref. 29-30

1шт.

29

J921760

SPRING

return, plunger, Replaces: P/N A77702 spring

1шт.

30

J924912

BOOT

protective, plunger, Replaces: P/N A77681 boot

1шт.

31

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

2шт.

32

J916142

SUPPORT

BRACKET solenoid mounting

1шт.

33

854-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 10.9

- heavy hex flange, 10 - 1.5 x 20 mm, class 10.9

2шт.
