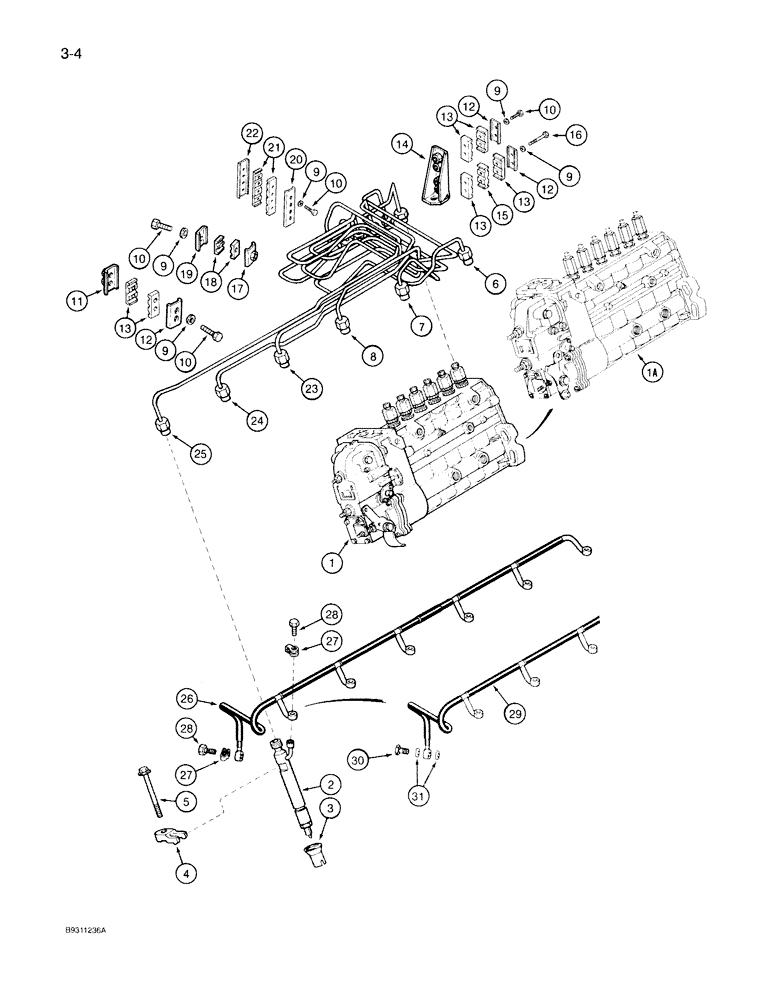

Запчасти Case IH 7140 (3-004) - FUEL INJECTION SYSTEM, 6TA-830 ENGINE, J915686 PUMP ASSEMBLY (03) - FUEL SYSTEM

1

J915686

PUMP

ASSEMBLY fuel injection, prior to Engine Serial Number 44827419, See Figure 3-016

1шт.

1a

J926218

PUMP, FUEL INJECTION

PUMP ASSEMBLY fuel injection, Engine Serial Number 44827419 and after, See Figure 3-017A

1шт.

1a

JR926218

REMAN-INJECTION PUMP

Remanufactured Injection Pump

1шт.

1a

JC926218

CORE-INJECTION PUMP

Return Part Number, Injection Pump

1шт.

2

REF

INSTRUCTION

INJECTOR ASSEMBLY fuel, See Figure 3-020

6шт.

3

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

SLEEVE injector

6шт.

4

J910279

CLAMP

injector

6шт.

5

845-8080

BOLT,Hvy Hex, M8 x 80mm, Cl 8.8

heavy hex flange, 8 - 1.25 x 80 mm

6шт.

6

J910749

FUEL TUBE,2 mm ID x 6.4 mm OD x 927.5 mm L

TUBE fuel, No. 1 cylinder

1шт.

7

J910750

FUEL TUBE,2 mm ID x 6.4 mm OD x 927.5 mm L

TUBE fuel, No. 2 cylinder

1шт.

8

J910751

FUEL TUBE,2 mm ID x 6.4 mm OD x 927.5 mm L

TUBE fuel, No. 3 cylinder

1шт.

9

J903723

WASHER

flat, special

11шт.

10

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, Hex Hd, M5 x .8 x 20, w/LW

9шт.

11

J917716

BRACE

supply tube

1шт.

12

J904519

SUPPORT

BRACE tube

3шт.

13

J917747

CLAMP

tube

6шт.

14

J917776

BRACE

BRACKET tube

1шт.

15

J917748

CLAMP

tube

1шт.

16

J917713

SCREW,Pan, #6 - 32 x 3/8", Gr 2

BOLT hex, special

2шт.

17

J917717

BRACE

tube

1шт.

18

J917746

CLAMP

fuel tube

2шт.

19

CURJ904711

CLAMP

BRACE supply tube

1шт.

20

J910686

BRACE

tube retaining

1шт.

21

J917749

CLAMP

tube

2шт.

22

J917740

BRACE

tube retaining

1шт.

23

J910752

FUEL TUBE,2 mm ID x 6.4 mm OD x 927.5 mm L

TUBE fuel, No. 4 cylinder

1шт.

24

J910753

FUEL TUBE,2 mm ID x 6.4 mm OD x 927.5 mm L

TUBE fuel, No. 5 cylinder

1шт.

25

J910754

FUEL TUBE

TUBE fuel, No. 6 cylinder

1шт.

26

J915695

MANIFOLD

fuel drain, prior to Engine S/N 44713107, no longer available, order Ref. 29-31, manifold, check valve, and washers on this figure, and Ref. 20, J918191 washers and Ref. 21A, J916361 banjo bolt on Figure 3-010

1шт.

27

J903380

SEAL

connector 6 used with Ref. 29, P/N J920595 manifold, 7 used with Ref. 26, P/N J915695 manifold

6-7шт.

28

J905307

BANJO BOLT,M6 x 1 x 14.30mm

BOLT, BANJO, , 6 used with Ref 29, P/N J920595 manifold, 7 used with Ref 26, P/N J915695 manifold M6 x 1 x 14.3

6-7шт.

29

J920595

TUBE ASSY.

MANIFOLD fuel drain, Engine Serial Number 44713107 and after

1шт.

30

J916360

VALVE

check

1шт.

31

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

banjo fitting, sealing

2шт.
