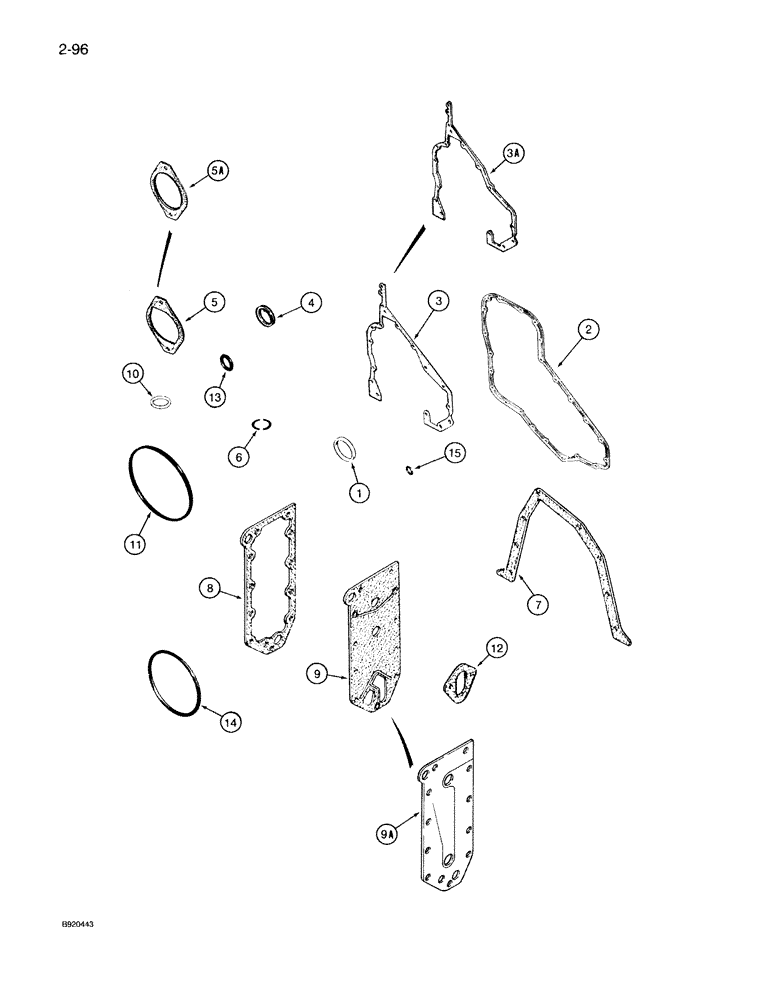

Запчасти Case IH 7140 (2-096) - CYLINDER BLOCK GASKET KITS, 6T-830 ENGINE, 6TA-830 ENGINE (02) - ENGINE

A77718

GASKET KIT

KIT gasket, cylinder block, Replaces: P/N A77631 kit, Includes: Ref. 1-15, prior to Engine Serial Number 44500128

1шт.

For complete engine overhaul order (1) valve grind kit, on Fig. 2-094, (1) cylinder block kit, (1) oil pan kit, on Fig. 2-048, front and rear crankshaft seal kit, on Fig. 2-084 and required cylinder head gasket, on Fig. 2-050.

1шт.

1

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

front access cover, prior to Engine Serial Number 44500128

1шт.

2

J917779

GASKET,0.98mm Thk

front gear cover, Replaces: P/N J913431 gasket, prior to Engine Serial Number 44500128

1шт.

3

J914303

SEAL

GASKET housing, gear, prior to Engine Serial Number 44500128

1шт.

4

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING quad, timing pin housing, Replaces: P/N J914092 ring, prior to Engine Serial Number 44500128

1шт.

5

J913288

SEAL

GASKET cover, plate, prior to Engine Serial Number 44500128

1шт.

6

J902089

SEAL,0.139" Thk x 3.859" ID, -241

O-RING sealing, water pump, prior to Engine Serial Number 44500128

1шт.

7

J914301

GASKET

rear retainer, crankshaft, prior to Engine Serial Number 44500128

1шт.

8

J918174

GASKET,0.71mm Thk

cooler core, Replaces: P/N J914307 gasket, prior to Engine Serial Number 44500128

1шт.

9

J914308

GASKET

filter head, prior to Engine Serial Number 44500128

1шт.

10

J901798

SEALING WASHER

WASHER sealing, prior to Engine Serial Number 44500128

1шт.

11

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

O-RING housing to block, not used in this application, prior to Engine Serial Number 44500128

1шт.

12

J914304

GASKET

mounting, fuel transfer pump, prior to Engine Serial Number 44500128

1шт.

13

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

Not used in this application, prior to Engine S/N 44500128 -212, 70 Duro, .859" ID x .139" Thk

1шт.

14

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

O-RING sleeve, piston, prior to Engine Serial Number 44500128

6шт.

15

J913994

O-RING

sealing, timing pin, prior to Engine Serial Number 44500128

1шт.

A77726

KIT

gasket, cylinder block, Includes: Ref. 1 - 15, Engine Serial Number 44500128 and after

1шт.

For complete engine overhaul order (1) valve grind kit, on Fig. 2-094, (1) cylinder block kit, (1) oil pan kit, on Fig. 2-048, front and rear crankshaft seal kit, on Fig. 2-084 and required cylinder head gasket, on Fig. 2-050.

1шт.

1

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

front access cover, Engine Serial Number 44500128 and after

1шт.

2

J917779

GASKET,0.98mm Thk

front gear cover, Engine Serial Number 44500128 and after

1шт.

2a

J917780

GASKET,0.98mm Thk

GASKET cover, gear, not used in this application, not shown, Engine Serial Number 44500128 and after

1шт.

3a

J281721

GASKET

housing, gear, Engine Serial Number 44500128 and after

1шт.

4

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING quad, timing pin housing, Engine Serial Number 44500128 and after

1шт.

5a

J919601

GASKET

cover, plate, Engine Serial Number 44500128 and after

1шт.

6

J902089

SEAL,0.139" Thk x 3.859" ID, -241

O-RING sealing, water pump, Engine Serial Number 44500128 and after

1шт.

7

J914301

GASKET

rear retainer, crankshaft, Engine Serial Number 44500128 and after

1шт.

8

J918174

GASKET,0.71mm Thk

cooler core, Engine Serial Number 44500128 and after

1шт.

9a

J918332

GASKET

filter head, Engine Serial Number 44500128 and after

1шт.

10

J901798

SEALING WASHER

WASHER sealing, not used in this application, Engine Serial Number 44500128 and after

1шт.

11

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

O-RING housing to block, not used in this application, Engine Serial Number 44500128 and after

1шт.

12

J914304

GASKET

mounting, fuel transfer pump, Engine Serial Number 44500128 and after

1шт.

13

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

Not used in this application, Engine S/N 44500128 and after -212, 70 Duro, .859" ID x .139" Thk

1шт.

14

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

O-RING sleeve, piston, Engine Serial Number 44500128 and after

6шт.

15

J913994

O-RING

sealing, timing pin, Engine Serial Number 44500128 and after

1шт.
