Запчасти Case IH 7140 (2-086) - FLYWHEEL AND HOUSING, 6T-830 ENGINE, 6TA-830 ENGINE (02) - ENGINE

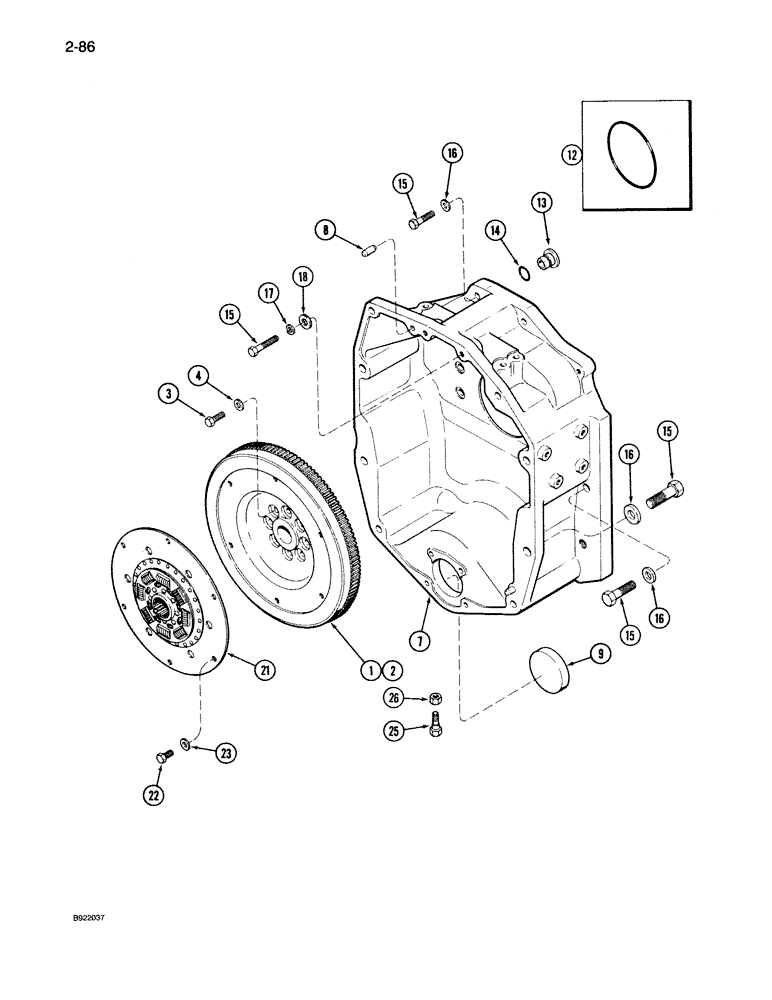

Схема запчастей Case IH 7140 - (2-086) - FLYWHEEL AND HOUSING, 6T-830 ENGINE, 6TA-830 ENGINE (02) - ENGINE
1
15
9
3
23
16
15
16
16
25
7
15
13
21
17
12
4
2
14
15
18
26
22
8

Артикул

Название

Примечание

Количество

1

J909939

FLYWHEEL

ASSEMBLY engine, Includes: Ref. 2

1шт.

2

J905031

GEAR

ring, flywheel

1шт.

3

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

BOLT hex, 12 x 32 mm

8шт.

4

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

flat, retaining

8шт.

7

119491A1

HOUSING

flywheel, Replaces: P/N 93283C2 and P/N 1349424C3 housing, Includes: Ref. 8

1шт.

8

375362R1

PIN,12.69mm OD x 34.8mm L

dowel, 1/2 x 1-3/8 inch

2шт.

9

93141C1

PLUG

cup use without MFD

1шт.

12

A157927

O-RING,0.21" Thk x 6.225" ID, -362, Cl 5, 75 Duro

flywheel housing if equipped

1шт.

13

J904470

PLUG

barring hole

1шт.

14

J904469

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

plug retaining

1шт.

15

828-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

hex, 12 - 1.75 x 50 mm, class 10.9, Flywheel housing into engine

12шт.

15

828-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

Flywheel housing to top of clutch housing Hex, M16 x 60, 10.9, Full Thd

1шт.

15

628-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

Flywheel housing to top of clutch housing Hex, M16 x 50, 10.9, Full Thd

1шт.

15

828-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

hex, 12 - 1.75 x 50 mm, class 10.9, Flywheel housing to bottom of clutch housing

2шт.

15

628-22065

BOLT,Hex, M22 x 2.5 x 65mm, Cl 10.9, Full Thd

hex, 22 - 2.5 x 65 mm, class 10.9, flywheel housing to side of clutch housing

2шт.

15

828-20070

BOLT,Hex, M20 x 2.5 x 70mm, Cl 10.9

- hex, 20 x 70 mm, class 10.9, Flywheel housing to center of side channel

2шт.

15

827-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

hex, 12 - 1.75 x 65 mm, class 10.9, Speed housing to top of flywheel housing

2шт.

16

A157918

WASHER

flat, hardened, 12 mm, flywheel housing into engine

10шт.

16

896-16016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

flat, 17.5 x 30 x 4 mm, hardened, flywheel housing to top of clutch housing, Replace: P/N 896-11016 washer

1шт.

16

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

flat, 13.5 x 28 x 4 mm, hardened, flywheel housing to bottom of clutch housing, Replaces: P/N 896-16012 washer

2шт.

16

1289123C1

WASHER

flat, hardened, 22 mm, flywheel housing to side of clutch housing

2шт.

16

A177650

WASHER

flat, hardened, 20 mm, flywheel housing to center of side channel

2шт.

16

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

flat, 13.5 x 28 x 4 mm, hardened, speed housing to top of flywheel housing, Replaces: P/N 896-16012 washer

2шт.

17

892-11012

LOCK WASHER,M12

WASHER, LOCK, , Flywheel Housing into Engine M12

2шт.

18

896-16012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

flat, 13.5 x 28 x 4 mm, hardened

4шт.

21

92590C2

CLUTCH DISC,354.25mm OD

drive

1шт.

21

92590C2R

REMAN-CLUTCH DISC

Drive

1шт.

21

92590C2C

CORE-CLUTCH DISC

Return Number

1шт.

22

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex, 12 - 1.75 x 25 mm

6шт.

23

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

Replaces P/N 896-12012 washer M13.5 x 24.5 x 3, HT

6шт.

25

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

hex, 12 - 1.75 x 40 mm, plug hole without MFD

2шт.

26

832-41312

NUT,M12 x 1.75, Cl 10

NUT hex, 12 mm, class 10.9, plug hole without MFD

2шт.

Выбрано товаров: 32
