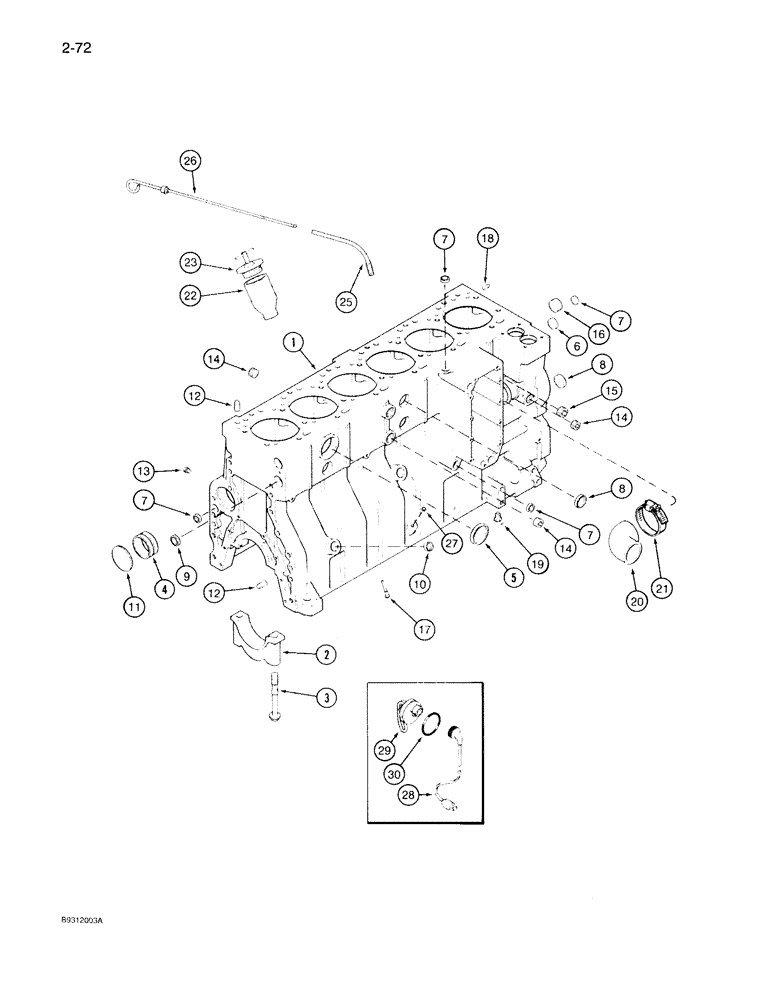

Запчасти Case IH 7140 (2-072) - CYLINDER BLOCK, 6TA-830 ENGINE, BLOCK W/6 PISTON COOLING NOZZLES, PRIOR TO ENGINE S/N 44487830 (02) - ENGINE

A174183

ENGINE

ASSEMBLY complete, 7140 Tractor

1шт.

P/N A174183 includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler & exhaust pipe, uses Ref. 1 sleeve & Ref. 3 piston, shown on Fig. 2-090, for service order P/N 1989099C2 basic engine shown on Fig. 2-080

1шт.

87448699

REMAN-SHORT ENGINE

Remanufactured, For N.A. Only nly

1шт.

6830SHBC

CORE-SHORT ENGINE

Return Number, Short Block, For N.A. Only

1шт.

JR913779

ENGINE, EXCHANGE

BLOCK ASSEMBLY short, engine, remanufactured, North America only, component parts shown on this figure do not apply to the remanufactured assembly

1шт.

P/N JR913779 is no longer available. For service order (1) JR921839 remanufactured short block, Figure 2-076, (1) JR921067 remanufactured oil pump and J918532 pressure regulator plunger, Figure 2-048, (14) J917728 bolts and (12) J917729 bolts, Figure 2-054

1шт.

JC913779

SKELETON ENGINE

RETURN NUMBER engine short block, use this part number to return block core for credit when using a remanufactured assembly

1шт.

A77670

CRANKCASE

BLOCK ASSEMBLY short, engine, new, includes stripped block, pistons, connecting rods & bearings, crankshaft & bearings, Includes: Ref. 1 thru 8

1шт.

P/N A77670 is no longer available. Order J921058 short block and A77716 kit, Figure 2-076, J921067 oil pump & J918532 plunger, Figure 2-048 and (14) J917728 bolts and (12) J917729 bolts, Figure 2-054

1шт.

JR911898

ENGINE, EXCHANGE

BLOCK ASSEMBLY cylinder, stripped, remanufactured, North America only, component parts shown on this figure do not apply to the remanufactured assembly

1шт.

JC911898

SKELETON ENGINE

RETURN NUMBER stripped block assembly, use this part number to return block core for credit when using a remanufactured assembly

1шт.

1

J911898

BASIC BLOCK

BLOCK ASSEMBLY cylinder, stripped, Includes: Ref. 2 thru 8

1шт.

P/N J911898 is no longer available. For service order (1) J920036 stripped block assembly and A77716 hardware kit, shown on Figure 2-076, J918213 oil pump and J918532 plunger, shown on Figure 2-048, (14) J917728 bolts and (12) J917729 bolts, shown on Figure 2-054

1шт.

2

J905397

CAP

bearing, main

7шт.

3

J906655

BOLT,Flng, M14 x 2 x 128.5mm, Cl 12.9

hex flange cap, main bearing, Serial Range: cap-block

14шт.

4

J901685

BUSHING

camshaft, See Figure 2-058, Ref. 6

7шт.

5

A77782

PLUG

expansion, 58 mm O.D., Replaces: P/N J900965 plug

1шт.

6

A77586

PLUG

expansion, 28.9 mm O.D.

1шт.

7

A77506

PLUG

- expansion, 21 mm O.D.

4шт.

8

J905401

PLUG

expansion, 35 mm O.D.

3шт.

J909415

KIT

block hardware, Includes: Ref. 9-19, no longer available, order component parts separately

1шт.

9

A77530

PLUG

expansion, 30 mm O.D.

2шт.

10

A77439

PLUG

expansion, 22 mm O.D.

1шт.

11

J901969

PLUG

expansion, 69 mm O.D.

1шт.

12

J901846

PIN,12.01mm OD x 24mm L

dowel

4шт.

13

J906619

PLUG,1/8" - 27

hex, 1/8 inch PT

6шт.

14

A77429

PLUG

hex socket, 1/2 inch PT

4шт.

15

A77505

PLUG

hex socket, 3/4 inch PT

2шт.

16

A77533

PLUG

hex socket, 1 inch PT

1шт.

17

J905928

NOZZLE INJECTION

NOZZLE cooling, piston

6шт.

18

J900257

PIN,10.01mm OD x 16mm L

dowel, 16 mm

2шт.

19

217-103

COCK, DRAIN

VALVE 1/4 inch PT

1шт.

20

J920762

ELBOW

HOSE elbow, water, Replaces: P/N J909389 hose

1шт.

21

J918521

HOSE CLAMP,59mm - 83mm

CLAMP hose, coolant, 1-13/16 - 2-3/4, Replaces: P/N 214-261 clamp

1шт.

22

J905408

TUBE,35.13 mm ID x 52.39 mm OD x 100 mm L

filler, oil

1шт.

23

A77424

FILLER CAP

CAP filler

1шт.

25

J905778

TUBE,9.52 mm OD x 184.8, 107.7 mm L

oil dipstick

1шт.

26

J908094

DIPSTICK

oil

1шт.

27

J900955

PLUG

10 mm, left hand or right hand dipstick hole, if used

1шт.

A77595

KIT

engine block heater, Includes: Ref. 28-30

1шт.

28

J905113

CABLE

heater, 6 feet

1шт.

29

NSS

NOT SOLD SEPARAT

ELEMENT heater, 120 volt, Incl in A77595

1шт.

30

J910517

O-RING

seal

1шт.
