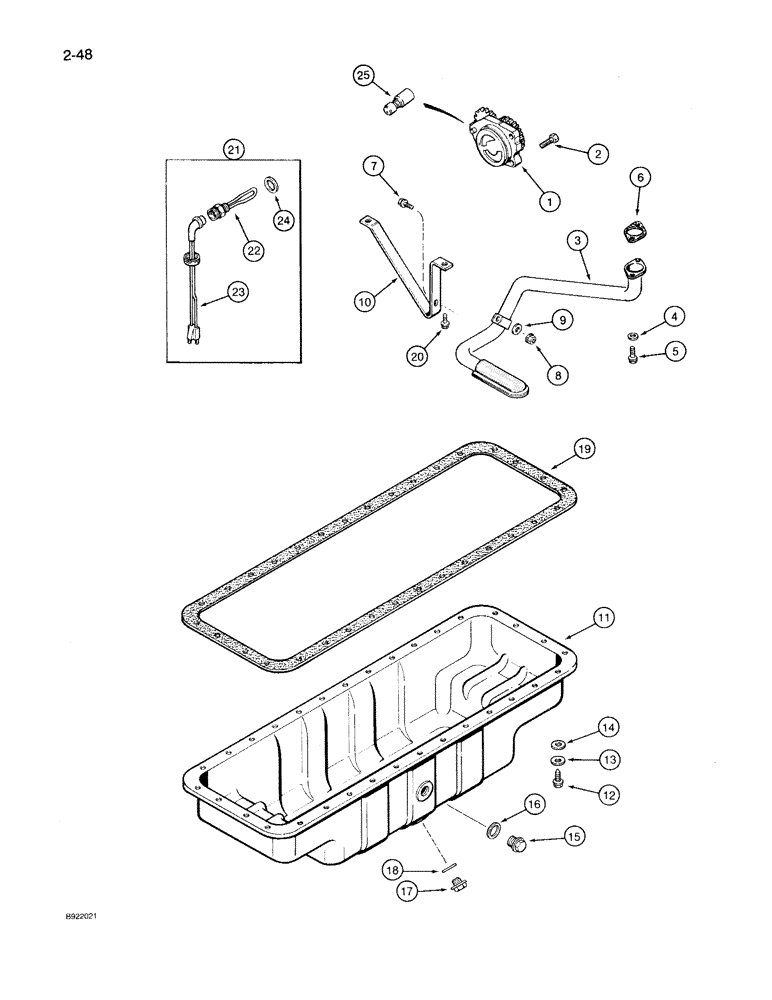

Запчасти Case IH 7140 (2-048) - OIL PUMP, PAN AND HEATER, 6T-830 ENGINE, 6TA-830 ENGINE (02) - ENGINE

1

J914007

PUMP, ENGINE OIL

PUMP ASSEMBLY oil, new, 28 tooth drive gear, used only on 6 piston cooling nozzle engine, prior to Engine Serial Number 44487830, no longer available, for service order P/N A77801 kit, below

1шт.

JR910066

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP PUMP ASSEMBLY oil, with 28 tooth drive gear, remanufactured, North America only, used only on 6 piston cooling nozzle engine, prior to Engine Serial Number 44487830

1шт.

JC910066

PUMP

RETURN NUMBER use this part number to return pump core for credit when using a remanufactured assembly, prior to Engine Serial Number 44487830

1шт.

1

J924644

PUMP, ENGINE OIL

PUMP ASSEMBLY engine oil, new, 24 tooth drive gear, Engine Serial Number 44487830 and after, Replaces: P/N J918213 and J921067 pump

1шт.

JR924644

PUMP

PUMP ASSEMBLY oil, with 24 tooth drive gear, remanufactured, North America only, Engine Serial Number 44487830 and after, replaces P/N JR921067 pump assembly

1шт.

JC924644

PUMP

RETURN NUMBER use this part number to return pump core for credit when using a remanufactured assembly, Engine Serial Number 44487830 and after, replaces P/N JC921067

1шт.

JR948071

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

JC948071

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

Part of Oil Pump and Pressure Regulator Valve Kit P/N A77801

1шт.

2

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

BOLT, HH, CL 8.8, M8 x 1.25 x 30

4шт.

3

J921719

TUBE

TUBE oil suction, with screen, Replaces: P/N J912228 tube

1шт.

4

J908738

SPACER

SPACER mounting

2шт.

5

845-6030

BOLT,Hvy Hex, M6 x 30mm, Cl 8.8

BOLT heavy hex flange, 6 - 1.00 x 30 mm

2шт.

6

J914302

GASKET

GASKET mounting, oil tube, Replaces: P/N J906202 gasket

1шт.

Part of Gasket Kit P/N A77679

1шт.

7

J901865

FLANGE BOLT,Hvy Hex, M6 x 20mm, Cl 8.8, Full Thd

BOLT hex flange, special

1шт.

8

J906216

FLANGE NUT

NUT hex flange, special, M6

1шт.

9

J910960

WASHER

WASHER flat, retaining

1шт.

10

J913427

BRACE

BRACE suction tube, Replaces: P/N J910785 brace

1шт.

11

J914015

ENGINE OIL PAN

PAN oil, engine, Replaces: P/N J912003 pan

1шт.

12

J907860

FLANGE BOLT,Hex, M8 x 25mm, Spcl

BOLT, Hex, Flg Hd, M8 x 25, Spcl

32шт.

13

J910266

LOCK WASHER

WASHER spring, Belleville

32шт.

14

J908316

WASHER

WASHER flat, M9 x 16 x 1

32шт.

15

J924148

PLUG,M22 x 1.5

PLUG oil, heater hole, Replaces: P/N J904386 plug

1шт.

16

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER sealing

1шт.

Part of Gasket Kit P/N A77679

1шт.

17

J924147

PLUG,M18 x 1.5

PLUG drain, oil, magnetic, Replaces: P/N J911638 plug

1шт.

18

J920773

SEALING WASHER

WASHER sealing

1шт.

Part of Gasket Kit P/N A77679

1шт.

19

NSS

NOT SOLD SEPARAT

GASKET pan, oil

1шт.

Part of Gasket Kit P/N A77679

1шт.

20

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

BOLT, Hex Flg, M6 x 15, 8.8, Full Thd

2шт.

21

A77580

SERVICE KIT

KIT heater, oil pan, also Order: Ref. 24, P/N J902425 washer, Includes: Ref. 22-23

1шт.

22

NSS

NOT SOLD SEPARAT

ELEMENT heater, 120 volt

1шт.

23

J905113

CABLE

CABLE heater, 6 foot

1шт.

24

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER sealing

1шт.

25

J918532

PLUNGER

PLUNGER pressure regulator, use with Ref. 1, P/N J921067 pump on engine prior to Serial Number 44487830

1шт.

Part of Oil Pump and Pressure Regulator Valve Kit P/N A77801

1шт.

A77679

GASKET KIT

KIT gasket, oil pan, Includes Ref. 6, 16, 18 and 19.

1шт.

A77801

PACKAGE

KIT oil pump and pressure regulator valve, Includes Ref. 1, J921067 pump assembly and Ref. 25, P/N J918532 plunger, use to replace oil pump on engines prior to Engine S/N 44487830.

1шт.
