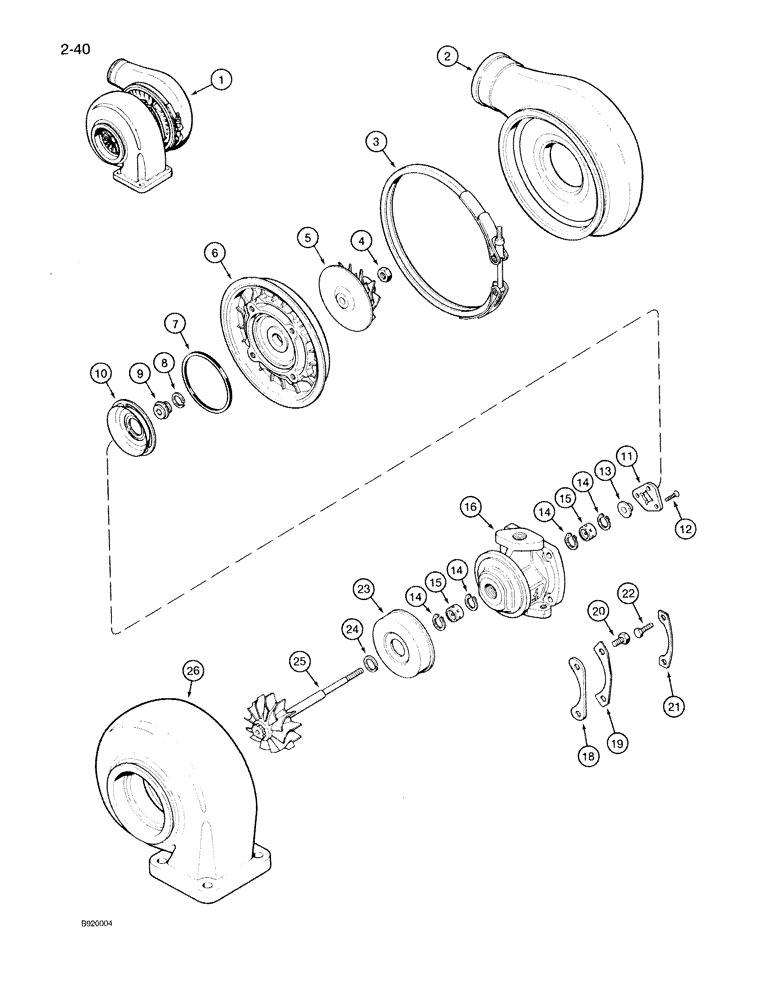

Запчасти Case IH 7140 (2-040) - TURBOCHARGER ASSEMBLY, 6T-830 ENGINE, 6TA-830 ENGINE (02) - ENGINE

1

J909308

TURBOCHARGER

TURBOCHARGER ASSEMBLY engine, new, 7130 and 7140 tractor, 1/4 inch PT port in bearing housing for oil inlet, no longer available, for service order J919199 turbocharger, plus (1) J919687 adapter, Ref. 32, Figure 2-036 or Ref. 31, Figure 2-038

1шт.

1

JR909308

TURBOCHARGER

Turbocharger Assembly Engine, remanufactured, 7130 and 7140 tractors only, component parts shown on this figure do not apply to the remanufactured assembly

1шт.

1

JC909308

TURBOCHARGER

Return Part Number, use this part number to return turbocharger core for credit when using a remanufactured assembly, 7130 and 7140 tractors only

1шт.

1

JR920984

REMAN-TURBOCHARGER

Turbocharger Assembly Engine, remanufactured, 7150 tractor only, component parts shown on this figure do not apply to the remanufactured assembly

1шт.

1

JC920984

CORE-TURBOCHARGER

Return Part Number, use this part number to return turbocharger core for credit when using a remanufactured assembly, 7150 tractor only

1шт.

1

J919199

TURBOCHARGER

TURBOCHARGER ASSEMBLY engine, new, 7130 and 7140 tractor, 12 mm straight thread port in bearing housing for oil inlet, Includes: Ref. 2-26

1шт.

1

JR802303

REMAN-TURBOCHARGER

7130, 7140

1шт.

1

JC528777

CORE-TURBOCHARGER

Return Part Number

1шт.

1

J533740

TURBOCHARGER

TURBOCHARGER ASSEMBLY engine, new, 7150 tractor, 12 mm straight thread port in bearing housing for oil inlet, Replaces: J920984 turbocharger assembly, Includes: Ref. 2-26

1шт.

1

JR802587

REMAN-TURBOCHARGER

Remanufactured Turbocharger

1шт.

1

JC533972

CORE-TURBOCHARGER

Return Part Number

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING compressor

1шт.

3

NSS

NOT SOLD SEPARAT

CLAMP housing

1шт.

4

NSS

NOT SOLD SEPARAT

NUT hex, lock

1шт.

Part of turbocharger overhaul kit P/N J904772.

1шт.

5

NSS

NOT SOLD SEPARAT

ROTOR turbocharger

1шт.

6

NSS

NOT SOLD SEPARAT

DIFFUSER compressor

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL diffuser

1шт.

Part of turbocharger overhaul kit P/N J904772.

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL split ring, oil slinger

1шт.

Part of turbocharger overhaul kit P/N J904772.

1шт.

9

NSS

NOT SOLD SEPARAT

SLINGER oil

1шт.

10

NSS

NOT SOLD SEPARAT

BAFFLE oil

1шт.

11

NSS

NOT SOLD SEPARAT

BEARING thrust

1шт.

Part of turbocharger overhaul kit P/N J904772.

1шт.

12

NSS

NOT SOLD SEPARAT

SCREW flat head slotted

3шт.

Part of turbocharger overhaul kit P/N J904772.

1шт.

13

NSS

NOT SOLD SEPARAT

COLLAR thrust

1шт.

14

NSS

NOT SOLD SEPARAT

RING snap, bearing retaining

4шт.

Part of turbocharger overhaul kit P/N J904772.

1шт.

15

NSS

NOT SOLD SEPARAT

BEARING shaft, impeller

2шт.

Part of turbocharger overhaul kit P/N J904772.

1шт.

16

NSS

NOT SOLD SEPARAT

HOUSING bearing, turbine

1шт.

18

NSS

NOT SOLD SEPARAT

PLATE clamping, turbine housing

2шт.

19

NSS

NOT SOLD SEPARAT

PLATE lock, turbine housing

2шт.

Part of turbocharger overhaul kit P/N J904772.

1шт.

20

NSS

NOT SOLD SEPARAT

BOLT hex, retainer

4шт.

Part of turbocharger overhaul kit P/N J904772.

1шт.

21

NSS

NOT SOLD SEPARAT

PLATE lock, turbine

2шт.

Part of turbocharger overhaul kit P/N J904772.

1шт.

22

NSS

NOT SOLD SEPARAT

BOLT ASSEMBLY hex, lock, includes washer

4шт.

Part of turbocharger overhaul kit P/N J904772.

1шт.

23

NSS

NOT SOLD SEPARAT

SHIELD heat, turbine

1шт.

24

NSS

NOT SOLD SEPARAT

SEAL ring, turbine

1шт.

Part of turbocharger overhaul kit P/N J904772.

1шт.

25

NSS

NOT SOLD SEPARAT

ROTOR turbocharger

1шт.

26

NSS

NOT SOLD SEPARAT

HOUSING turbocharger

1шт.

J904772

PACKAGE, REPAIR

KIT overhaul, turbocharger, Includes: Refs. 4, 7, 8, 11, 12, 14, 15, 19 - 22 and 24

1шт.
