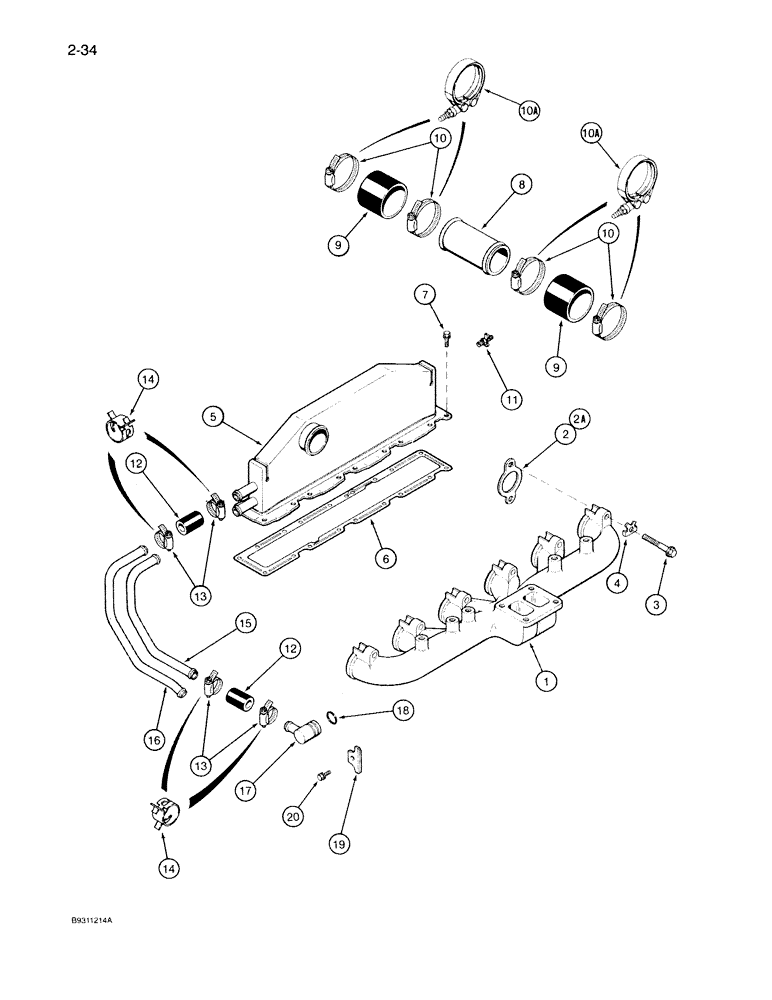

Запчасти Case IH 7140 (2-034) - MANIFOLDS, 6TA-830 ENGINE (02) - ENGINE

1

J906720

MANIFOLD

exhaust

1шт.

2

J911942

GASKET

manifold, exhaust, 1.27 - 1.4 mm thick, no longer used, Order: Ref. 2A, P/N J921787 gasket

6шт.

2a

J921787

GASKET

manifold, exhaust, 1.0 mm thick

6шт.

3

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

hex, 10 - 1.50 x 70 mm, exhaust

12шт.

4

J914708

LOCKING PLATE

PLATE locking, manifold bolt, exhaust

12шт.

5

J914501

COOLER

AFTERCOOLER intake

1шт.

6

J914311

MANIFOLD GASKET

intake manifold cover, aftercooler

1шт.

7

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

SCREW, , Intake manifold cover to cylinder head, aftercooler Hex Flg Hd, M8 x 1.25 x 25

18шт.

8

J914943

TUBE,63.5 mm OD x 140 mm L

air, crossover, intake aftercooler

1шт.

9

J916529

TRANSMISSION SLEEVE

HOSE crossover tube, intake aftercooler

2шт.

10

214-261

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP adj, 2-1/16 - 3 inch dia, no longer used, Order: Ref. 10A, P/N J923580 clamp, intake aftercooler

4шт.

10a

J923580

CLAMP

adjustable, hose retaining, Replaces: P/N 214-261 clamp, intake aftercooler

4шт.

11

J909394

COCK, DRAIN

VALVE drain, air bleed, intake aftercooler

1шт.

12

J918611

HOSE,18.50 mm ID x 63.00 mm

Supply Tube to Aftercooler, Replaces: P/N J917791 Hose, Intake 18.50 mm ID x 63.00 mm

4шт.

13

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP adj, 11/16 - 1-1/4 inch dia, hose retaining, if used, intake aftercooler

8шт.

14

J918163

CLIP

CLAMP hose retaining, if used, intake aftercooler

8шт.

15

J906436

TUBE,19.05 mm OD x 385.3 mm L

water inlet, intake aftercooler

1шт.

16

J908402

TUBE,19.05 mm OD

water outlet, intake aftercooler

1шт.

17

J917394

ELBOW

CONNECTOR water transfer, intake aftercooler

1шт.

18

238-5120

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

Connector to block, intake aftercooler -120, 70 Duro, .987" ID x .103" Thk

2шт.

19

J906439

PLATE

mounting, intake aftercooler

1шт.

20

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, 8 mm-1.25 x 16 mm, Intake aftercooler

1шт.
