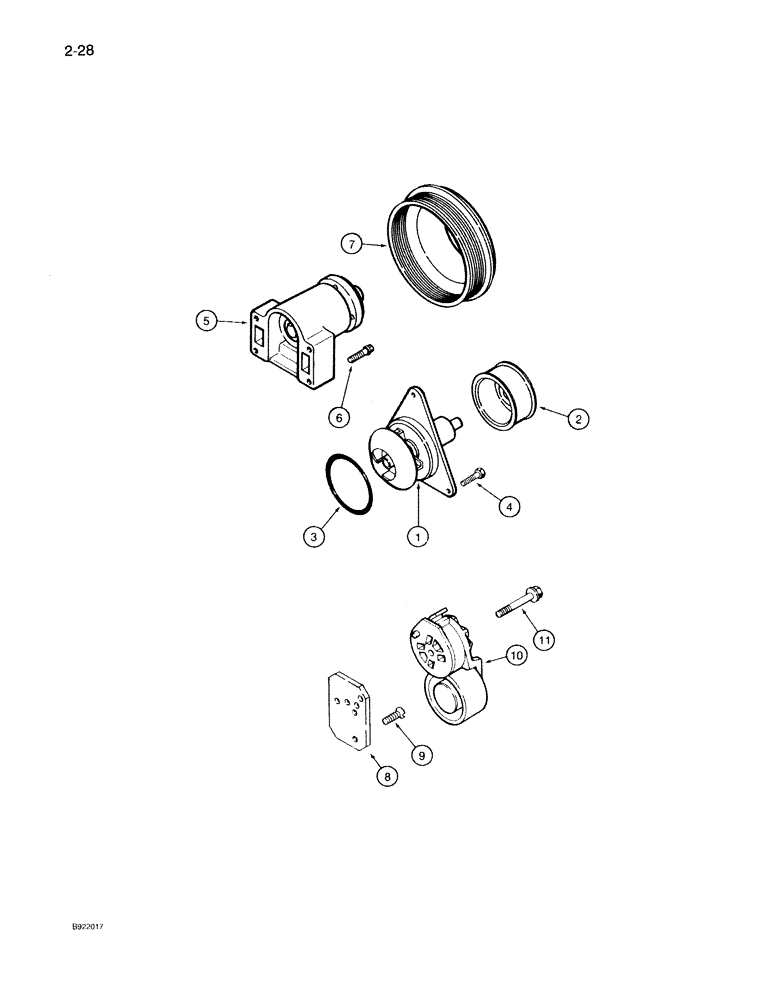

Запчасти Case IH 7140 (2-028) - WATER PUMP SYSTEM, 6T-830 ENGINE, 6TA-830 ENGINE (02) - ENGINE

AR77704

PUMP, WATER

PUMP water, remanufactured, North America only, component parts shown on this figure do not apply to the remanufactured assembly, Replaces: P/N AR77579

1шт.

The water pump remanufacture program is not available at this time, Order: P/N A77704 water pump.

1шт.

J800976R

REMAN-WATER PUMP

7130, 7140, Both (10/87-12/93), 7150 (11/91-12/93), All 6T-830 ENGINE, 6TA-830 ENGINE, Reman for New P/N AR77704

1шт.

J800976C

CORE-WATER PUMP

Return Number

1шт.

AC77704

CORE-HYDRAULIC PUMP

RETURN NUMBER use this P/N to return pump core for credit when using a remanufactured assembly, Replaces: P/N AC77579 return number

1шт.

The water pump remanufacture program is not available at this time, Order: P/N A77704 water pump.

1шт.

A77704

PUMP, WATER

KIT water pump, Includes: Ref. 1-3

1шт.

J800976R

REMAN-WATER PUMP

7130, 7140, Both (10/87-12/93), 7150 (11/91-12/93), All 6T-830 ENGINE, 6TA-830 ENGINE, Reman for New P/N A77704

1шт.

J800976C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

PUMP water

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY pump

1шт.

3

J902089

SEAL,0.139" Thk x 3.859" ID, -241

O-RING sealing, pump

1шт.

4

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

3шт.

5

J910738

SUPPORT ASSY.

SUPPORT fan

1шт.

100-21250

SNAP RING,2.50", Int, #250

Ring, Snap, 2.50", Int, #250

1шт.

J910739

BALL BEARING,35mm ID x 64mm OD x 37mm W

BEARING

1шт.

J907769

BOLT,Hex, M10 x 70mm, Cl 12.9

SCREW

1шт.

6

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

heavy hex flange, 8 - 1.25 x 50 mm

4шт.

7

J914462

PULLEY,163mm OD

fan

1шт.

8

J911473

BRACKET

mounting, tensioner

1шт.

Install Ref 10, belt tensioner, in inner set of holes of Ref 8, mounting bracket

1шт.

9

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

- flat head cap, 8 x 25 mm, mounting bracket to cylinder head

2шт.

10

J918944

BELT TENSIONER

TENSIONER belt, Replaces: P/N J912246 and P/N J914086 tensioner

1шт.

Install Ref 10, belt tensioner, in inner set of holes of Ref 8, mounting bracket

1шт.

11

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

heavy hex flange, 10 - 1.5 x 75 mm, class 10.9, Replaces: P/N 854-10070 bolt

1шт.
