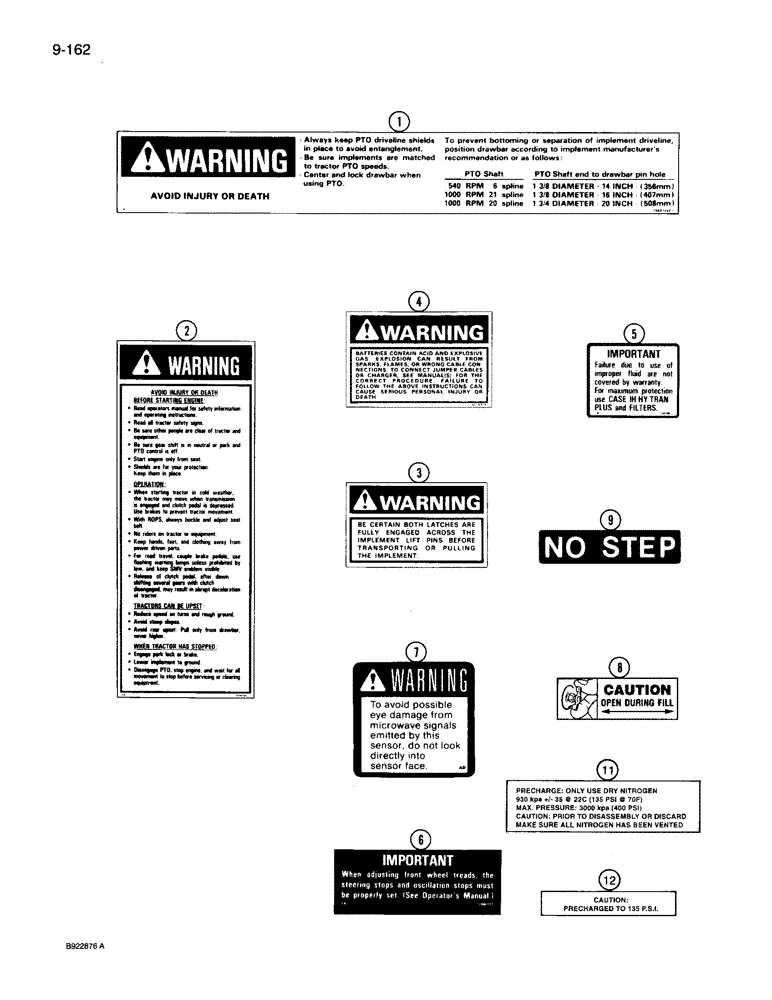

Запчасти Case IH 7140 (9-162) - DECALS, SAFETY AND INSTRUCTION (09) - CHASSIS/ATTACHMENTS

1

1960744C2

DECAL

- Warning, Avoid injury or death, always keep PTO driveline shields in place

1шт.

1

1974530C1

PRODUCT GRAPHIC

DECAL - Warning, Avoid injury or death, always keep PTO driveline shields in place French

1шт.

2

1968056C2

DECAL

- Warning, Before starting engine, general instructions

1шт.

2

1974538C1

DECAL

- Warning, Before starting engine, general instructions French

1шт.

3

321-3339

DECAL

- Warning, Be certain both latches are fully engaged, implement lift pins

1шт.

3

1974537C1

DECAL

- Warning, Be certain both latches are fully engaged, implement lift pins French

1шт.

4

321-6714

DECAL

- Warning, Batteries contain acid and explosive gas

1шт.

4

321-6806

DECAL

- Warning, Batteries contain acid and explosive gas French

1шт.

5

1334594C2

DECAL

- Important, Failure due to use of improper fluid, hydraulic fluid warranty

1шт.

5

1334596C2

DECAL

- Important, Failure due to use of improper fluid, hydraulic fluid warranty French

1шт.

6

1334627C2

DECAL

- Important, When adjusting front wheel treads, MFD steering

1шт.

6

1974531C1

DECAL

- Important, When adjusting front wheel treads, MFD steering French

1шт.

7

A187743

WARNING DECAL

DECAL - Warning, To avoid possible eye damage, microwave signals

1шт.

7

A187756

DECAL

- Warning, To avoid possible eye damage, microwave signals French

1шт.

8

J910778

DECAL

- Caution, Open During Fill if equipped

1шт.

8

1974544C1

DECAL

- Caution, Open During Fill French if equipped

1шт.

9

1968008C1

DECAL

- No Step if equipped

1шт.

9

1974542C1

DECAL

- No Step French if equipped

1шт.

11

1342629C2

DECAL

- Precharge; Only use dry nitrogen

2шт.

12

1342630C2

DECAL

- Caution, Precharged to 135 psi

2шт.
