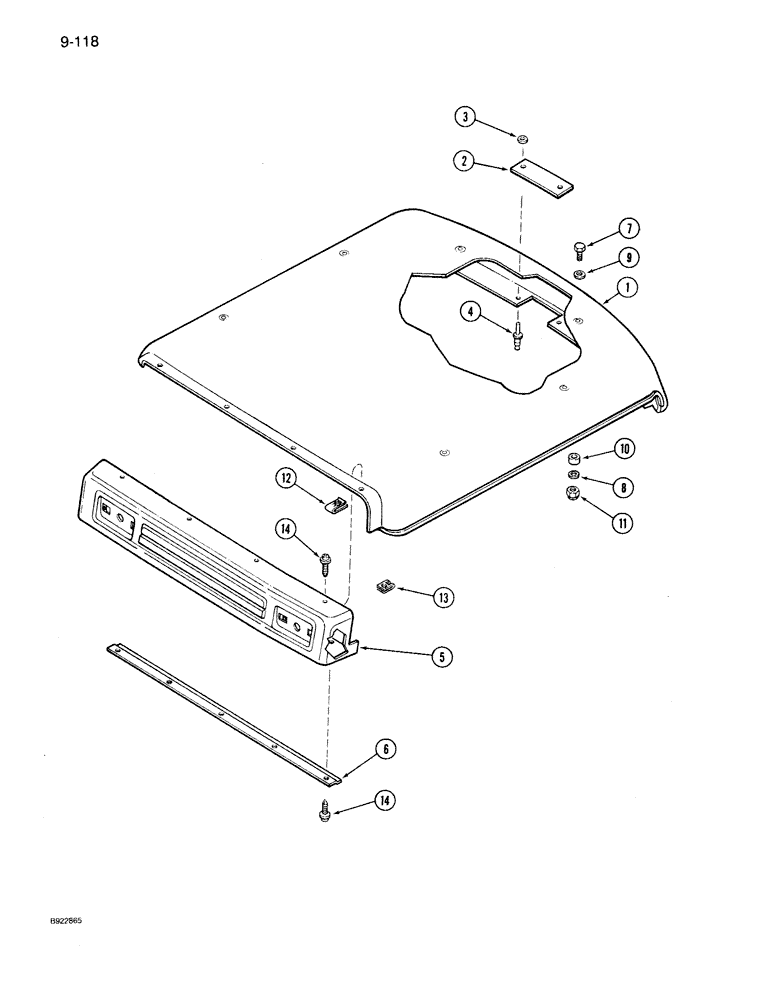

Запчасти Case IH 7140 (9-118) - FOUR POST ROPS ROOF CAP (09) - CHASSIS/ATTACHMENTS

1

1975901C3

ROOF

ASSEMBLY ROPS frame

1шт.

2

1977578C2

PANEL

- filler, roof cap

1шт.

3

16547R1

WASHER,0.2" ID x 0.5" OD x 0.04" Thk

- flat, 13/64 x 1/2 x 3/64 inch

2шт.

4

104804C1

RIVET,Pop, 3/16" x .575"

- mandrel 5 x 15 mm, aluminum

2шт.

5

1975906C1

COVER ASSY

COVER - rear, roof

1шт.

6

1977384C1

ANGLE

- support, headliner rear

1шт.

8

495-21031

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

12шт.

9

96814C3

WASHER,10mm ID x 22.25mm OD x 2.25mm Thk

- flat, sector

6шт.

10

97105C2

SPACER

- roof mounting

6шт.

11

231-4144

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

6шт.

12

1975905C1

NUT

- retainer, U-type

4шт.

13

96900C1

SPRING NUT,U, #10-16, Panel type

Speed U, #10-16, Panel type

5шт.

14

104033C2

SELF-TAP SCREW,Truss HD, #10 - 16 x 3/4"

SCREW - cross slot truss head, polyseal

9шт.

7

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

6шт.
