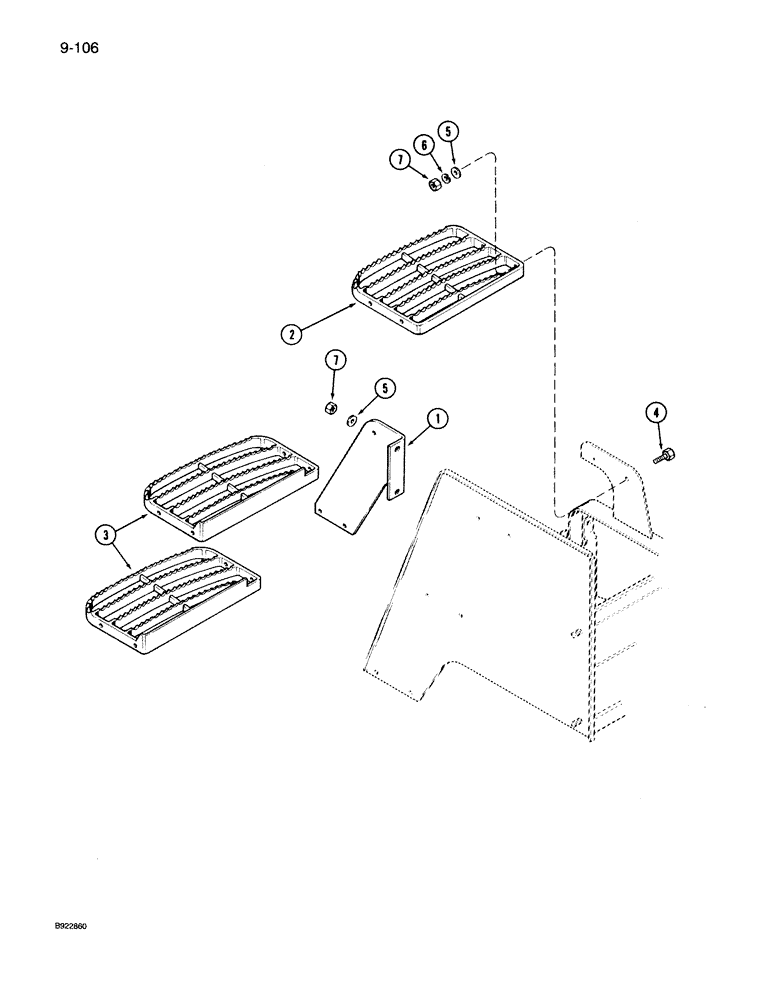

Запчасти Case IH 7140 (9-106) - STEPS (09) - CHASSIS/ATTACHMENTS

1

96639C1

SUPPORT ASSY.

SUPPORT - step

1шт.

2

97049C3

STEP

- tractor, top, Replaces: 97049C2

1шт.

3

97050C3

STEP

- tractor, intermediate and lower, Replaces: 97050C2

2шт.

4

1348398C1

BOLT

- hex, 10 x 30 mm

12шт.

5

195-131

WASHER

- flat, 7/16 x 1 x 5/64 inch If equipped

14шт.

7

1348399C1

FLANGE NUT

- hex flange lock, 10 mm

14шт.

3164622R1

LOCK NUT

LOCKNUT

1шт.

198841A1

STEP

bolt on, for 7100 and 7200, bolts on side to enable washing of window

1шт.
