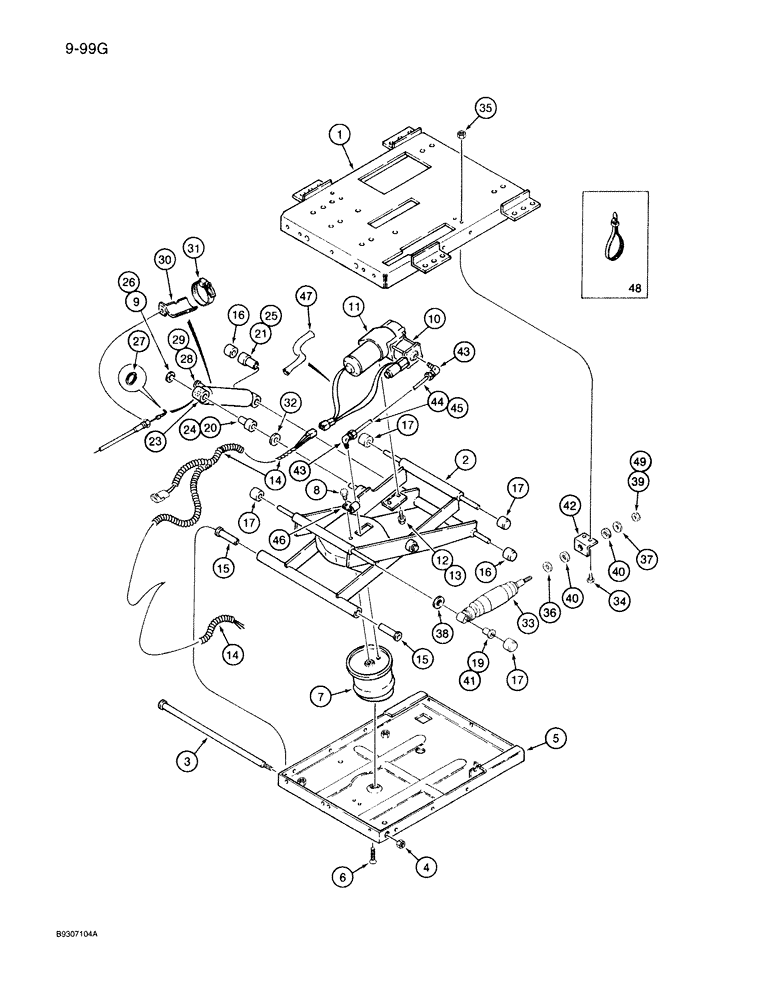

Запчасти Case IH 7140 (9-099G) - DELUXE AIR SUSPENSION SEAT, SUSPENSION (09) - CHASSIS/ATTACHMENTS

1999936C1

SEAT ASSY.

SEAT ASSEMBLY deluxe suspension, Includes: service suspension kit and Ref. 1 thru 49 in this figure and parts in Figures 9-099A, 9-099C and 9-099L

1шт.

132861A1

SUPPORT ASSY.

KIT suspension, service, Includes: Refs. 1-49 in this figure and parts in Figures 9-099C and 9-099L

1шт.

1

1990642C1

HOUSING

- upper

1шт.

2

132862A1

DIPPER

ARM - suspension

1шт.

3

A49529

SHAFT

- bearing tube

1шт.

4

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

1шт.

5

1981834C1

HOUSING

- lower

1шт.

6

443-13812

SCREW,Cross Flat Hd, 3/8"-16 x 3/4"

- machine, flat head cross recess, 3/8 NC x 3/4"

1шт.

7

1981842C1

SPRING

- air

1шт.

8

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

1шт.

9

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, Push, 1/2"

1шт.

132864A1

KIT

- compressor, Includes: Refs. 10-12

1шт.

10

NSS

NOT SOLD SEPARAT

COMPRESSOR - air

1шт.

11

NSS

NOT SOLD SEPARAT

BRACKET - compressor mounting

1шт.

12

NSS

NOT SOLD SEPARAT

SCREW - special

2шт.

13

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

14

132867A1

HARNESS

- wire

1шт.

1990644C2

PACKAGE

KIT - rollers and bearings, Includes: Refs. 15-22

1шт.

15

NSS

NOT SOLD SEPARAT

BUSHING - shaft

2шт.

16

NSS

NOT SOLD SEPARAT

ROLLER - suspension

2шт.

17

NSS

NOT SOLD SEPARAT

ROLLER - bearing

4шт.

18

NSS

NOT SOLD SEPARAT

BEARING - isolator latch tube, not shown, see Ref. 7 in Figure 9-099L for bearing

1шт.

19

NSS

NOT SOLD SEPARAT

BEARING - fore/aft shock

1шт.

20

NSS

NOT SOLD SEPARAT

BEARING - suspension shock, upper

1шт.

21

NSS

NOT SOLD SEPARAT

BEARING - suspension shock, lower

1шт.

22

NSS

NOT SOLD SEPARAT

BEARING - latch bar, not used, not shown

1шт.

132866A1

SHOCK ABSORBER

KIT - shock absorber, suspension, Includes: Refs. 23-31

1шт.

23

NSS

NOT SOLD SEPARAT

ABSORBER - shock

1шт.

24

NSS

NOT SOLD SEPARAT

BEARING - suspension shock, upper

1шт.

25

NSS

NOT SOLD SEPARAT

BEARING - suspension shock, lower

1шт.

26

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, Push, 1/2"

1шт.

27

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

28

138-317

LOCK PIN,1/8" x 5/8", Slotted

PIN, 1/8" x 5/8", Slotted

1шт.

29

NSS

NOT SOLD SEPARAT

ARM - actuator

1шт.

30

134145A1

SUPPORT

BRACKET - cable control

1шт.

31

NSS

NOT SOLD SEPARAT

CLAMP - shock

1шт.

32

A45519

WASHER

- plastic

1шт.

1990646C3

PACKAGE

KIT - shock, fore/aft, Includes: Ref. 33 thru 41

1шт.

33

NSS

NOT SOLD SEPARAT

SHOCK - fore/aft

1шт.

34

434-48

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1/2", Gr 5

Bolt, Carriage, Short NK, 1/4"-20 x 1/2", G5, Full Thd

2шт.

35

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

2шт.

36

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

37

A49678

WASHER

- flat, 21/64 x 1 x 5/64 inch

1шт.

38

NSS

NOT SOLD SEPARAT

SPACER - shock

1шт.

39

131-1169

LOCK NUT,5/16"-24, GA

NUT, LOCK, 5/16"-24, GA

1шт.

40

A49679

BUSHING

- rubber

2шт.

41

NSS

NOT SOLD SEPARAT

BEARING - fore/aft shock

1шт.

42

1981845C1

ANGLE

BRACKET - angle, shock mounting

1шт.

132871A1

SET OF PARTS

KIT - fitting, Includes: Ref. 43 thru 46

1шт.

43

NSS

NOT SOLD SEPARAT

ELBOW - 90°, compression

2шт.

44

NSS

NOT SOLD SEPARAT

TUBE - nylon

1шт.

45

F63329

STRAP

- cable tie

2шт.

46

NSS

NOT SOLD SEPARAT

CLAMP - J-type

1шт.

47

135536A1

TUBE

GUARD - wire, 419 mm long, Serial Range: cut-fit

1шт.

48

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

3шт.

49

131-1169

LOCK NUT,5/16"-24, GA

NUT, LOCK, 5/16"-24, GA

1шт.
