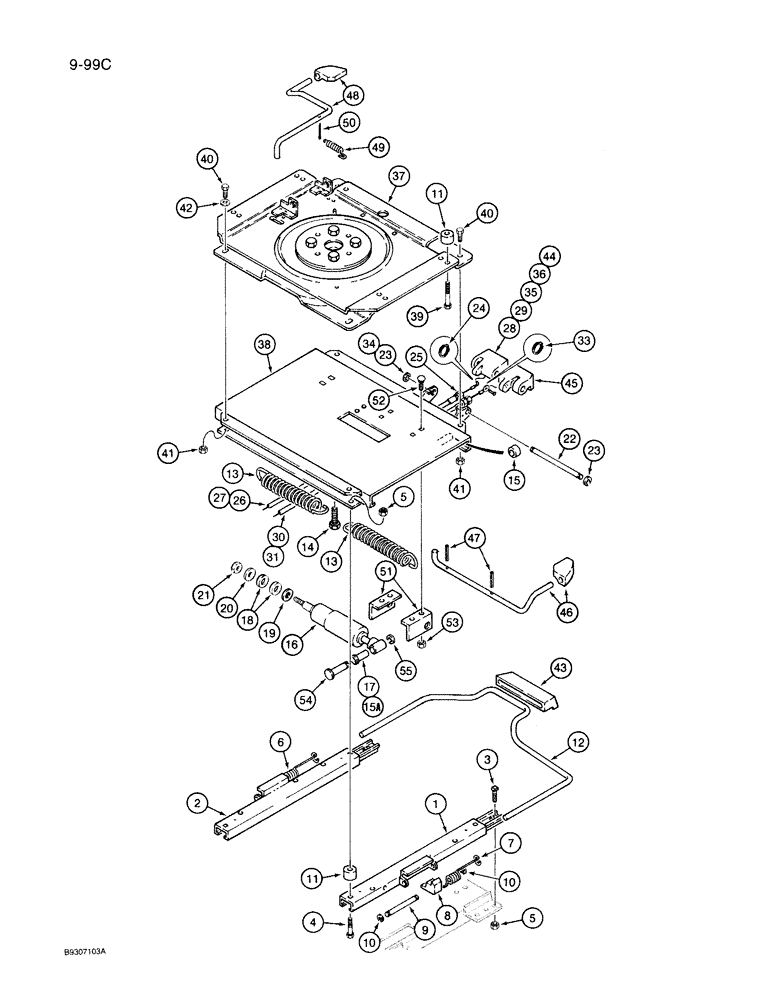

Запчасти Case IH 7140 (9-099C) - DELUXE AIR SUSPENSION SEAT, SWIVEL PLATE AND SLIDES (09) - CHASSIS/ATTACHMENTS

1999936C1

SEAT ASSY.

SEAT ASSEMBLY - deluxe suspension, Includes: Refs. 1 thru 55 in this figure and parts in Figures 9-099A, 9-099G and 9-099L

1шт.

132875A1

SLIDE

KIT - seat slide, Includes: Refs. 1thru 10

1шт.

1

NSS

NOT SOLD SEPARAT

SLIDE - locking, right-hand

1шт.

2

NSS

NOT SOLD SEPARAT

SLIDE - locking, left-hand

1шт.

3

NSS

NOT SOLD SEPARAT

BOLT - 5/16 NC x 3/4 inch

4шт.

4

NSS

NOT SOLD SEPARAT

BOLT - 5/16 NC x 1-1/4 inch

4шт.

5

NSS

NOT SOLD SEPARAT

NUT - hex, self-locking, 5/16 inch NC

8шт.

6

135513A1

SPRING

- torsion, left-hand

1шт.

7

135514A1

SPRING

- torsion, right-hand

1шт.

8

NSS

NOT SOLD SEPARAT

BLOCK - spring

2шт.

9

NSS

NOT SOLD SEPARAT

PIN - torsion

2шт.

10

NSS

NOT SOLD SEPARAT

RING - retaining

2шт.

132861A1

SUPPORT ASSY.

KIT - suspension, service, Includes: Refs. 11 thru 45 and parts in Figures 9-099G and 9-099L

1шт.

11

134144A1

SPACER

- plate

8шт.

12

134146A1

CONTROL LEVER

LEVER - slide control

1шт.

1987290C1

SET OF PARTS

KIT - lateral isoltor springs, Includes: Refs. 13-14

1шт.

13

NSS

NOT SOLD SEPARAT

SPRING - lateral

2шт.

14

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

135512A1

KIT

- roller bearing, Includes: Refs. 15-15A

1шт.

15

NSS

NOT SOLD SEPARAT

ROLLER - bearing

4шт.

15a

NSS

NOT SOLD SEPARAT

BUSHING - shock

1шт.

1987219C2

SET OF PARTS

KIT - lateral isolator shock, Includes: Refs. 16-21

1шт.

16

NSS

NOT SOLD SEPARAT

ABSORBER - shock

1шт.

17

NSS

NOT SOLD SEPARAT

BUSHING - shock

1шт.

18

NSS

NOT SOLD SEPARAT

BUSHING - rubber

2шт.

19

NSS

NOT SOLD SEPARAT

WASHER - flat, 13/32 x 13/16 x 1/16 inch, one required

2шт.

20

NSS

NOT SOLD SEPARAT

WASHER - flat, 21/64 x 1 x 5/64 inch, one required

2шт.

21

NSS

NOT SOLD SEPARAT

NUT - hex, self-locking, 5/16 inch NF, one required

2шт.

132869A1

KIT

KIT - ride firmness control, Includes: Refs. 22-29

1шт.

22

NSS

NOT SOLD SEPARAT

PIN - control pivot

1шт.

23

NSS

NOT SOLD SEPARAT

RING - retaining

2шт.

24

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

25

NSS

NOT SOLD SEPARAT

NUT - hex, self-locking, 1/4 inch NC

2шт.

26

NSS

NOT SOLD SEPARAT

CABLE - shock adjust

1шт.

27

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

3шт.

28

NSS

NOT SOLD SEPARAT

SPRING - compression

1шт.

29

NSS

NOT SOLD SEPARAT

BEARING - ball

1шт.

132870A1

SET OF PARTS

KIT - isolator lock cable, Includes: Refs. 30-36

1шт.

30

NSS

NOT SOLD SEPARAT

CABLE - isolator lock

1шт.

31

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

3шт.

32

NSS

NOT SOLD SEPARAT

RIVET - retainer, not shown

1шт.

33

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

34

NSS

NOT SOLD SEPARAT

RING - retaining

2шт.

35

NSS

NOT SOLD SEPARAT

SPRING - compression

1шт.

36

NSS

NOT SOLD SEPARAT

BEARING - ball

1шт.

132861A1

SUPPORT ASSY.

KIT - suspension, service, See Figures 9-99C - 9-99L, Includes: Ref. 37 thru 45

1шт.

37

134148A1

SEAT SUPPORT

PLATE - swivel, complete, Includes: Refs. 48-50

1шт.

38

132878A1

ISOLATOR

PLATE - lateral isolator, complete, Includes: Refs. 13 thru 21 and 50 thru 55

1шт.

39

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

4шт.

40

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

4шт.

41

131-651

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

4шт.

42

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

134143A1

SET OF PARTS

KIT - control knob, Includes: Refs. 43-45

1шт.

43

NSS

NOT SOLD SEPARAT

KNOB - fore/aft slide

1шт.

44

NSS

NOT SOLD SEPARAT

KNOB - fore/aft isolator

1шт.

45

NSS

NOT SOLD SEPARAT

KNOB - damping adjustment

1шт.

46

135510A1

ROD, ADJUSTMENT

ROD - isolator, includes knob

1шт.

47

38-31012

PIN,3.96mm OD x 19.05mm L, Coiled

2шт.

48

135511A1

ROD, ADJUSTMENT

ROD - swivel, includes knob

1шт.

49

A47375

SPRING

- detent

1шт.

50

NSS

NOT SOLD SEPARAT

PIN - cotter

1шт.

51

NSS

NOT SOLD SEPARAT

BRACKET - angle

2шт.

52

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

4шт.

53

131-651

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

4шт.

54

1344025C1

PIVOT PIN

PIN - clevis

1шт.

55

A27804

CIRCLIP,#50, .392" Dia, E-Type

Ring, Retaining, #50, .392" Dia, E-Type

1шт.
