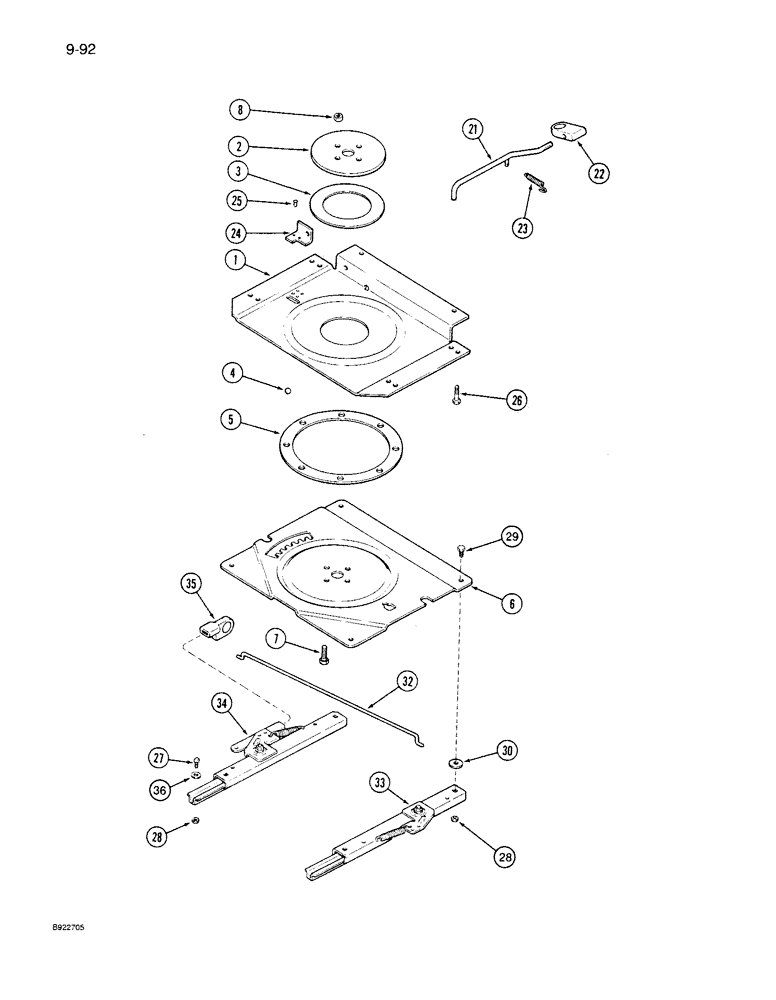

Запчасти Case IH 7140 (9-092) - AIR SUSPENSION SEAT, SWIVEL AND SLIDES, P.I.N. JJA00228200 AND AFTER (09) - CHASSIS/ATTACHMENTS

1987214C4

SEAT ASSY.

SEAT ASSEMBLY air suspension, without brackets, Replaces: 1987214C3, no longer available, order 1999936C1 seat assembly in Figure 9-099A, Includes: seat swivel assembly and Refs. 1 thru 36

1шт.

1344003C3

SEAT SUPPORT

SWIVEL ASSEMBLY - seat, Replaces: 1344003C1, Includes: Refs. 1-25

1шт.

1

NSS

NOT SOLD SEPARAT

PLATE - swivel, upper, Replaces: 1343857C1and 1999896C1

1шт.

2

NSS

NOT SOLD SEPARAT

RETAINER - swivel, Replaces: 1343859C1

1шт.

3

NSS

NOT SOLD SEPARAT

PLATE - swivel bearing, Replaces: 1343860C1

1шт.

4

211-315

BALL,1/2" Dia

- 1/2 inch diameter

8шт.

5

NSS

NOT SOLD SEPARAT

RETAINER - ball, Replaces: A49555

1шт.

6

NSS

NOT SOLD SEPARAT

PLATE - swivel, lower, Replaces: 1343858C1

1шт.

7

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

4шт.

8

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex lock, 3/8 inch NC

4шт.

21

1343862C2

ROD, ADJUSTMENT

ROD ASSEMBLY - latch, Includes: Ref. 22

1шт.

Used for service only on 460 mm wide seats prior to seat S/N 688971 and 500 mm wide seats prior to seat S/N 683824. 1343862C2 is not used for service on other seats.

1шт.

22

1343863C1

KNOB

- control, swivel, no longer available, Order: 1999692C1 kit, shown below

1шт.

Part of KNOB KIT, 1999692C1

1шт.

23

N8680

SPRING

- latch rod

1шт.

24

1343861C1

SUPPORT

BRACKET - mounting, latch rod

1шт.

25

49-36

RIVET,Truss Hd, 3/16" x 3/8"

- truss head, steel, 3/16 x 3/8 inch

2шт.

26

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch

4шт.

27

117-101

BOLT

BOLT - square head, 5/16 NC x 3/4 inch

4шт.

28

131-1353

LOCK NUT,5/16"-18, GA

NUT, LOCK, 5/16"-18, GA

8шт.

29

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

30

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64"), Replaces 1974732C1 5/16"

4шт.

1344248C1

SLIDE

KIT - slide, double locking, Replaces: 1344247C1, Includes: Refs. 27-29, 32-34 and 36

1шт.

32

1981825C1

ELECTRICAL WIRE

WIRE - slide

1шт.

33

1981823C1

SLIDE

ASSEMBLY - seat, right

1шт.

34

1981822C1

SLIDE

ASSEMBLY - seat, left, with handle

1шт.

35

1981829C1

WINDOW STAY

KNOB - fore and aft, no longer available, order 1999691C1 kit, shown below

1шт.

Part of Knob Kit P/N 1999691C1

1шт.

36

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

1999691C1

PACKAGE,SERVICE

KIT - knob, Includes: Ref. 4, 5, 15, and 16, on page 9-01, Ref. 35 in this figure, and two additional knobs not used

1шт.

1999692C1

LEVER ASSY & KNOB

KIT - knob, air suspension, Includes: Ref. 13 in Figure 9-098 and Ref. 22 in this figure

1шт.
