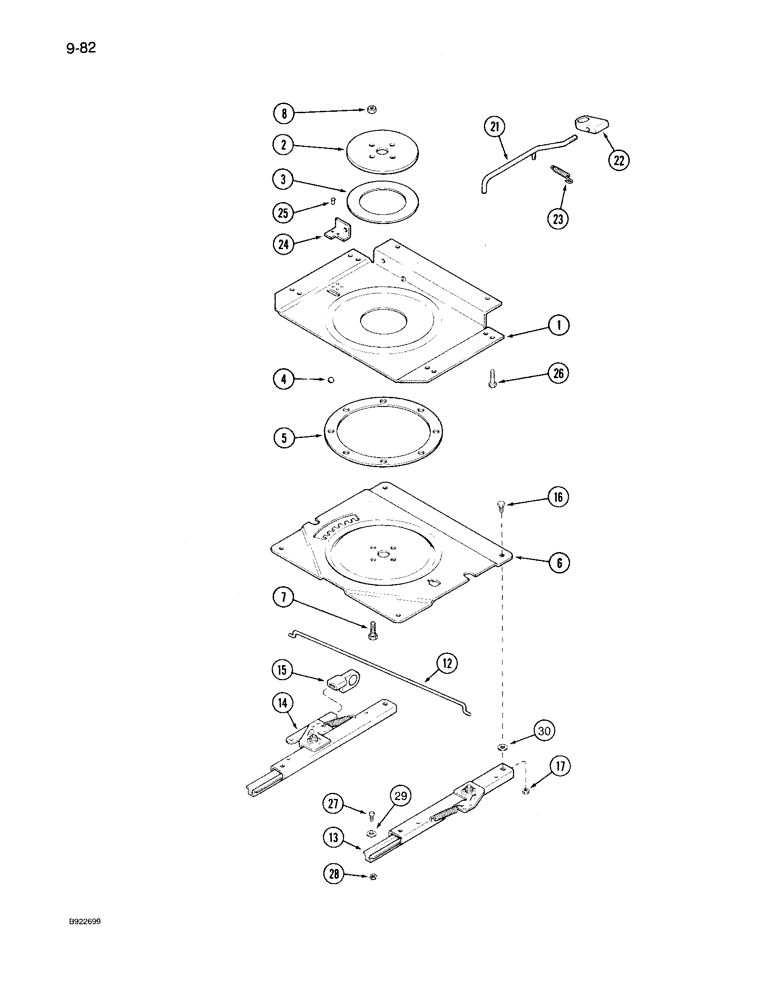

Запчасти Case IH 7140 (9-082) - AIR SUSPENSION SEAT, SWIVEL AND SLIDES, PRIOR TO P.I.N. JJA0028200 (09) - CHASSIS/ATTACHMENTS

1340097C3

SEAT

ASSEMBLY air suspension, includes seat belt & brackets, Replaces: 1340097C2, no longer available, order 1999936C1 seat assembly in Figure 9-099A, Includes: air suspension seat assy. w/o belt & brackets, seat swivel & slide assembly & Ref. 1 thru 30

1шт.

1340096C1

SEAT

ASSEMBLY - air suspension, without belt and brackets, no longer available, order 1999936C1 seat assembly in Figure 9-099A, Includes: seat swivel and slide assembly and Ref. 1 thru 30

1шт.

1343856C1

SUPPORT

SWIVEL AND SLIDE ASSEMBLY - seat, no longer available, order 1344003C3 swivel shown in Figure 9-092, Includes: Ref. 1 thru 25

1шт.

1

1343857C1

LARGE PLATE

PLATE swivel, upper, no longer available, order 1344003C3 Kit in Figure 9-092

1шт.

2

1343859C1

RETAINER

swivel, no longer available, order 1344003C3 Kit in Figure 9-092

1шт.

3

1343860C1

PLATE

PLATE swivel bearing, no longer available, order 1344003C3 Kit in Figure 9-092

1шт.

4

211-315

BALL,1/2" Dia

- 1/2 inch diameter, included in 1344003C3, Figure 9-092

8шт.

5

A49555

LARGE PLATE

RETAINER - ball, included in 1344003C3, Figure 9-092

1шт.

6

1343858C1

LARGE PLATE

PLATE swivel, lower, no longer available, order 1344003C3 Kit in Figure 9-092

1шт.

7

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch, included in 1344003C3, Figure 9-092

4шт.

8

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex lock, 3/8 inch NC, Included in 1344003C3, Figure 9-092

4шт.

1344247C1

SLIDE

KIT - slide, no longer available, order 1344248C1 kit in Figure 9-092, Includes: Ref. 12 thru 15

1шт.

12

1981825C1

ELECTRICAL WIRE

WIRE - slide

1шт.

13

1981823C1

SLIDE

- seat, right-hand

1шт.

14

1981822C1

SLIDE

ASSEMBLY - seat, left-hand with handle, Includes: Ref. 15

1шт.

15

1981829C1

WINDOW STAY

KNOB - fore and aft, no longer available, order 1999691C1 kit, shown below

1шт.

16

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

17

131-1353

LOCK NUT,5/16"-18, GA

NUT, LOCK, 5/16"-18, GA

4шт.

21

1343862C2

ROD, ADJUSTMENT

ROD ASSEMBLY - latch, Inlcudes: Ref. 22

1шт.

Used for service only on 460 mm wide seats prior to seat S/N 688971 and 500 mm wide seats prior to seat S/N 683824. 1343862C2 is not used for service on other seats.

1шт.

22

1343863C1

KNOB

- control, swivel, no longer available, order 1999692C1 kit shown below

1шт.

23

N8680

SPRING

- latch rod

1шт.

24

1343861C1

SUPPORT

BRACKET - mounting, latch rod

1шт.

25

49-36

RIVET,Truss Hd, 3/16" x 3/8"

- truss head, steel, 3/16 x 3/8 inch

2шт.

26

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch, Replaces 413-528

4шт.

27

117-101

BOLT

BOLT - square head, 5/16 NC x 3/4 inch, Grade 2

4шт.

28

131-1353

LOCK NUT,5/16"-18, GA

NUT, LOCK, 5/16"-18, GA

4шт.

29

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

30

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

4шт.

1999691C1

PACKAGE,SERVICE

KIT - knob, Includes: Ref. 33, 34, and 35 in Figure 9-080, Ref. 15 in this figure, and two additional knobs not used

1шт.

1999692C1

LEVER ASSY & KNOB

KIT - knob, air suspension, Includes: Ref. 13 in Figure 9-088 and Ref. 22 in this figure

1шт.
