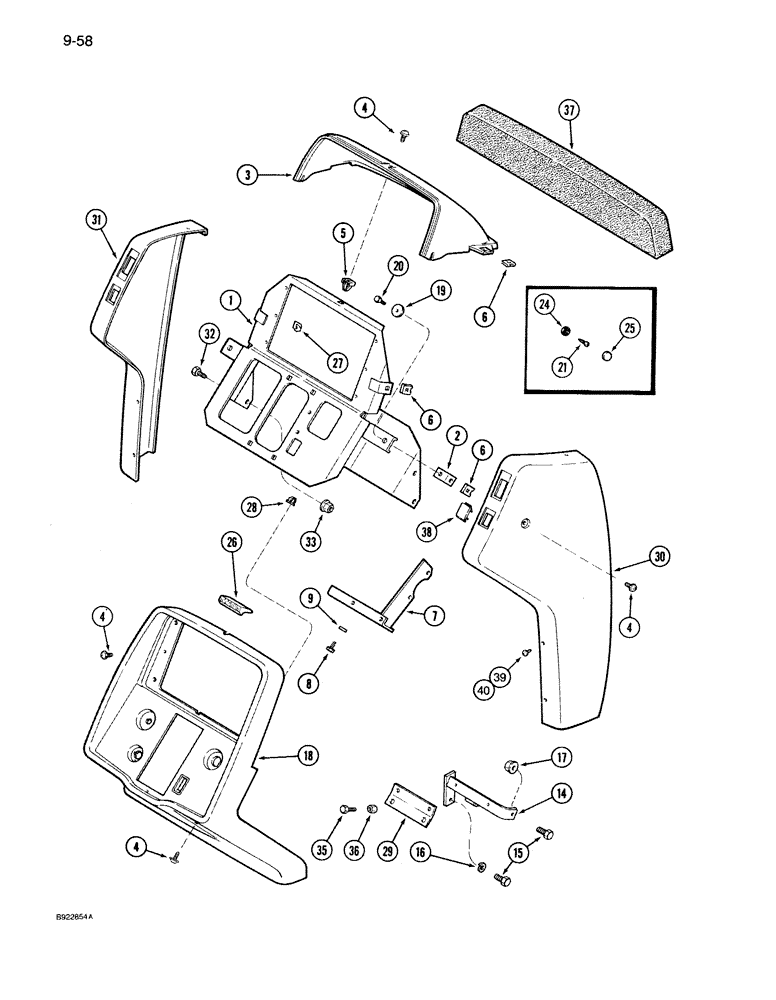

Запчасти Case IH 7140 (9-058) - INSTRUMENT PANEL (09) - CHASSIS/ATTACHMENTS

1

96925C2

SUPPORT ASSY.

SUPPORT - instrument panel

1шт.

2

1974661C1

ANGLE

BRACKET - mounting

2шт.

3

1977582C2

HOUSING

- upper instrument

1шт.

4

1975919C1

SELF-TAP SCREW

- special, No. 10-16 x 1 inch, black

1шт.

5

104035C1

FASTENER

NUT - spacer, No. 10-16

3шт.

6

96900C1

SPRING NUT,U, #10-16, Panel type

Speed U, #10-16, Panel type

1шт.

7

96696C1

SUPPORT ASSY.

SUPPORT - return spring

1шт.

8

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, 8 x 16 mm

1шт.

9

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

14

96931C2

BRACKET

- brake pedal stop, Replaces: 96931C1

1шт.

15

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

16

892-11010

LOCK WASHER,M10

1шт.

17

825-1410

NUT,M10, Cl 8

1шт.

18

1977581C3

HOUSING

COVER - instrument panel

1шт.

19

495-81286

WASHER,.281" x 1 1/8" x .060"

- flat, 9/32 x 1-1/8 x 3/64 inch

2шт.

20

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

21

1270762C1

SELF-TAP SCREW

- polyseal special, Used with cab

2шт.

21

104033C2

SELF-TAP SCREW,Truss HD, #10 - 16 x 3/4"

SCREW - washer head cross slotted, Used with ROPS

2шт.

24

97279C1

RETAINER

- cap, If equipped

8шт.

25

97280C1

CAP

- trim, If equipped

8шт.

26

1343812C1

SYMBOLS

EMBLEM - Magnum, Replaces: 1974626C1

1шт.

27

103957C1

NUT

- speed, No. 10-16

6шт.

28

104036C1

NUT

- cover to instrument panel

2шт.

29

96935C1

BRACKET

- switch mounting

1шт.

30

96739C2

COVER ASSY

COVER - side, right, Used with cab

1шт.

30

1977534C2

COVER ASSY

COVER - side, right, Used with ROPS

1шт.

31

96740C2

COVER ASSY

COVER - side, left, Used with cab

1шт.

31

1977533C2

COVER ASSY

COVER - side, left, Used with ROPS

1шт.

32

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

4шт.

33

825-1410

NUT,M10, Cl 8

4шт.

35

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

hex, CL 8.8, M8 x 1.25 x 30

2шт.

36

825-1408

NUT,M8, Cl 8

2шт.

37

97281C1

SEAL

SEAL - rear, 4 post ROPS tractor

1шт.

38

1964796C1

BLANK-OFF PLUG

PLUG - cover, Used without horn

1шт.

39

1975919C1

SELF-TAP SCREW

- cross slot washer head, 25 mm

8шт.

40

1975782C1

SELF-TAP SCREW,Truss HD, #10 - 16 x 5/8"

SCREW, SELF TAPPING - truss head cross recess, No. 10-16 x 5/8"

2шт.
