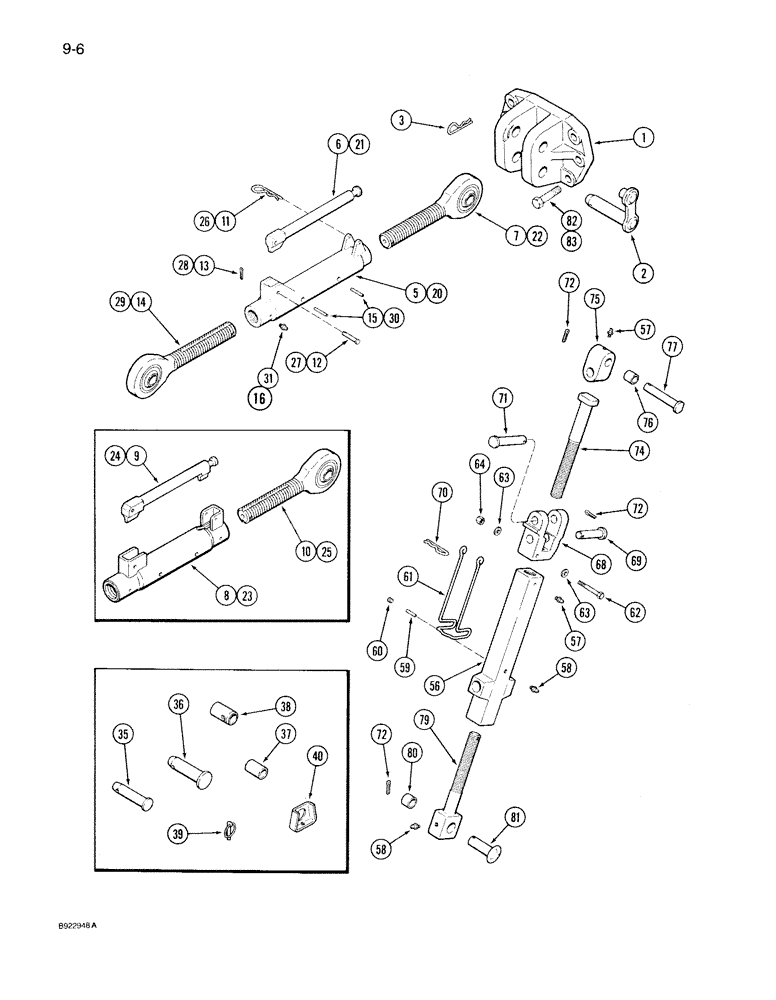

Запчасти Case IH 7140 (9-006) - HITCH UPPER LIFT LINKS, 1-1/2 INCH AND 1-3/4 INCH THREAD (09) - CHASSIS/ATTACHMENTS

1

1266971C4

HITCH BRACKET

BRACKET - link mounting

1шт.

2

1286840C5

HITCH PIN

PIN - upper link bracket, Replaces: 1286840C2

1шт.

3

486830R1

COTTER PIN

PIN - cotter, 3/16 inch

1шт.

1331854C1

DRAG LINK

LINK ASSEMBLY - upper, 1-1/2 inch thread, Includes: Refs. 5-16

1шт.

5

1954221C2

LINK

TURNBUCKLE - upper link, also requires Ref. 6, Replaces: 1954221C1

1шт.

6

1331863C2

HANDLE

- turnbuckle

1шт.

7

1981986C1

END,1-1/2" - 6

ASSEMBLY - ball, RH thread, Without keyway, Requires Ref. 6, handle

1шт.

8

NSS

NOT SOLD SEPARAT

TURNBUCKLE - upper link, Order: Ref. 5

1шт.

9

NSS

NOT SOLD SEPARAT

HANDLE - turnbuckle, Order: Ref. 6

1шт.

10

NSS

NOT SOLD SEPARAT

END ASSEMBLY - ball, RH thread, With keyway, Order: Ref. 7

1шт.

11

486830R1

COTTER PIN

PIN - cotter, 3/16 inch

1шт.

12

23303R1

CLEVIS PIN,3/8" x 2"

PIN, CLEVIS, 3/8" x 2"

1шт.

13

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

1шт.

14

1282063C2

BALL JOINT,1-1/2" - 6, LH Threads

ASSEMBLY - ball, LH thread

1шт.

15

31042R1

PIN,M6 x 38, Coiled

- coiled spring, 6 x 38 mm

2шт.

16

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - grease, 1/4 inch drive type

2шт.

1331855C1

DRAG LINK

LINK ASSEMBLY - upper, 1-3/4 inch thread, Includes: Refs. 20-30

1шт.

20

1954223C1

ARM

TURNBUCKLE - upper link, Requires Ref. 21

1шт.

21

1331863C2

HANDLE

- turnbuckle

1шт.

22

1981988C1

END ASSY.,1-3/4" - 5

END ASSEMBLY - ball, RH thread, Without keyway, Requires Ref. 21, handle

1шт.

23

NSS

NOT SOLD SEPARAT

TURNBUCKLE - upper link, Order: Ref. 20

1шт.

24

NSS

NOT SOLD SEPARAT

HANDLE - turnbuckle, Order: Ref. 21

1шт.

25

NSS

NOT SOLD SEPARAT

END ASSEMBLY - ball, RH thread, With keyway, Order: Ref. 22

1шт.

26

486830R1

COTTER PIN

PIN - cotter, 3/16 inch

1шт.

27

23303R1

CLEVIS PIN,3/8" x 2"

PIN, CLEVIS, 3/8" x 2"

1шт.

28

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

1шт.

29

1282082C2

LIFT LINK END ASSY,1-3/4" - 5, LH Threads

ASSEMBLY - ball, LH thread

1шт.

30

838-5645

LOCK PIN,M6 x 45, Slotted

PIN - spring, 6 x 45 mm, Replaces: 30681R1 pin

2шт.

31

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, If equipped 1/4"-28 NPT x .54" lg

2шт.

A67878

SET OF PARTS

KIT - pin and bushing, Category III to II, Includes: Ref. 35 thru 40

1шт.

35

374132R1

PIN

- link implement, Category II

1шт.

36

392211R2

PIN

- link implement

1шт.

37

398406R1

BUSHING,26.29mm ID x 31.37mm OD x 50.8mm L

- upper link rear ball

1шт.

38

392004R1

SPACER,29.08mm ID x 36.2mm OD x 64.8mm L

- ball

2шт.

39

392181R1

SPLIT PIN/SAFETY PIN,11.13mm OD

PIN - link

3шт.

40

404788R1

SHIELD

- pin

2шт.

56

149836C4

TURNBUCKLE

- lift link

2шт.

57

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - grease, 1/4 inch drive type

1шт.

57

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8 inch PT straight

1шт.

58

219-23

LUBE NIPPLE,1/4" - 18 NPTF

FITTING - grease, straight

4шт.

59

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

1шт.

60

219-86

LUBE NIPPLE,1/8" NPTF

PLUG - 1/8 in. pipe self tapping

1шт.

61

123464C2

CLAMP

- turnbuckle lock

2шт.

62

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- hex, 3/8 NC x 3-1/4 inch

2шт.

63

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

64

231-4116

NUT,3/8"-16, GB

NUT - hex lock, 3/8 inch NC

1шт.

68

1266968C1

YOKE

- lift link

2шт.

69

39-51260

HEADED PIN,19.05mm OD x 95.25mm L

2шт.

70

486830R1

COTTER PIN

PIN - hair

1шт.

71

1266969C1

AXLE PIN,19mm OD x 121.5mm L

PIN - headed

2шт.

72

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

74

149838C1

ROD

- leveling, upper

2шт.

75

1272669C2

PIVOT

SWIVEL ASSEMBLY - lift link, Includes: Ref. 76

2шт.

76

1252114C1

BUSHING,19.25mm ID x 25.46mm OD x 23.5mm L

- lift link swivel

2шт.

77

108590C1

PIN,19.05mm OD x 120.65mm L

- headed

2шт.

79

1272852C1

TRACK ROD END ASSY

ROD ASSEMBLY - leveling, lower, Includes: Ref. 80

2шт.

80

1272674C1

BUSHING,26mm ID x 32.37mm OD x 21.2mm L

- leveling rod

2шт.

81

109088C3

CARRIAGE BOLT

PIN - leveling

2шт.

82

828-20080

BOLT,Hex, M20 x 2.5 x 80mm, Cl 10.9

- hex, 20 mm - 2.50 x 80 mm, class 10.9, With hitch

6шт.

83

896-12020

WASHER,22mm ID x 37mm OD x 4mm Thk

- flat, 22 x 37 x 4 mm, Without hitch

6шт.
