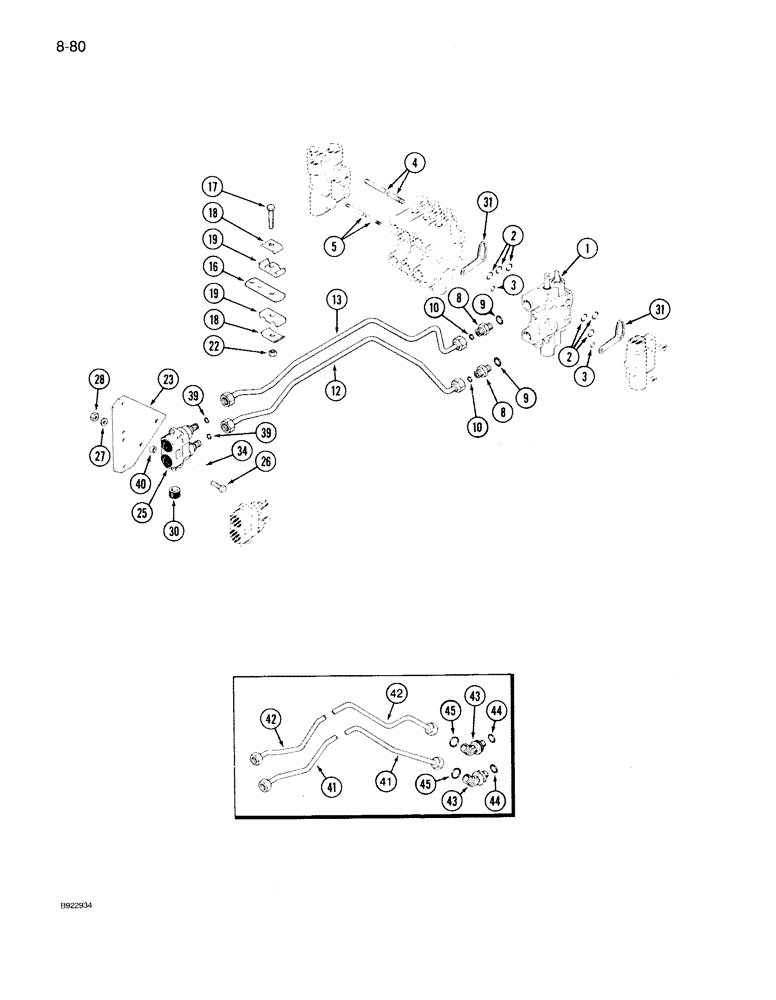

Запчасти Case IH 7140 (8-080) - FOURTH CIRCUIT REMOTE HYDRAULICS, TRANSMISSION S/N AJB0018756 THROUGH AJB0060499 (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - fourth remote, See Figures 8-064 - 8-066

1шт.

2

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

6шт.

3

238-6112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

Seal, valve -112, 90 Duro, .487" ID x .103" Thk

2шт.

4

1986938C1

STUD

- mounting, 12 mm - 1.75 x 312 mm, Replaces: P/N 1334614C1

2шт.

5

1334613C2

STUD

- mounting, 10 mm - 1.50 x 312 mm, Replaces: P/N 1334613C1

1шт.

8

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

CONNECTOR, HYD., , Includes Ref. 9-10 1"-14 ORFS x 7/8"-14 ORB

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Boss end

1шт.

10

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face end -016, 90 Duro, .614" ID x .070" Thk

1шт.

12

1348308C1

HYD TUBE,0.625" OD, 764, 241 mm Length

TUBE - raise, fourth valve

1шт.

13

1348283C1

TUBE

- drop, fourth valve

1шт.

16

1334203C1

SUPPORT ASSY.

SUPPORT - tube

1шт.

17

814-8080

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

- hex, 8 - 1.25 x 80 mm

1шт.

18

486004R1

CLAMP

- tube

2шт.

19

224968C2

STRIP

- isomount, tube

2шт.

22

825-1408

NUT,M8, Cl 8

1шт.

23

REF

INSTRUCTION

SUPPORT - coupler

1шт.

25

REF

INSTRUCTION

COUPLER ASSEMBLY - fourth circuit, See Figure 8-068

1шт.

26

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

- hex, 10 mm - 1.50 x 70 mm

2шт.

27

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

2шт.

28

825-11410

NUT,M10 x 1.25, Cl 8

2шт.

30

1342159C1

HOSE

- drain, short, 20 mm

1шт.

31

1346059C2

SHIM

- auxiliary valve stack

4шт.

34

1334584C3

DECAL

- coupler, shown on Figure 9-158

1шт.

39

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

40

1342182C1

SPACER

- coupler

4шт.

41

1340624C1

TUBE,0.625" Diameter, 751 mm Length

- raise, fourth valve if equipped

1шт.

42

1340623C1

TUBE,0.625" Diameter, 751.3 mm Length

- drop, fourth valve if equipped

1шт.

43

201-316

ELBOW,45 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

- 45° adj, 7/8 x 1 inch thread if equipped, Includes: Ref. 44-45

1шт.

44

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

45

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.
