Запчасти Case IH 7140 (8-073A) - THIRD CIRCUIT REMOTE HYDRAULICS, TRANSMISSION S/N AJB0060500 AND AFTER (08) - HYDRAULICS

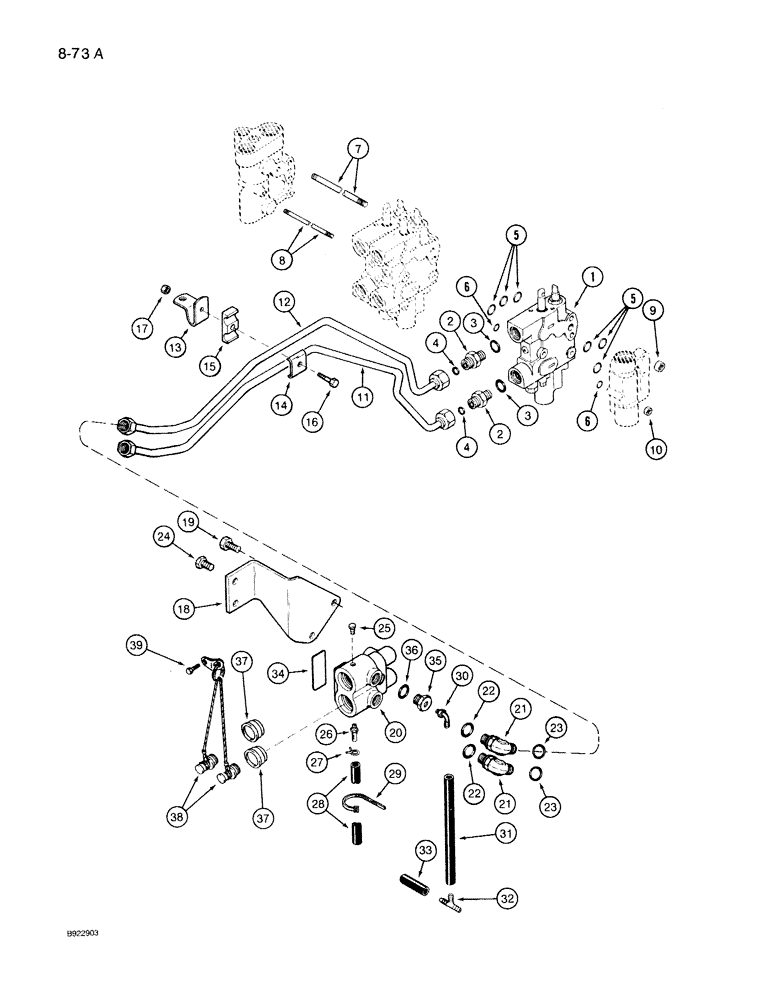

Схема запчастей Case IH 7140 - (8-073A) - THIRD CIRCUIT REMOTE HYDRAULICS, TRANSMISSION S/N AJB0060500 AND AFTER (08) - HYDRAULICS
28
38
26
37
24
7
3
19
4
34
5
29
27
10
39
33
12
23
22
6
30
4
32
9
3
11
14
5
31
15
1
20
23
13
8
2
36
18
21
16
22
2
17
35
21
6
25
37

Артикул

Название

Примечание

Количество

1

1980450C6

VALVE, CONTROL

VALVE ASSEMBLY - remote, See Figures 8-064 - 8-066, Replaces: P/N 1980450C5

1шт.

2

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

CONNECTOR, HYD., , Includes Ref. 3 and 4 1"-14 ORFS x 7/8"-14 ORB

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Boss end

1шт.

4

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face end -016, 90 Duro, .614" ID x .070" Thk

1шт.

5

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

6шт.

6

238-6112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

2шт.

7

1994613C1

STUD

- mounting, 12 x 268 mm

2шт.

8

1334559C2

STUD

- mounting, 10 x 275 mm

1шт.

9

829-1312

NUT,M12 x 1.75, Cl 10

- hex, 12 mm - 1.75, class 10

2шт.

10

829-1310

NUT,M10, Cl 10

- hex, 10 mm, class 10.9

1шт.

11

102219A1

TUBE,0.625" OD, 925, 189 mm Length

- raise, third circuit

1шт.

12

102220A1

TUBE,0.625" OD, 927, 132 mm Length

- drop, third circuit

1шт.

13

1289355C1

SUPPORT ASSY.

SUPPORT - tube

1шт.

14

486004R1

CLAMP

- tube

1шт.

15

224968C2

STRIP

CLAMP - isomount strip

1шт.

16

828-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

- hex, 8 x 40 mm, class 10.9

1шт.

17

832-41308

NUT,M8 x 1.25, Cl 10

- hex, self-locking, 8 mm, class 10

1шт.

18

102519A1

SUPPORT

BRACKET - coupler, right-hand

1шт.

19

628-16030

BOLT,Hex, M16 x 2 x 30mm, Cl 10.9, Full Thd

2шт.

20

103866A2

COUPLING

COUPLER ASSEMBLY - hydraulic, See Figure 8-68, Replaces: P/N 103866A1

1шт.

21

201-306

90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

ASSEMBLY - 90° adjustable, 7/8 x 1 inch thread, Includes: Ref. 22-23

2шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Boss end

1шт.

23

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face end -016, 90 Duro, .614" ID x .070" Thk

1шт.

24

628-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

- Hex, M12 x 20, 10.9, Full Thd

2шт.

25

221-849

PLUG,Hex Soc, 1/8"-27

- hex, 1/8 inch PT

1шт.

26

221-1101

FITTING,1/8" PT x 1/4"

NIPPLE - straight, 1/8 PT x 3/4 inch

1шт.

27

1348264C1

HOSE CLAMP

CLAMP - hose, 3/8 ID

1шт.

28

106514A1

HYDRAULIC HOSE

- 3/8 (9.5) x 30-13/16 inch (808 mm) long, Coupler drain

1шт.

29

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

30

1289481C1

ELBOW,1/8" NPT x 1/4" Hose Barb

- coupler, 90°

1шт.

31

1334641C1

HOSE,6.35 mm ID x 330.00 mm

- 1/4 (6.3) x 13 inch (330 mm) long, coupler, elbow to tee, cut from 427683C2 shown below

1шт.

32

1289479C1

TEE

- hose, barbed, used on models with hitch

1шт.

33

1289484C1

HOSE

- 1/4 (6.3) x 4-9/16 inch (115 mm) long, drain, tee to tee, cut from 427683C2 shown below

1шт.

34

1334583C3

DECAL

- coupler, shown on Figure 9-158

1шт.

35

1334586C1

PLUG

ADAPTER - coupler drain, special, Includes: Ref. 36

1шт.

36

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

1шт.

37

103871A1

CAP

SOCKET - dust plug

2шт.

38

109021A1

PLUG

- dust, coupler

1шт.

39

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

1шт.

427683C2

HYDRAULIC HOSE,6.35 mm ID BULK, SAE 30R6 or SAE 30R7

HOSE, 1/4, 6.3 mm, ID x 600 in, 15240 mm, long, used for Ref. 31 and 33

1шт.

Выбрано товаров: 40
