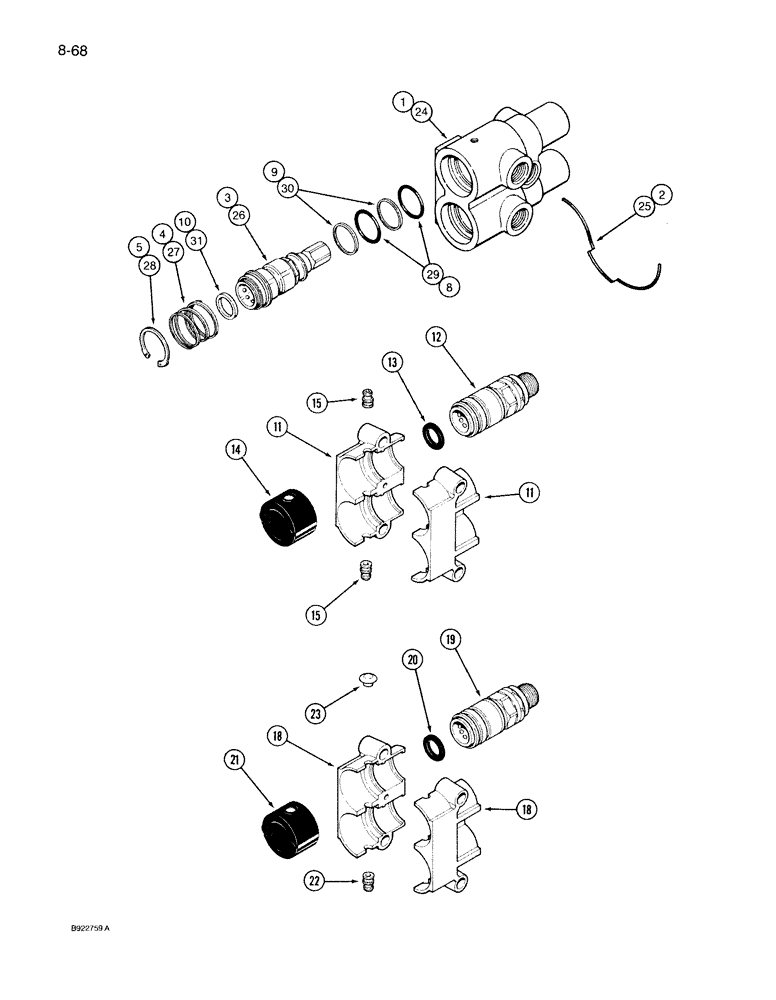

Запчасти Case IH 7140 (8-068) - QUICK DISCONNECT COUPLERS (08) - HYDRAULICS

92912C3

COUPLING

COUPLER ASSEMBLY - quick, hydraulic, Includes: Ref. 1-10

3шт.

Prior to Transmission S/N AJB0018756

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - coupler

1шт.

Prior to Transmission S/N AJB0018756

1шт.

2

93329C1

SPRING

RING - retainer

1шт.

Prior to Transmission S/N AJB0018756

1шт.

3

93328C3

COUPLING, QUICK, FEM

- coupler

2шт.

Prior to Transmission S/N AJB0018756

1шт.

4

93330C1

VALVE SPRING

SPRING - tension

2шт.

Prior to Transmission S/N AJB0018756

1шт.

5

206321H1

SNAP RING,1.625", Int, #162

Ring, Snap, 1.625", Int, #162

2шт.

Prior to Transmission S/N AJB0018756

1шт.

93331C1

SEAL KIT

Inc. 8 - 10, seal, coupler, kit no longer available, order components

1шт.

Prior to Transmission S/N AJB0018756

1шт.

8

347070R1

O-RING,1.301" ID x 0.07" Width

- 1-5/16 x 1-7/16 inch

4шт.

Prior to Transmission S/N AJB0018756

1шт.

9

93332C1

SEAL ASSY.

SEAL - slipper

4шт.

Prior to Transmission S/N AJB0018756

1шт.

10

A47221

SEALING RING,20.22mm ID x 27.28mm OD x 3.53mm Thk

- interface

2шт.

Prior to Transmission S/N AJB0018756

1шт.

1342158C3

COUPLING, BREAK AWAY

COUPLER ASSEMBLY - hydraulic, quick disconnect, Includes: Ref. 11-15, not serviced separately, order components, First & Third Remotes

2шт.

Transmission S/N AJB0018756 thru AJB0060499

1шт.

11

1342106C1

CLAMP

- coupler, Halves, First and Third Remotes

2шт.

Transmission S/N AJB0018756 thru AJB0060499

1шт.

12

1342102C3

COUPLING, QUICK, FEM,1" - 14

- coupler, First and Third Remotes

2шт.

Transmission S/N AJB0018756 thru AJB0060499

1шт.

13

A47221

SEALING RING,20.22mm ID x 27.28mm OD x 3.53mm Thk

- coupling, First and Third Remotes

2шт.

Transmission S/N AJB0018756 thru AJB0060499

1шт.

14

1342105C1

PLUG

CAP - dust, First and Third Remotes

2шт.

Transmission S/N AJB0018756 thru AJB0060499

1шт.

15

1342104C1

FITTING

- hose, First and Third Remotes

2шт.

Transmission S/N AJB0018756 thru AJB0060499

1шт.

1342157C3

COUPLING, BREAK AWAY

COUPLER ASSEMBLY - hydraulic, quick disconnect, Includes: Ref. 18-23, not serviced separately, order components, Second & Fourth Remotes

2шт.

Transmission S/N AJB0018756 thru AJB0060499

1шт.

18

1342106C1

CLAMP

- coupler halves, Second and Fourth Remotes

2шт.

Transmission S/N AJB0018756 thru AJB0060499

1шт.

19

1342102C3

COUPLING, QUICK, FEM,1" - 14

ASSEMBLY - coupler, Second and Fourth Remotes

2шт.

Transmission S/N AJB0018756 thru AJB0060499

1шт.

20

A47221

SEALING RING,20.22mm ID x 27.28mm OD x 3.53mm Thk

- coupling, Second and Fourth Remotes

2шт.

Transmission S/N AJB0018756 thru AJB0060499

1шт.

21

1342105C1

PLUG

CAP - dust, Second and Fourth Remotes

2шт.

Transmission S/N AJB0018756 thru AJB0060499

1шт.

22

1342104C1

FITTING

- hose, Second and Fourth Remotes

1шт.

Transmission S/N AJB0018756 thru AJB0060499

1шт.

23

353-257

HOLE PLUG BUTTON,3/8"

PLUG - button, 3/8 inch, Second and Fourth Remotes

1шт.

Transmission S/N AJB0018756 thru AJB0060499

1шт.

103866A2

COUPLING

COUPLER ASSEMBLY - quick, hydraulic, Replaces: 103866A1, First, Second, Third & Fourth Remotes, Includes: Ref. 24-31

4шт.

Transmission S/N AJB0060500 and after

1шт.

24

NSS

NOT SOLD SEPARAT

HOUSING - coupler, First, Second, Third, and Fourth Remotes

1шт.

Transmission S/N AJB0060500 and after

1шт.

25

93329C2

SPRING

- retainer, Replaces: P/N 93329C1, First, Second, Third, and Fourth Remotes

1шт.

Transmission S/N AJB0060500 and after

1шт.

26

93328C3

COUPLING, QUICK, FEM

ASSEMBLY - coupler, First, Second, Third, and Fourth Remotes

2шт.

Transmission S/N AJB0060500 and after

1шт.

27

93330C1

VALVE SPRING

SPRING - tension, First, Second, Third, and Fourth Remotes

2шт.

Transmission S/N AJB0060500 and after

1шт.

28

206321H1

SNAP RING,1.625", Int, #162

Ring, Snap, , first, second, third, and fourth remotes 1.625", Int, #162

2шт.

Transmission S/N AJB0060500 and after

1шт.

93331C1

SEAL KIT

KIT - seal, coupler, Includes: Ref. 29-31, First, Second, Third, and Fourth Remotes

1шт.

Transmission S/N AJB0060500 and after

1шт.

29

238-5027

O-RING,0.07" Thk x 1.301" ID, -27, Cl 5, 75 Duro

-027, 70 Duro, 1.301" ID x .070" Thk, Replaces P/N 347070R1, First, Second, Third, and Fourth Remotes

4шт.

Transmission S/N AJB0060500 and after

1шт.

30

93332C1

SEAL ASSY.

SEAL - slipper, First, Second, Third, and Fourth Remotes

4шт.

Transmission S/N AJB0060500 and after

1шт.

31

A47221

SEALING RING,20.22mm ID x 27.28mm OD x 3.53mm Thk

- interface, First, Second, Third, and Fourth Remotes

2шт.

Transmission S/N AJB0060500 and after

1шт.
