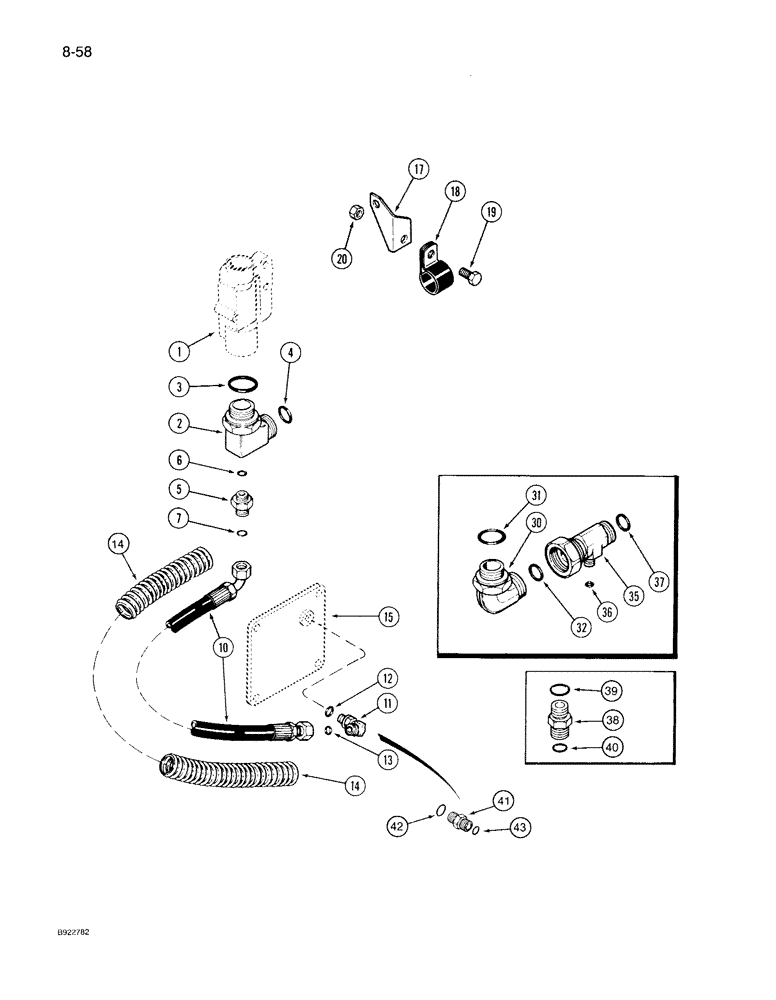

Запчасти Case IH 7140 (8-058) - REMOTE HYDRAULIC BLEED LINE (08) - HYDRAULICS

1

REF

INSTRUCTION

COVER - end, remote, See Figure 8-052

1шт.

2

1340607C1

FITTING

ELBOW ASSEMBLY - 90°, adj, 1-5/16 x 1-7/16 inch thread, if used, Includes: Ref. 3-4

1шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- boss end, 1-11/64 ID x 1/8 inch

1шт.

4

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face End -021, 90 Duro, .926" ID x .070" Thk

1шт.

5

1340606C1

FITTING

ADAPTER - straight, if used, Includes: Ref. 6-7

1шт.

6

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

7

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

10

1976746C1

HOSE,9.53mm ID x 533.4mm L, SAE 100R3

- bleed, return

1шт.

11

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

ASSEMBLY - 90°, adj, 11/16-16 flare x 9/16-18 inch adj O-ring, if used, Includes: Ref. 12-13

1шт.

13

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face end -012, 90 Duro, .364" ID x .070" Thk

1шт.

14

1968083C3

TUBE,27 mm ID, 34 mm OD

SHIELD - hose

1шт.

15

REF

INSTRUCTION

COVER - transmission, See Figures 6-042 or 6-044

1шт.

17

1976728C1

SUPPORT

BRACKET - hose if equipped

1шт.

18

92385C1

CLIP

- retaining if equipped

1шт.

19

814-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

20

825-1110

NUT,M10, Cl 8

hex M10, Cl 8

1шт.

30

201-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

- 90°, 1-7/16-12 face x 1-5/16-12 inch adj O-ring if equipped, Includes: Ref. 31-32

1шт.

31

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch

1шт.

32

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

35

1971849C1

TEE

ASSEMBLY - swivel if equipped, Includes: Ref. 36-37

1шт.

36

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

37

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

38

201-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

ADAPTER - straight, 1-7/16-12 face seal x 1-5/16 inch O-ring, if used, Incl. Ref. 39-40

1шт.

39

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 1/8 inch

1шт.

40

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

41

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Adapter - straight, if used, Incl Ref. 42-43 11/16"-16 ORFS x 9/16"-18 ORB

1шт.

43

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Boss end

1шт.

42

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
