Запчасти Case IH 7140 (8-052) - TWO CIRCUIT REMOTE VALVE AND COVER (08) - HYDRAULICS

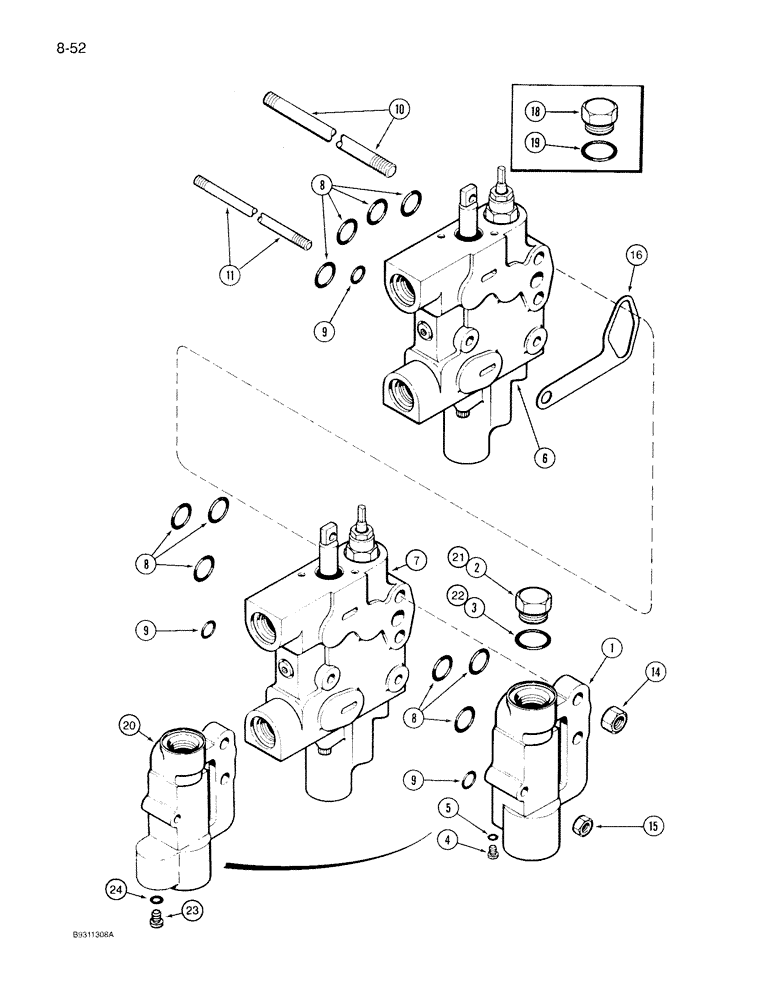

Схема запчастей Case IH 7140 - (8-052) - TWO CIRCUIT REMOTE VALVE AND COVER (08) - HYDRAULICS
19
9
20
8
8
2
1
10
24
18
9
22
14
15
16
7
21
11
5
6
4
8
23
9
3

Артикул

Название

Примечание

Количество

1

1542599C1

COVER

- end, outlet, with plugs, Replaces: P/N 1978363C1, no longer available, order 1978363C2 cover, 218-5209 plug and 218-5212 plug, Includes: Ref. 2-5

1шт.

2

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

- hex, 1-1/16-12 inch O-ring boss, if used, Includes: Ref. 3

1шт.

2a

9841223

PLUG,1-1/16" - 12 ORB

If used, Not shown, Incl. Ref. 3 Hex Soc, 1 1/16"-12 ORB

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

4

9625178

PLUG,9/16" - 18 ORB

Incl. Ref. 5 Hex Soc, 9/16"-18 ORB

1шт.

6

REF

INSTRUCTION

VALVE ASSEMBLY - control, first circuit, See Figures 8-060 - 8-062

1шт.

7

REF

INSTRUCTION

VALVE ASSEMBLY - control, second circuit, See Figures 8-064 - 8-066

1шт.

8

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

(Replaces P/N D63414) -117, 90 Duro, .799" ID x .103" Thk

10шт.

9

238-6112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

(Replaces P/N H756783) -112, 90 Duro, .487" ID x .103" Thk

3шт.

10

1334558C1

STUD

- valve, 12 x 210 mm, class 10.9, if used

2шт.

10

1994612C1

STUD

- valve, 12 x 225 mm, if used

2шт.

11

1334557C2

STUD

- valve, 10 x 225 mm, class 10.9, Replaces: P/N 1334557C1

1шт.

14

829-1312

NUT,M12 x 1.75, Cl 10

- hex, 12 mm - 1.75, class 10, Replaces P/N 30169R1

2шт.

15

829-1310

NUT,M10, Cl 10

Replaces 30168R1 M10, Cl 10

1шт.

16

1346059C2

SHIM

- auxiliary valve stack if equipped

1шт.

18

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

ASSEMBLY - hex, 1-1/16 inch thread used without auxiliary hydraulic motor, Includes: Ref. 19

1шт.

19

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 x 1-5/32 x 7/64 inch

1шт.

20

1978363C2

COVER

- end, outlet, without plugs

1шт.

21

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

- hex, 1-1/16-12 inch O-ring boss, if used, Includes: Ref. 22

1шт.

21a

9841223

PLUG,1-1/16" - 12 ORB

If used, Not shown, Incl. Ref. 22 Hex Soc, 1 1/16"-12 ORB

1шт.

22

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

23

9625178

PLUG,9/16" - 18 ORB

Incl. Ref. 24 Hex Soc, 9/16"-18 ORB

1шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Boss end

1шт.

24

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Boss end

1шт.

Выбрано товаров: 24
