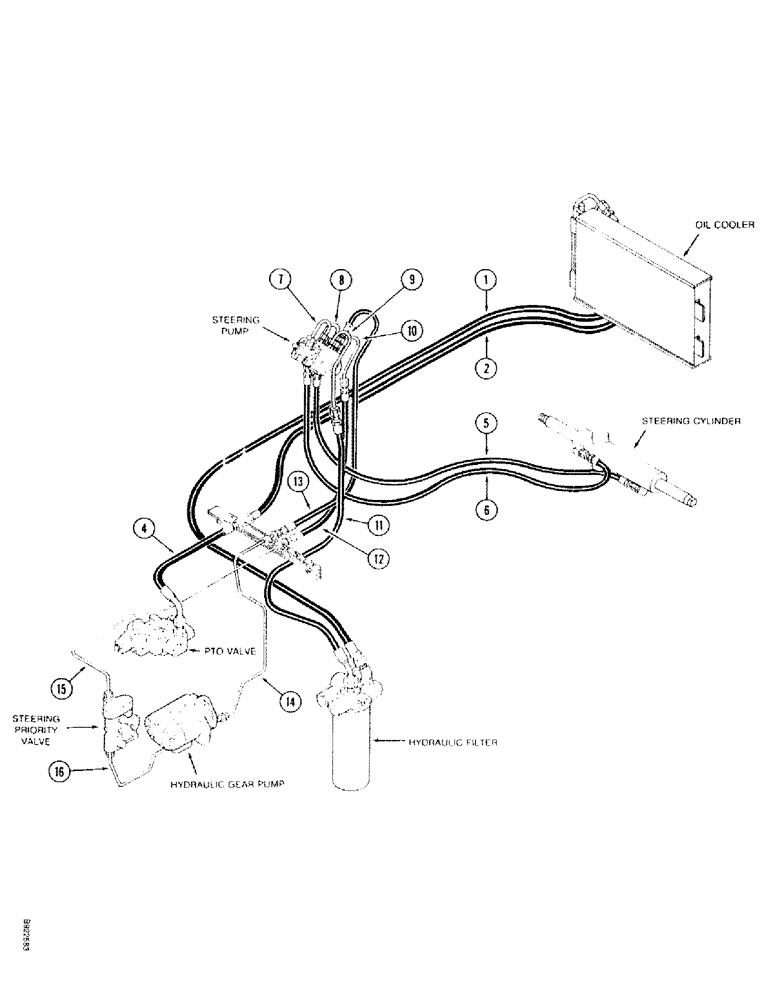

Запчасти Case IH 7140 (1-032) - PICTORIAL INDEX, STEERING HYDRAULICS, TWO WHEEL DRIVE, P.I.N. JJA0027701 THROUGH JJA0039445 (00) - PICTORIAL INDEX

1

Upper Oil Cooler Hose, Figure 5-20

1шт.

2

Lower Oil Cooler Hose, Figure 5-20

1шт.

4

Cooler Supply Hose, Figure 5-20, 8-28

1шт.

5

Right Turn Steering Hose, Figure 5-10, 5-12

1шт.

6

Left Turn Steering Hose, Figure 5-10, 5-12

1шт.

7

Left Turn Steering Tube, Figure 5-10, 5-12

1шт.

8

Right Turn Steering Tube, Figure 5-10, 5-12

1шт.

9

Steering Return Tube, Figure 5-10, 5-12

1шт.

10

Steering Upper Supply Tube, Figure 5-10, 5-12

1шт.

11

Steering Return Hose, Figure 5-10, 5-12

1шт.

12

Steering Supply Hose, Figure 5-10, 5-12

1шт.

13

Steering Signal Hose, Figure 5-10, 5-12

1шт.

14

Front Signal Steering Tube, Figure 5-08

1шт.

15

Steering Supply Tube, Figure 5-08

1шт.

16

Rear Signal Steering Tube, Figure 5-08

1шт.
