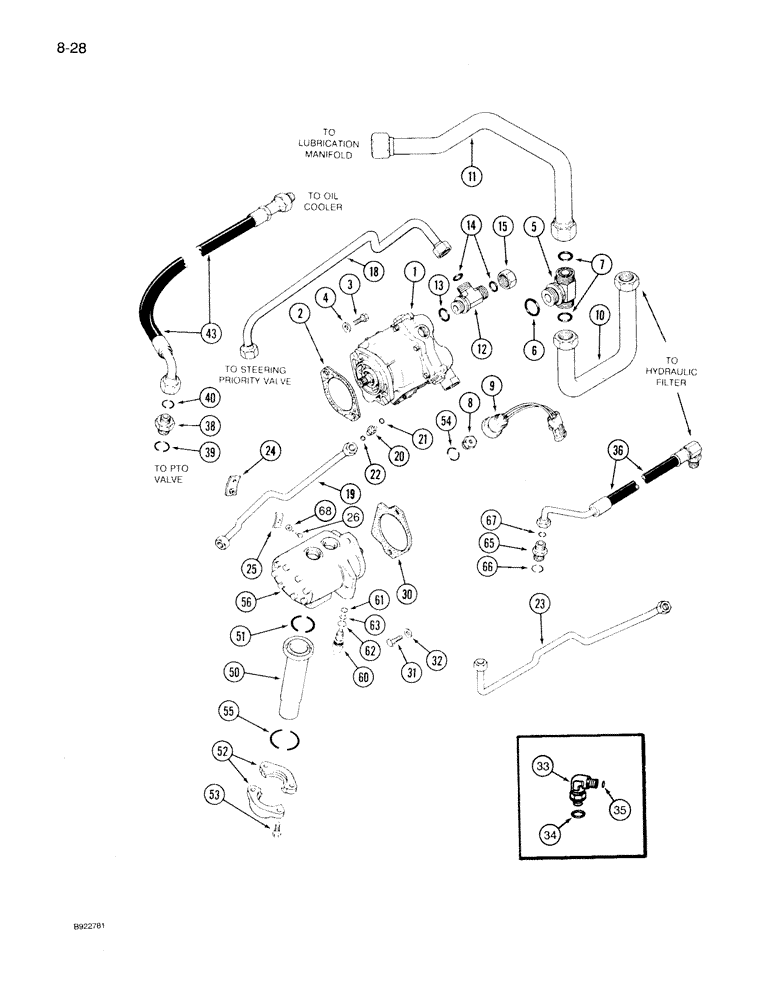

Запчасти Case IH 7140 (8-028) - HYDRAULIC PUMP SYSTEM, TRANSMISSION S/N AJB0044915 THROUGH AJB0055385 (08) - HYDRAULICS

1

REF

INSTRUCTION

PUMP ASSEMBLY - piston hydraulic See Figures 8-034 - 8-038

1шт.

2

144169C2

GASKET,0.79mm Thk

- mounting, pump

1шт.

3

615-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

2шт.

4

896-16012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

- flat, 13.5 x 28 x 4 mm

2шт.

5

201-405

TEE,2"-12 x 1 7/8"-12 Br, ORFS

- 1-7/8-12 adj O-ring branch x 2-12 inch face x face, Includes: Ref. 6-7

1шт.

6

237-6024

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

24-1, 90 Duro, 1.72" ID x .118" Thk

1шт.

7

238-6029

O-RING,0.07" Thk x 1.489" ID, -29, Cl 6, 90 Duro

2шт.

8

1334586C1

PLUG

ADAPTER - coupler drain

1шт.

9

A187770

IGNITION SWITCH

SWITCH ASSEMBLY - low pressure

1шт.

10

1342130C1

TUBE,1.5" OD, 234.5, 245 mm Length

- inlet, pump

1шт.

11

1342129C1

TUBE

- lube, manifold

1шт.

12

201-407

TEE,1 7/16"-12 x 1 5/16"-12 Run, ORFS

- adjustable, 1-5/16 x 1-7/16 x 1-7/16 inch thread, Includes: Ref. 13-14

1шт.

13

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .116" Thk, boss end

1шт.

14

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face End -021, 90 Duro, .926" ID x .070" Thk

2шт.

15

201-901

CAP,1 7/16"-12 ORFS

- tube, 1-7/16 inch thread

1шт.

18

1340680C1

HYD TUBE,1" Diameter, 689 mm Length

TUBE - supply, priority valve

1шт.

For S/N AJB0050764, need Ref. 18, 1342131C1 tube priority valve from Figure 8-030.

1шт.

19

1342146C2

HYD TUBE

TUBE - signal, pump with hitch

1шт.

20

1957867C1

FILTER SCREEN

SCREEN ASSEMBLY - pump, compensator, Includes: Ref. 21-22

1шт.

21

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, Boss end

1шт.

22

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face end -012, 90 Duro, .364" ID x .070" Thk

1шт.

23

1342147C2

HYD TUBE

TUBE - signal, pump without hitch

1шт.

24

1334401C1

SUPPORT

BRACKET - clamp

1шт.

25

535307R1

CLAMP

- tube

1шт.

26

615-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

1шт.

30

1349060C1

GASKET,0.79mm Thk

- mounting, pump

1шт.

31

615-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

2шт.

32

896-16012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

- flat, 13.5 x 28 x 4 mm

2шт.

33

201-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

- 90 deg, 1-7/16-12 x 1-5/16-12 inch if equipped, Includes: Ref. 34-35

1шт.

34

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .116" Thk

1шт.

35

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

36

1348281C1

HOSE ASSY.,25.4mm ID x 812.8mm L, SAE 100R1

HOSE - pump to filter Replaces: 1340557C1

1шт.

38

201-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., , Includes Ref. 39-40 1 3/16"-12 ORFS x 1 1/16"-12 ORB

1шт.

39

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Boss end

1шт.

40

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face end -018, 90 Duro, .739" ID x .070" Thk

1шт.

43

1348343C1

HOSE

- cooler supply

1шт.

50

1340541C1

TUBE,194 mm Length

- inlet, dual pump

1шт.

51

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

4шт.

52

300525R1

CLAMP

- split, flange halves

2шт.

53

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

Includes Ref. 54-55 Hex, 1/2"-13 x 1 1/4", G5, Full Thd

4шт.

54

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

55

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

56

1980421C1

PUMP, HYDRAULIC

PUMP ASSEMBLY - hydraulic, dual gear, Includes: Ref. 60-63 and seal repair kit

1шт.

432244A3R

REMAN-HYD PUMP

7130, 7140 all TRANSMISSION S/N AJB0044915 THROUGH AJB0055385 (10/87-12/93), 7150 S/N AJB0044915 THROUGH AJB0055385 (11/91-12/93); Reman for New P/N 1980421C1

1шт.

432244A3C

CORE-HYDRAULIC PUMP

Return Number

1шт.

60

1986872C1

VALVE, PRESSURE RELI

VALVE ASSEMBLY - relief, Includes: Ref. 61-63

1шт.

61

238-7113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 7, 75 Duro

1шт.

62

D63414

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

-117, 90 Duro, .799" ID x .103" Thk

1шт.

63

N7319

RING

WASHER - backup

1шт.

1986849C1

SEAL KIT

KIT - seal repair

1шт.

65

201-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

ADAPTER - straight, 1-7/16-12 face seal x 1-5/16 inch O-ring, Incl. Ref. 66-67

1шт.

66

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .116" Thk

1шт.

67

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

68

895-10006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

- flat, 7 x 13 x 2 mm

1шт.
