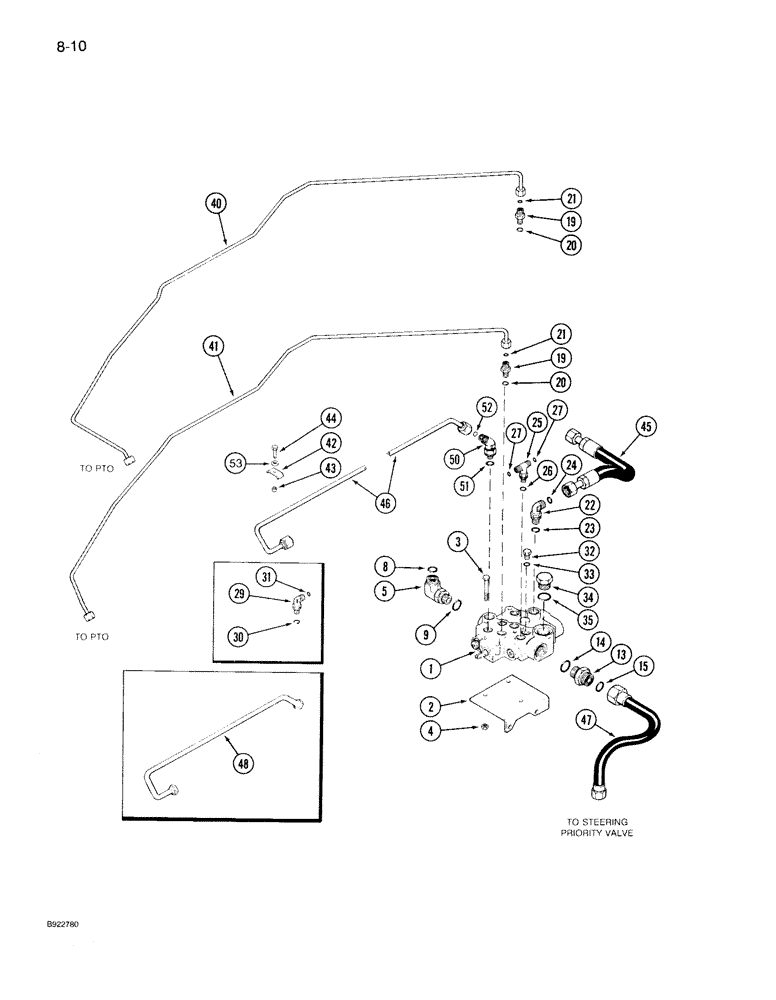

Запчасти Case IH 7140 (8-010) - PTO HYDRAULICS, PRIOR TO TRANSMISSION S/N AJB0044915 (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - PTO See Figure 8-014 or 8-016

1шт.

2

1334649C1

BRACKET

- mounting, valve

1шт.

3

828-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

- hex, 10 x 70 mm, class 10.9

3шт.

4

30168R1

NUT,M10, Cl 10

- hex, 10 mm

3шт.

5

1957845C1

ELBOW

VALVE ASSEMBLY - check, Includes: Ref. 8-9

1шт.

8

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face end -018, 90 Duro, .739" ID x .070" Thk

1шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Boss end

1шт.

13

201-129

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-5/16" - 12 ORB

ADAPTER - straight, 1-5/16 x 1-3/16 inch, Includes: Ref. 14-15

1шт.

14

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- boss end, 1-11/64 ID x 1/8 inch

1шт.

15

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face end -018, 90 Duro, .739" ID x .070" Thk

1шт.

19

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Adapter - straight, Incl Ref. 20-21 11/16"-16 ORFS x 9/16"-18 ORB

5шт.

21

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face end -012, 90 Duro, .364" ID x .070" Thk

1шт.

22

201-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

- 90°, adjustable, 3/4 x 13/16" thread, Incl. Ref. 23-24

1шт.

23

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Boss end

1шт.

24

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face end -014, 90 Duro, .489" ID x .070" Thk

1шт.

25

201-401

TEE,11/16"-16 x 9/16"-18 Br, ORFS

- adjustable, 9/16 x 11/16 x 11/16 inch thread with hitch, Includes: Ref. 26-27

1шт.

27

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face end -012, 90 Duro, .364" ID x .070" Thk

2шт.

29

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

- 90° adjustable, 9/16 x 11/16 inch thread without hitch, Includes: Ref. 30-31

1шт.

31

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face end -012, 90 Duro, .364" ID x .070" Thk

1шт.

32

76349

PLUG,9/16" - 18 ORB

Assy, Incl. Ref. 33 Hex Hd, 9/16"-18 ORB

2шт.

34

273916

PLUG,Hex, 1-5/16" - 12 ORB

Assy, Includes Ref. 35 Hex Hd, 1 5/16"-12 ORB

1шт.

35

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/16 x 1-13/32 x 1/8 inch

1шт.

40

1289236C1

TUBE

- clutch, PTO

1шт.

Prior to Transmission S/N AJB0018756

1шт.

40

1978559C1

HYD TUBE

TUBE - clutch, PTO

1шт.

Transmission S/N AJB0018756 and After

1шт.

41

1289237C1

TUBE

- brake, PTO

1шт.

Prior to Transmission S/N AJB0018756

1шт.

41

1342097C1

TUBE

- brake, PTO

1шт.

Transmission S/N AJB0018756 and After

1шт.

42

535307R1

CLAMP

- tube

2шт.

43

3072723R1

SPACER

- clamp

2шт.

44

30194R1

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

- hex, 6 x 25 mm

2шт.

45

1978417C1

HOSE ASSY.

HOSE - drain, PTO

1шт.

46

1974489C1

HYD TUBE,0.5" OD

TUBE - jump, PTO

1шт.

47

1974505C1

HOSE ASSY.,12.7mm ID x 558.8mm L, SAE 100R2

HOSE - inlet, PTO

1шт.

Ref. 47, 1974505C1 hose - Adapter fitting 201-126 with dimensions of 9/16-18 x 1-3/16-12 (not shown in this catalog) is used on the bottom end of this hose. This adapter is threaded into the adapter plate 94809C2 (not shown in this catalog). This adapter plate is located between the priority valve and the range transmission housing. The previously mentioned adapter is used in all 7100 series tractors prior to transmission S/N AJB0044915.

1шт.

48

1348354C1

HYD TUBE,0.5" OD, 516.4, 55 mm Length

TUBE - return, regulator valve

1шт.

Use only with 1343635C4 valve assembly. See Figure 8-016.

1шт.

50

201-321

ELBOW,45 Degree Elbow, 13/16" - 16 Male ORFS x 9/16" - 18 Male ORB

- 45°adjusting, 9/16 x 13/16 inch thread, Includes: Ref. 51-52

1шт.

52

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Face end

1шт.

53

895-10006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

- flat, 7 x 13 x 2 mm

2шт.

20

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Boss end

1шт.

26

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Boss end

1шт.

30

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Boss end

1шт.

33

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

51

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Boss end

1шт.
