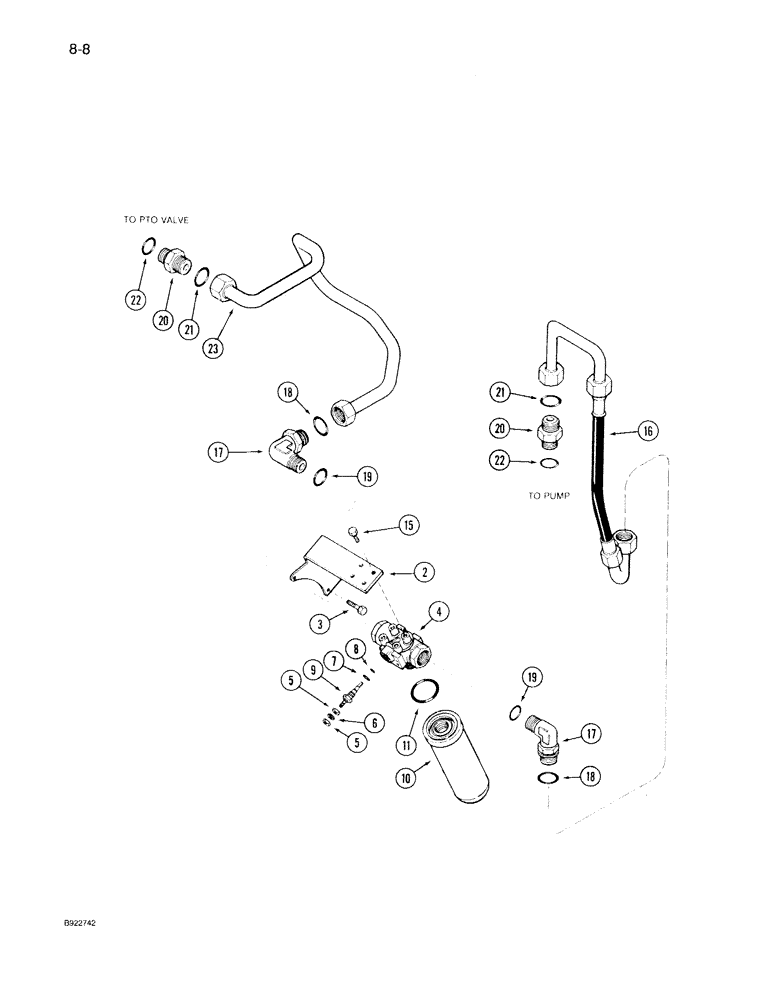

Запчасти Case IH 7140 (8-008) - AUXILIARY HYDRAULIC TRANSMISSION FILTER, TRANSMISSION S/N AJB0044915 AND AFTER (08) - HYDRAULICS

2

1340537C1

SUPPORT

BRACKET - auxiliary filter

1шт.

3

828-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

- hex, 10 x 50 mm, class 10.9

2шт.

1346027C1

FILTER ASSY

FILTER ASSEMBLY - auxiliary hydraulic, Includes: Ref. 4-11

1шт.

4

NSS

NOT SOLD SEPARAT

HEAD - filter

1шт.

N6755

PRESSURE SWITCH

ASSEMBLY - restriction, Includes: Ref. 5-9

1шт.

5

129-667

NUT,#10-32, LH

Chamferred #10-32, LH

2шт.

6

493-21020

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, (3/16") Int Tooth, #10

1шт.

8

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk

1шт.

9

NSS

NOT SOLD SEPARAT

INDICATOR - restriction

1шт.

10

1346028C1

HYDRAULIC OIL FILTER

ELEMENT - filter, Includes: Ref. 11

1шт.

11

1986552C2

O-RING,2.484mm ID x 1.39mm Width

- element

1шт.

15

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

16

1348342C2

HOSE

- pump to auxiliary filter

1шт.

17

201-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

- 90°, 1-7/16-12 face x 1-5/16-12 inch adj O-ring, Includes: Ref. 18-19

2шт.

18

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

- 1-11/64 ID x 7/64 inch

1шт.

19

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

-021, 90 Duro, .926" ID x .070" Thk

1шт.

20

201-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

ADAPTER - straight, 1-7/16-12 face seal x 1-5/16 inch O-ring, Incl. Ref. 21-22

2шт.

21

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

- 1-11/64 ID x 7/64 inch

1шт.

22

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

-021, 90 Duro, .926" ID x .070" Thk

1шт.

23

1348294C1

HYD TUBE,1" OD, 412.8, 128 mm Length

TUBE - auxiliary filter to PTO valve

1шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
