Запчасти Case IH 7140 (7-010) - DIFFERENTIAL BRAKES (07) - BRAKES

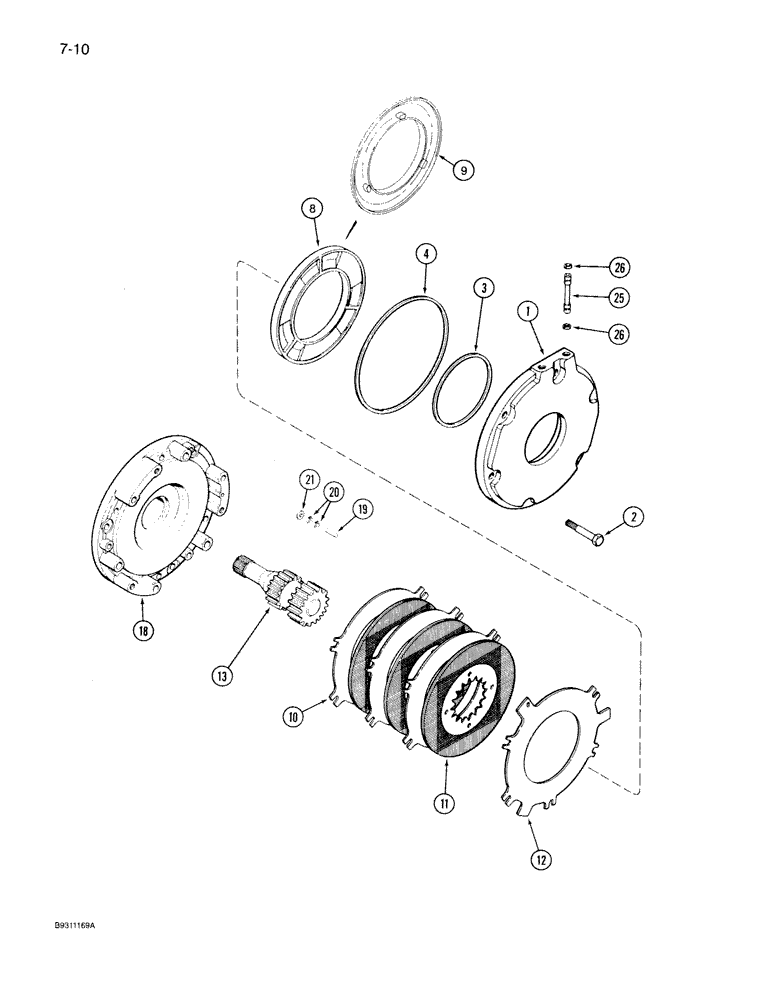

Схема запчастей Case IH 7140 - (7-010) - DIFFERENTIAL BRAKES (07) - BRAKES
11
2
19
8
25
18
9
3
26
26
13
1
12
4
20
21
10

Артикул

Название

Примечание

Количество

1

1342723C2

COVER

- brake, Replaces: P/N 137760C1

2шт.

With the old cover 137760C1 the O-ring PN 238-5278 will not fit correctly. The O-ring ID will have to be stretched to 12 1/4".

1шт.

2

814-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 8.8

Right cover Hex, M16 x 110, 8.8

6шт.

2

814-16100

BOLT,Hex, M16 x 2 x 100mm, Cl 8.8

- hex, 16 x 100 mm, Left cover

6шт.

3

238-5264

O-RING,0.139" Thk x 7.484" ID, -264, Cl 5, 75 Duro

Used with Ref. 8, 120490C1 brake piston -264, 70 Duro, 7.484" ID x .139" Thk

2шт.

4

238-5278

O-RING,0.139" Thk x 11.984" ID, -278, Cl 5, 75 Duro

used with Ref. 8, 120490C1 brake piston -278, 70 Duro, 11.984" ID x .139" Thk

2шт.

8

120490C1

PISTON

- brake, if used

2шт.

9

1997422C1

PISTON

- lock, differential, if used

1шт.

1264581C1

PACKAGE

PLATE KIT - brake, Includes: Ref. 10-12

1шт.

10

120486C1

BRAKE PLATE,192mm ID x 350mm OD x 2.74mm Thk

PLATE - separator, 6 used

8шт.

For Ref. 10 and 11: Models 7130, 7140 and 7150 use a total of 8 friction disks and 8 separator disks, Models 7110 and 7120 use a total of 6 friction disks and 6 separator disks, Models 7210 and 7220 use a total of 6 friction disks and 6 separator disks, Models 7230, 7240 and 7250 use a total of 8 friction disks and 8 separator disks.

1шт.

11

120488C2

BRAKE PLATE

PLATE - friction, 6 used

8шт.

For Ref. 10 and 11: Models 7130, 7140 and 7150 use a total of 8 friction disks and 8 separator disks, Models 7110 and 7120 use a total of 6 friction disks and 6 separator disks, Models 7210 and 7220 use a total of 6 friction disks and 6 separator disks, Models 7230, 7240 and 7250 use a total of 8 friction disks and 8 separator disks.

1шт.

12

139189C1

PLATE

- return, adjuster

2шт.

13

REF

INSTRUCTION

SHAFT - sun gear final drive, See Figure: 6-134 or 6-136

2шт.

18

REF

INSTRUCTION

RETAINER - differential, See Figure: 6-110

2шт.

1349198C1

ADJUSTER

ASSEMBLY - brake, Includes: Ref. 19-23

6шт.

19

NSS

NOT SOLD SEPARAT

TUBE - brake adjuster

1шт.

21

1342928C1

BELLEVILLE WASHER

12шт.

23

NSS

NOT SOLD SEPARAT

RING - retaining, shaft

3шт.

25

120514C2

TUBE,7.47 mm ID, 11.85 mm OD

- inlet, brake oil

4шт.

26

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk

8шт.

27

1342928C1

BELLEVILLE WASHER

- thrust

12шт.

Выбрано товаров: 23
