Запчасти Case IH 7140 (7-002) - BRAKE PEDAL SYSTEM, PRIOR TO P.I.N. JJA0028200 (07) - BRAKES

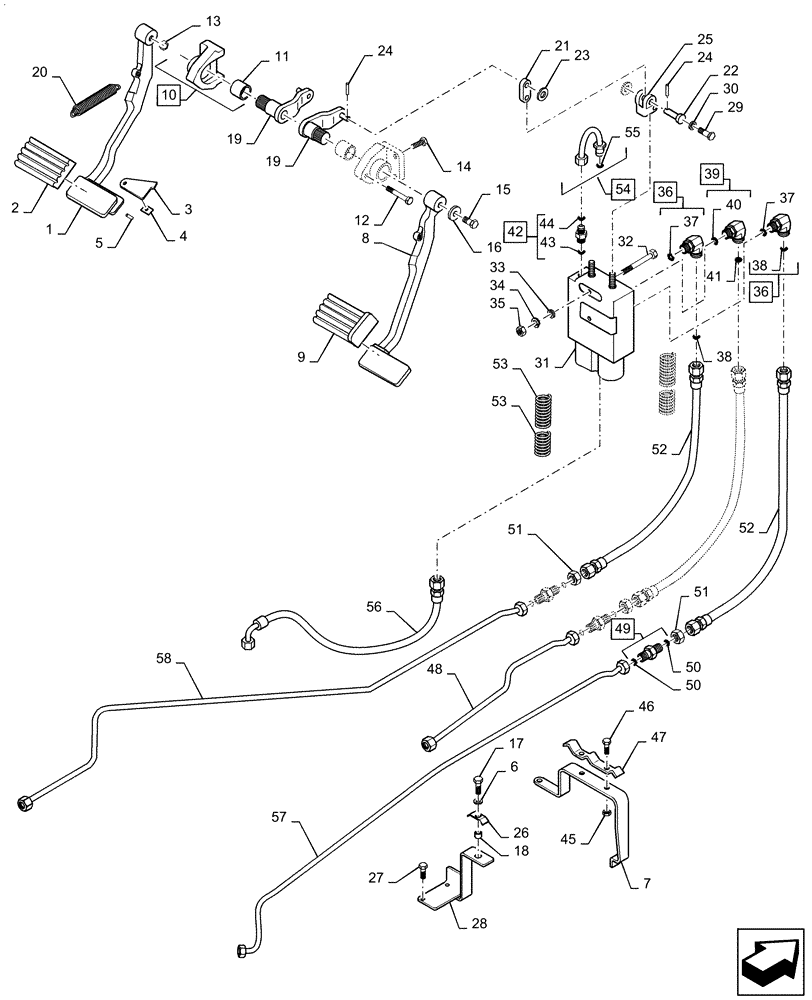

Схема запчастей Case IH 7140 - (7-002) - BRAKE PEDAL SYSTEM, PRIOR TO P.I.N. JJA0028200 (07) - BRAKES
48
23
24
50
36
35
1
26
38
25
31
18
53
56
51
34
24
49
15
47
51
27
16
7
3
33
11
53
19
22
39
21
37
52
13
19
58
32
36
28
41
40
29
20
57
38
50
17
14
54
43
6
55
30
42
8
10
2
5
44
37
52
9
45
12
46
4

Артикул

Название

Примечание

Количество

1

96936C1

PEDAL

Brake, Left

1шт.

2

97067C3

PAD

Pedal, Left

1шт.

3

120451C1

PLATE

Lock, Pedal

1шт.

4

51293D0

SPRING, LEAF

Tension, Pedal

1шт.

5

20895R1

PIN,1/4" x 1", Coiled

1шт.

6

895-10006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

7

1334460C1

BRACKET

Support, Tube

1шт.

8

96937C1

PEDAL

Brake, Right

1шт.

9

97066C2

PAD

Pedal, Right

1шт.

10

120175C1

HOUSING

Assembly, Brake Pedal, Incl 11

2шт.

11

120171C1

BUSHING

Pivot, Housing

1шт.

12

413-538

BOLT,Hex, 5/16" - 18 x 2-3/8", Gr 5

3шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

3шт.

14

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

15

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

16

495-81120

WASHER,.344" x 1 1/4" x .120"

2шт.

17

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

2шт.

18

3072723R1

SPACER

Clamp

2шт.

19

103956C4

LEVER

Pedal and Valve

2шт.

20

104783C1

SPRING

Return, Pedal

2шт.

21

384082R1

LINK

Operating, Brake

2шт.

22

141-63

CLEVIS PIN,1/2" x 1 11/16'"

2шт.

23

495-11053

WASHER,1/2", SAE

4шт.

24

432-816

COTTER PIN,1/8" x 1"

4шт.

25

384083R2

YOKE

YOKE, Brake

2шт.

26

535307R1

CLAMP

Tube

2шт.

27

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

28

1968088C1

BRACKET

Mounting, Cable

1шт.

29

413-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

2шт.

30

492-11031

LOCK WASHER,5/16"

2шт.

31

REF

INSTRUCTION

VALVE ASSEMBLY, Brake, See Figure: 7-012

1шт.

32

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

2шт.

33

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

2шт.

34

492-11038

LOCK WASHER,3/8"

2шт.

35

129-529

NUT,3/8"-16, G5, Hvy

2шт.

36

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Incl 37 - 38

2шт.

37

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Boss End

1шт.

38

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face End

1шт.

39

92967C1

VALVE POPPET

VALVE ASSEMBLY, Check, Brake, Incl 40 - 41

1шт.

40

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Boss End

1шт.

41

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face End

1шт.

42

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Straight Adapter, Incl 43 - 44

1шт.

43

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Boss End

1шт.

44

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face End

1шт.

45

825-1408

NUT,M8, Cl 8

2шт.

46

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

47

1334459C1

CLAMP

Support, Tube Mounting

1шт.

48

1289239C1

HYD TUBE,0.375" OD, 497.7, 50, 29.5 mm Length

Supply, Valve

1шт.

49

201-120

HYD CONNECTOR,11/16"-16, Blkhd, ORFS

Incl 50

3шт.

50

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face End

2шт.

51

201-909

BHD LOCK NUT,Blkhd, 11/16"-16

3шт.

52

1334376C2

HOSE ASSY.,9.5mm ID x 584mm L, SAE 100R1

Supply, Brake

3шт.

53

1968083C3

TUBE,27 mm ID, 34 mm OD

SHIELD, Hose, Cut To Length

1шт.

54

1289242C1

HYD TUBE,0.375" OD, 57.15, 70 mm Length

Return, Brake, Incl 55

1шт.

55

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

56

1334377C2

HOSE ASSY.,9.5mm ID x 914mm L

Return

1шт.

57

1289240C1

HYD TUBE

Brake, Right

1шт.

58

1289241C1

HYD TUBE

Brake, Left

1шт.

Выбрано товаров: 58
