Запчасти Case IH 7140 (6-166) - STEEL REAR WHEELS, 32 AND 34 INCH RIMS (06) - POWER TRAIN

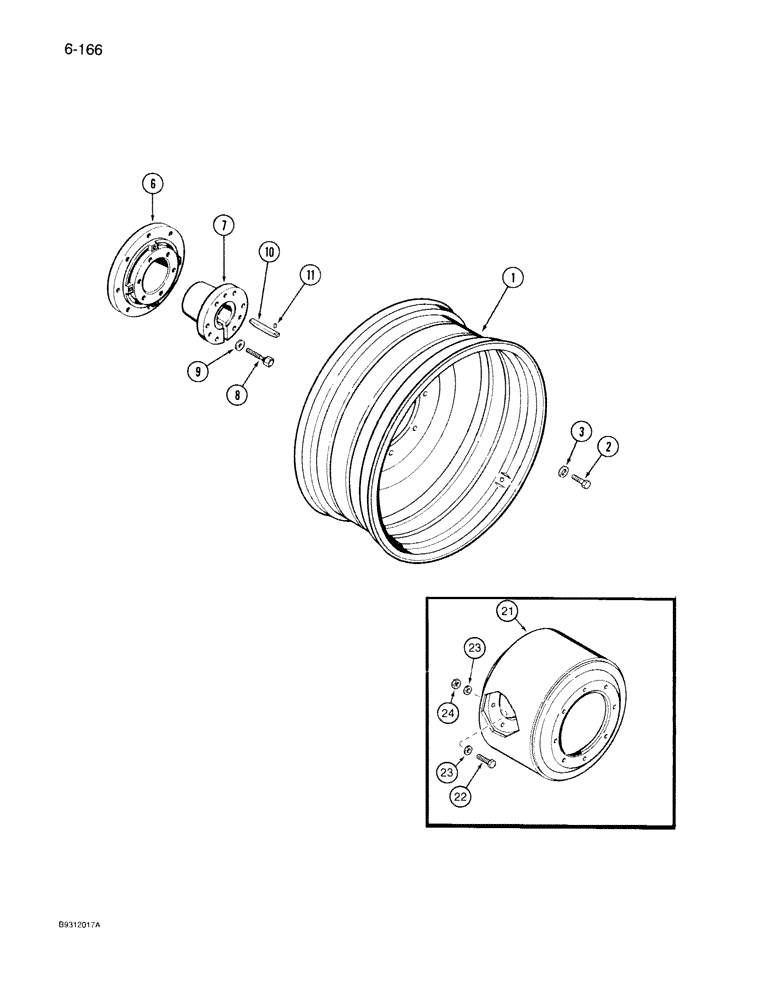

Схема запчастей Case IH 7140 - (6-166) - STEEL REAR WHEELS, 32 AND 34 INCH RIMS (06) - POWER TRAIN
1
7
21
24
10
11
6
8
23
23
3
2
22
9

Артикул

Название

Примечание

Количество

1

1968161C1

RIM

WHEEL - rear, steel, For 24.5-32 tire, 3-3/16 inch offset

2шт.

1

A145462

RIM

WHEEL - rear, steel, For 30.5-32 tire, 2-3/8 inch offset

2шт.

1

102890A1

WHEEL

- rear, steel, For 23.1-34 tire, 4-1/8 inch offset, Replaces: P/N 1968162C1 wheel

2шт.

2

1348513C1

BOLT

- hex, 3/4 NC x 2-1/4 inch, grade 8

16шт.

3

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

16шт.

A67685

PACKAGE

HUB ATTACHMENT - wheel, 8 bolt, Machinery Item, Includes: Ref. 6-11

1шт.

6

A145322

HUB

- wheel, tapered

2шт.

7

1289233C1

HUB

BUSHING - wheel, 4 inch ID

2шт.

8

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

SCREW - bushing

12шт.

9

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

12шт.

10

A63219

KEY

- axle, 3/4 x 6 inch

2шт.

11

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, 1/4" x 1/2", Slotted

2шт.

A67430

PACKAGE

SPACER KIT - 16 inch, Includes: Ref. 21-24

1шт.

21

A149059

BUSHING

SPACER - dual wheel, 8 bolt, 16 inch

2шт.

22

1348513C1

BOLT

- hex, 3/4 NC x 2-1/4 inch, grade 8

16шт.

23

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

32шт.

24

129-572

NUT,3/4"-10, G8

16шт.

Выбрано товаров: 17
