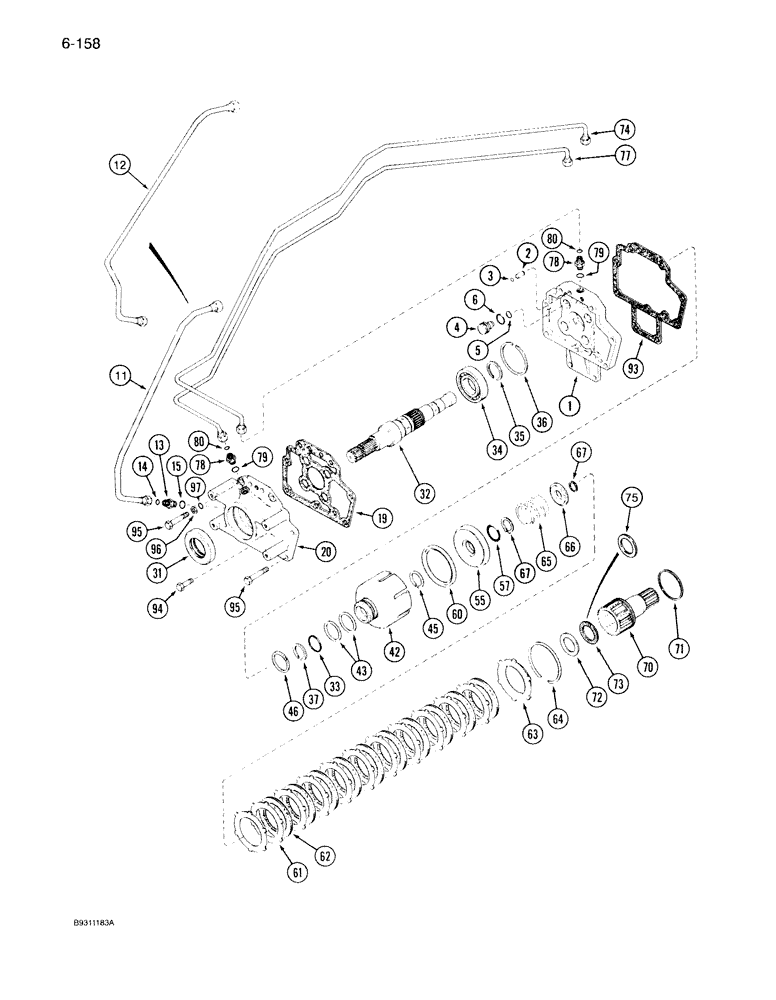

Запчасти Case IH 7140 (6-158) - PTO ASSY, IF EQUIPPED, 7130 & 7140 TRACTORS TRANS. S/N AJB0059710 & AFTER, ALL 7150 TRACTORS (06) - POWER TRAIN

1997459C1

PTO

ASSEMBLY - 1000 rpm, Includes: Ref. 1-93

1шт.

1

1997571C1

HOUSING

ASSEMBLY - PTO, Includes: Ref. 2-3

1шт.

2

837-12030

DOWEL,M12 x 30mm OAL

4шт.

3

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk

2шт.

4

1289335C3

PISTON

ASSEMBLY - brake, anti-creep, Replaces: P/N 1289335C2

4шт.

5

238-5018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 5, 75 Duro

-018, 70 Duro, .739" ID x .070" Thk

4шт.

6

238-5216

O-RING,0.139" Thk x 1.109" ID, -216, Cl 5, 75 Duro

4шт.

11

1997583C2

TUBE

- brake supply, if used, Replaces: P/N 1997583C1

1шт.

12

107813A1

TUBE

- PTO lubrication, if used

1шт.

13

201-126

HYD CONNECTOR,13/16"-16 ORFS x 9/16"-20 ORB

ADAPTER - straight, 13/16-16 face seal x 9/16-18 inch O-ring, Includes: Ref. 14-15

1шт.

14

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

19

1997474C2

GASKET

-, Serial Range: cover-housing

1шт.

20

1997465C1

COVER

ASSEMBLY - housing

1шт.

25

108522C1

WASHER

- copper seal, 1/2 x 23/32 x 1/16 inch, not shown

2шт.

31

A140930

OIL SEAL

- oil

1шт.

32

1997463C1

SHAFT

- output

1шт.

33

238-5138

O-RING,0.103" Thk x 2.112" ID, -138, Cl 5, 75 Duro

1шт.

34

1963946C1

BALL BEARING,60mm ID x 110mm OD x 22mm W

BEARING ASSEMBLY - ball

1шт.

35

357194R1

RING

- retaining, external

1шт.

36

324049R1

RING

- retaining, internal

1шт.

37

271130R1

RING

- retaining, external

1шт.

42

1997478C1

CUP

- clutch

1шт.

43

381485R1

RING,67.13mm ID x 72.21mm OD x 3.12mm Thk

- seal, cup

2шт.

45

130489C1

RING

- retaining, external

1шт.

46

1997576C1

SEALING RING

RING - seal

1шт.

55

1997477C1

PISTON

- clutch

1шт.

57

238-5328

O-RING,0.21" Thk x 1.85" ID, -328, Cl 5, 75 Duro

4шт.

60

381488R1

RING,120.78mm ID x 134.34mm OD x 4.78mm Thk

SEAL - piston, clutch

1шт.

1277392C1

SET OF PARTS

DISC AND PLATE KIT - clutch, Includes: Ref. 61-62

1шт.

61

NSS

NOT SOLD SEPARAT

DISC - clutch

10шт.

62

NSS

NOT SOLD SEPARAT

PLATE - clutch

10шт.

63

1997561C2

LARGE PLATE

PLATE - backing, clutch, Replaces: P/N 1997561C2

1шт.

64

381492R1

CIRCLIP,M137.16 x 3.07mm Thk, Int

RING - snap, disc

1шт.

65

381493R1

SPRING

- release

1шт.

66

1997479C1

STOP

RETAINER - spring

1шт.

67

101-11175

SNAP RING,#175, 1.640", Ext

RING - clutch release spring return

1шт.

70

1997698C1

SHAFT ASSY.

SHAFT - drive, clutch, Includes: Ref. 70A-70B

1шт.

70a

R21491

NEEDLE BEARING,1.75" ID x 2.125" OD x 0.75"

BEARING - roller, 2-1/4 inch dia., outer, not shown

1шт.

70b

205369R91

NEEDLE BEARING,Needle, 41.26mm ID x 50.81mm OD x 15.88mm W

BEARING - roller, 2 inch dia., inner, not shown

1шт.

71

1997689C1

SEAL,89.53mm ID x 95.53mm OD x 2.88mm Thk

- lubrication

1шт.

72

A54021

WASHER

RACE - thrust, 2-1/2 inch

2шт.

73

A54022

THRUST BEARING,44.56mm ID x 63.13mm OD x 1.98mm W

BEARING - thrust, no longer used, for service order Ref. 75, 1997941C1 thrust washer

1шт.

For model 7150, use 1 ea. of 1997941C1 fiber washer and 1 ea. A54021 race. The new parts will also be found in the later serial number 7130/7140 tractors. The new parts take up the same space as the 3 old parts, 2 pcs. of A54021 and 1 pc. of A54022.

1шт.

74

1997587C1

HYD TUBE

TUBE - clutch

1шт.

75

1997941C1

THRUST WASHER,44.83mm ID x 63.5mm OD x 3.54mm Thk

WASHER - thrust

1шт.

77

1997585C1

HYD TUBE

TUBE - lubrication

1шт.

78

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Adapter - straight, Incl Ref. 79-80 11/16"-16 ORFS x 9/16"-18 ORB

2шт.

80

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

93

1997475C1

GASKET,0.79mm Thk

-, Serial Range: housing-frame

1шт.

94

613-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

2шт.

94

628-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

- hex, 12 mm - 1.75 x 40 mm, class 10.9

2шт.

95

813-12075

BOLT,Hex, M12 x 1.75 x 75mm, Cl 8.8

- hex, 12 x 75 mm

6шт.

96

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

97

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk

2шт.

15

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

79

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
