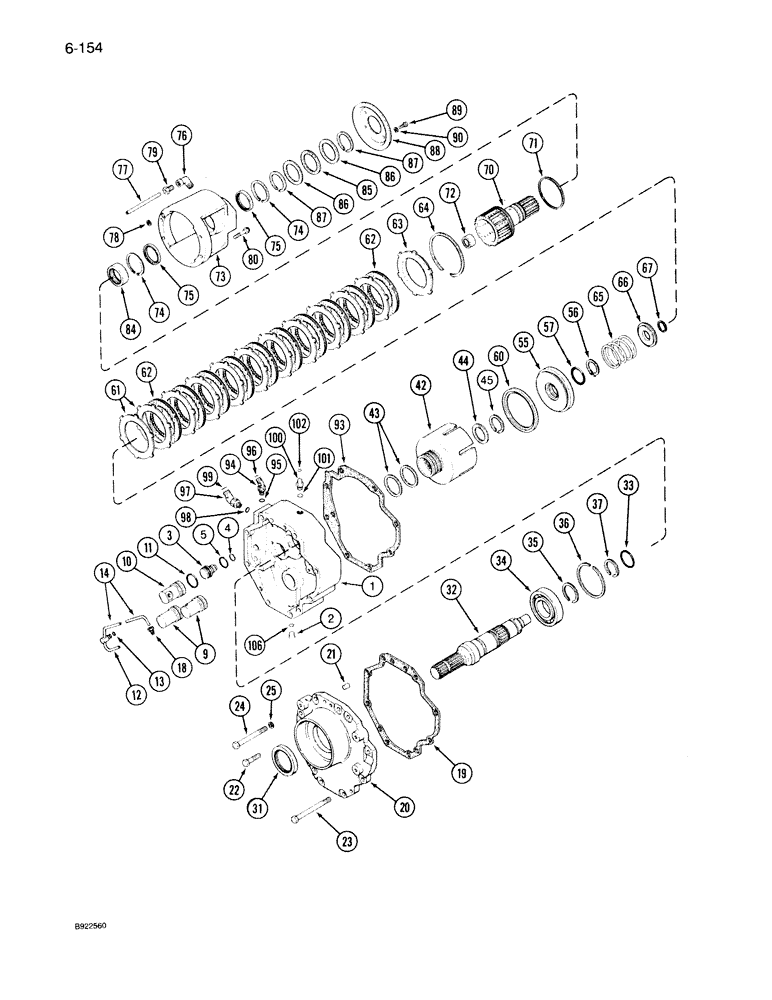

Запчасти Case IH 7140 (6-154) - PTO ASSEMBLY, IF EQUIPPED, PRIOR TO TRANSMISSION S/N AJB0059710 (06) - POWER TRAIN

93379C3

PTO

ASSEMBLY - 1000 rpm, Includes: Ref. 1-90

1шт.

1

1349453C1

HOUSING

ASSEMBLY - PTO

1шт.

2

9625178

PLUG,9/16" - 18 ORB

1шт.

3

1289335C2

PISTON

ASSEMBLY - brake, anti-creep

3шт.

4

238-5018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 5, 75 Duro

-018, 70 Duro, .739" ID x .070" Thk

3шт.

5

238-5216

O-RING,0.139" Thk x 1.109" ID, -216, Cl 5, 75 Duro

3шт.

9

68074C1

CYLINDER

- brake, anti-creep

2шт.

10

68073C1

CYLINDER

- brake, anti-creep

1шт.

11

238-5029

O-RING,0.07" Thk x 1.489" ID, -29, Cl 5, 75 Duro

-029, 70 Duro, 1.489" ID x .070 Thk

3шт.

12

68075C1

TUBE

- supply, brake

1шт.

13

238-5010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

-010, 70 Duro, .239" ID x .070" Thk

1шт.

14

68077C1

TUBE

- supply, brake

1шт.

18

222-502

TUBE NUT,7/16"-24

NUT - hex, 7/16-24 inch thread

4шт.

19

139287C2

GASKET

- cover

1шт.

20

139263C1

COVER

ASSEMBLY - housing, Includes: Ref. 21

1шт.

21

19846R1

DOWEL,1/2" x 1 1/4"

PIN - dowel, 1/2 x 1-1/4 inch

2шт.

22

413-826

BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 5

- hex, 1/2 NC x 1-5/8 inch

2шт.

23

813-12130

BOLT,Hex, M12 x 1.75 x 130mm, Cl 8.8

- hex, 12 mm - 1.75 x 130 mm

6шт.

24

813-12140

BOLT,Hex, M12 x 1.75 x 140mm, Cl 8.8

- hex, 12 mm - 1.75 x 140 mm

2шт.

25

108522C1

WASHER

- seal, copper, 1/2 x 23/32 x 1/16 inch

2шт.

31

148955C1

SEAL

- oil, shaft

1шт.

32

92500C1

SHAFT

- output

1шт.

33

238-5138

O-RING,0.103" Thk x 2.112" ID, -138, Cl 5, 75 Duro

1шт.

34

1963946C1

BALL BEARING,60mm ID x 110mm OD x 22mm W

BEARING ASSEMBLY - ball

1шт.

35

357194R1

RING

- retaining, external

1шт.

36

324049R1

RING

- retaining, internal

1шт.

37

271130R1

RING

- retaining, external

1шт.

42

1268999C1

HOUSING

- clutch

1шт.

43

381485R1

RING,67.13mm ID x 72.21mm OD x 3.12mm Thk

- seal, cup

2шт.

44

1285725C1

THRUST WASHER,48mm ID x 65mm OD x 3.5mm Thk

- thrust, carrier

1шт.

45

68625C1

RING

- retaining, external

1шт.

55

68080C2

PISTON

- clutch

1шт.

56

258400C1

SNAP RING,#187, Ext

Ring, Snap, #187, Ext

1шт.

57

238-5328

O-RING,0.21" Thk x 1.85" ID, -328, Cl 5, 75 Duro

4шт.

60

381488R1

RING,120.78mm ID x 134.34mm OD x 4.78mm Thk

SEAL - piston, clutch

1шт.

1277392C1

SET OF PARTS

DISC AND PLATE KIT - clutch, Includes: Ref. 61-62

1шт.

61

NSS

NOT SOLD SEPARAT

DISC - clutch

11шт.

62

NSS

NOT SOLD SEPARAT

PLATE - clutch

10шт.

63

92490C1

CLUTCH PLATE,103.25mm ID x 145.8mm OD x 14mm Thk

- backing, clutch

1шт.

64

381492R1

CIRCLIP,M137.16 x 3.07mm Thk, Int

RING - snap, disk

1шт.

65

381493R1

SPRING

- release

1шт.

66

381494R1

RETAINER

- spring

1шт.

67

370504R1

RING

- retaining, external

1шт.

70

92510C1

SHAFT

- drive

1шт.

71

92488C1

SEAL,97.53mm ID x 103.53mm OD x 2.88mm Thk

SEAL - lubrication

1шт.

72

308674R1

BEARING, NEEDLE,Needle, 25.4mm ID x 33.35mm OD x 19.05mm W

BEARING ASSEMBLY - roller

1шт.

73

92492C2

CARRIER

- clutch

1шт.

74

28235R1

SNAP RING,#250, 2.673", Int

RING - retaining

2шт.

75

92511C1

SEAL

SEAL - lubrication, carrier

2шт.

76

42411D

ELBOW,90 Degree x 3/8" NPT x 9/16"-20

- 90°, 9/16-20 female thread x 3/8 inch PT

1шт.

77

1285755C1

TUBE,0.375" OD, 135 mm Length

- lubrication, PTO

1шт.

78

239-5012

O-RING,Square, 0.062" Thk x 0.375" ID, -12, Cl 5, 75 Duro

1шт.

79

222-504

TUBE NUT,9/16"-20

NUT - hex tube, 9/16-20 inch thread

1шт.

80

27935R1

12 PT SCREW,Flg, 3/8"-16 x 1 3/4"

SCREW - 12 point head, 3/8 NC x 1-3/4 inch

4шт.

84

1277396C1

BEARING, NEEDLE

BEARING ASSEMBLY - roller, needle

1шт.

85

1286466C1

BEARING, THRUST

BEARING ASSEMBLY - thrust

1шт.

86

92502C1

THRUST WASHER,50.05mm ID x 69.95mm OD x 3.05mm Thk

WASHER - thrust, bearing

2шт.

87

327068R1

RING, SNAP

RING - snap, bearing

2шт.

88

1963868C1

RING, SNAP

RETAINER - bearing

1шт.

89

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

4шт.

90

92-11025

LOCK WASHER,6.4mm ID x 12.37mm OD x 1.57mm Thk

WASHER, LOCK, 1/4"

4шт.

93

139286C3

GASKET

- housing

1шт.

94

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

- 90°, 11/16-16 face x 9/16-18 inch adj O-ring, Replaces: P/N 201-315, Includes: Ref. 95-96

1шт.

Ref. 94, 201-101 IS STRAIGHT ADAPTER

1шт.

96

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face end -012, 90 Duro, .364" ID x .070" Thk

1шт.

97

201-321

ELBOW,45 Degree Elbow, 13/16" - 16 Male ORFS x 9/16" - 18 Male ORB

- 45°, 13/16-16 face x 9/16-18 inch adj O-ring, Includes: Ref. 98 and 99

1шт.

99

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face end -014, 90 Duro, .489" ID x .070" Thk

1шт.

100

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Adapter - straight, Replaces P/N 201-315, Incl Ref. 101-102 11/16"-16 ORFS x 9/16"-18 ORB

1шт.

102

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

95

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Boss end

1шт.

98

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Boss end

1шт.

101

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

106

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
