Запчасти Case IH 7140 (6-144) - TRANSMISSION PUMP DRIVE, PRIOR TO TRANSMISSION S/N AJB0041175 (06) - POWER TRAIN

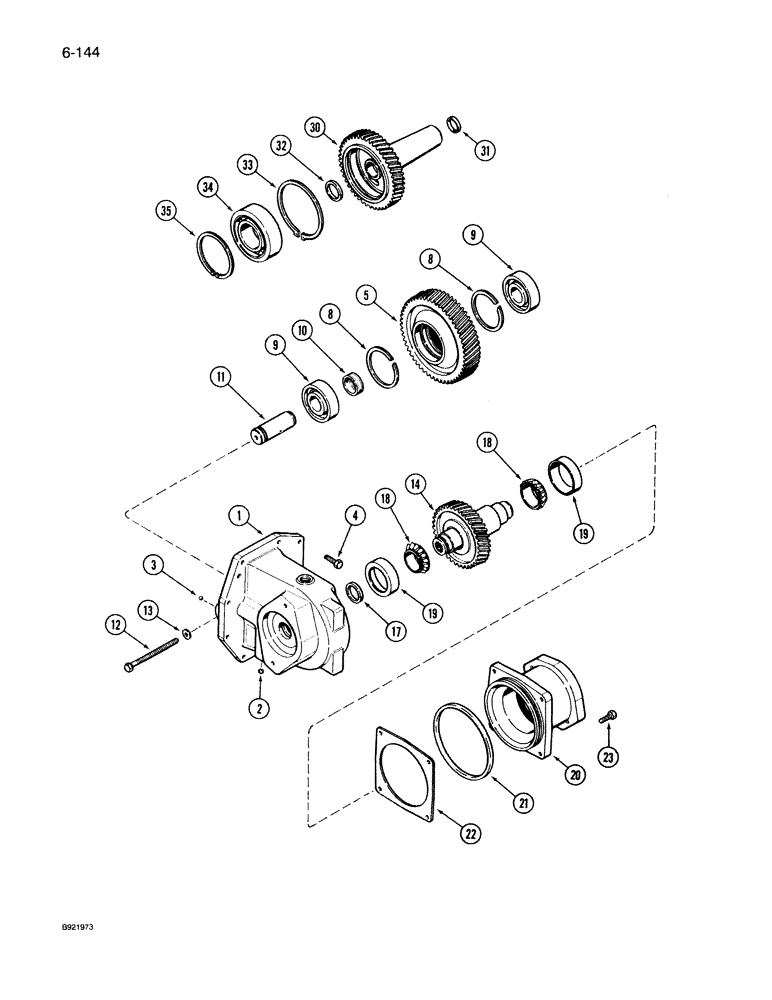

Схема запчастей Case IH 7140 - (6-144) - TRANSMISSION PUMP DRIVE, PRIOR TO TRANSMISSION S/N AJB0041175 (06) - POWER TRAIN
32
4
10
31
35
19
12
9
11
21
3
13
1
5
14
20
9
33
30
18
23
18
2
22
34
8
19
17
8

Артикул

Название

Примечание

Количество

1

1286149C1

HOUSING

ASSEMBLY - drive, transmission pump, Includes: Ref. 2-3

1шт.

2

1286158C1

PLUG

- orifice

1шт.

3

211-210

BALL,3/8" Dia

- detent, 3/8 inch OD

1шт.

4

628-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

8шт.

5

1286045C1

GEAR WHEEL

GEAR - idler

1шт.

8

472163R1

RING

- snap

2шт.

9

93315C1

BALL BEARING,35 mm ID x 80 mm OD x 21 mm

ASSEMBLY - ball

2шт.

10

93316C1

SPACER,35.36mm ID x 42.87mm OD x 12.3mm L

- gear, idler

1шт.

11

1286151C1

SHAFT

- gear, idler

1шт.

12

814-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 8.8

- hex, 10 x 130 mm

1шт.

13

896-12010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

- flat, 11 x 21 x 2.5 mm

1шт.

14

1286047C1

PINION SHAFT

GEAR - drive, pump

1шт.

17

116797C2

RING

- seal, gear

1шт.

18

399933C91

ROLLER BEARING,45.24mm ID x 19.81mm W

CONE - bearing 1-25/32 ID

2шт.

19

399934C1

BEARING CUP,73.43mm OD x 15.75mm W

CUP - bearing

2шт.

20

146802C1

CAGE

- bearing

1шт.

21

238-5257

O-RING,0.139" Thk x 5.859" ID, -257, Cl 5, 75 Duro

1шт.

1264557C1

SHIM KIT

- pump drive, Includes: Ref. 22

1шт.

22

120946C1

SHIM,159mm ID x 176mm OD x 0.08mm Thk

Pump drive, 3 in kit 0.080mm Thk

1шт.

22

120947C1

SHIM,159mm ID x 176mm OD x 0.1mm Thk

Pump drive, 3 in kit 0.100mm Thk

1шт.

22

120948C1

SHIM,159mm ID x 176mm OD x 0.13mm Thk

Pump drive, 3 in kit 0.130mm Thk

1шт.

22

120949C1

SHIM,159mm ID x 176mm OD x 0.3mm Thk

Pump drive, 3 in kit 0.300mm Thk

1шт.

22

149011C1

SHIM,159mm ID x 176mm OD x 0.76mm Thk

Pump drive, 3 in kit 0.76mm Thk

1шт.

23

613-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

- hex, 10 mm - 1.50 x 30 mm

4шт.

30

1286014C1

GEAR WHEEL

GEAR - drive, pump, PTO

1шт.

31

238-5216

O-RING,0.139" Thk x 1.109" ID, -216, Cl 5, 75 Duro

PTO drive -216, 70 Duro, 1.109" ID x .139" Thk

1шт.

32

1286023C1

RING,Locking, 43.31mm ID x 47.31mm OD x 2.87mm Thk

- seal, gear, PTO drive

1шт.

33

114349H1

SNAP RING,#237, Ext

RING, SNAP, , PTO drive #237, Ext

1шт.

34

A20291

BALL BEARING,2.3616" ID x 4.3307" OD

BEARING - shaft, PTO drive

1шт.

35

895107C1

SNAP RING,#433, 4.641", Int

RING - snap, internal, PTO drive

1шт.

Выбрано товаров: 30
