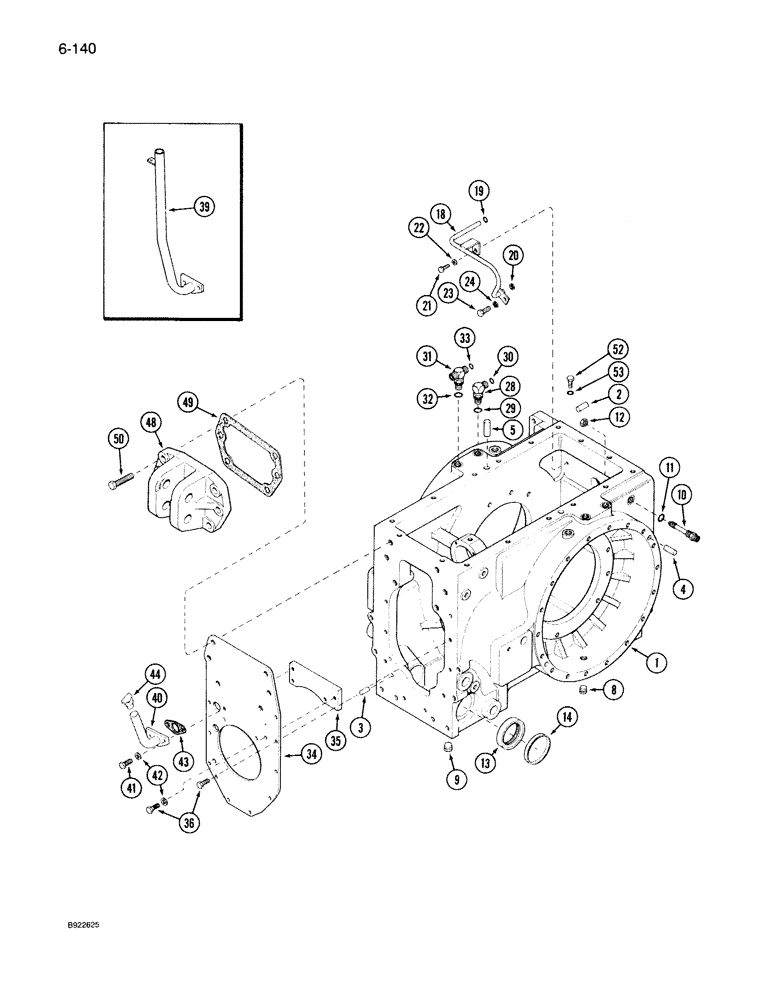

Запчасти Case IH 7140 (6-140) - REAR AXLE HOUSING, TRANSMISSION S/N AJB0014372 THROUGH AJB0053290 (06) - POWER TRAIN

1

1981085C1

HOUSING ASSY.

HOUSING ASSEMBLY - axle, rear, models without 3-point hitch; order 1347908C2 housing on Figure 6-142 and 1998043C1 kit on Figure 9-014 for models with 3-point hitch, Includes: Ref. 2 thru 9

1шт.

Part of Rear Axle Housing Kit P/N 1342336C3

1шт.

2

837-16035

DOWEL,M16 x 35

PIN - dowel, 16 x 35 mm

1шт.

3

837-12025

DOWEL,M12 x 25

PIN - dowel, 12 x 25 mm

2шт.

4

837-16040

DOWEL,M16 x 40

PIN - dowel, 16 x 40 mm

4шт.

5

19994R1

DOWEL,3/4" x 2"

PIN - dowel, 3/4 x 2 inch

2шт.

8

221-34

DRAIN PLUG,Hex Soc, 1/2"-14, NPTF

PLUG - square socket, 1/2 inch PT

2шт.

9

221-845

PLUG,Hex Soc, 3/4"-14

- square socket head, 3/4 inch PT

1шт.

10

93200C1

UNION

ADAPTER - bulkhead, 11/16-16 face seal x 9/16-18 inch flare

1шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

12

218-1254

LOCK NUT,Blkhd, 9/16"-18

NUT, LOCK, Blkhd, 9/16"-18

1шт.

13

1286928C3

RING,79.24mm ID x 108.5mm OD x 18.18mm Thk

- seal retaining

2шт.

14

383331R1

PLUG,Cup, 4.26"

- cup, 4-17/64 inch OD, Without hitch

2шт.

18

94791C1

TUBE

- lubrication, bevel gear

1шт.

19

238-6112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

1шт.

20

239-5112

O-RING,Rect, .5" ID x .688" OD, Cl 5

1шт.

21

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

22

892-11010

LOCK WASHER,M10

1шт.

23

828-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

- hex, 12 x 25 mm

1шт.

24

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

1шт.

28

201-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

- 90°, 13/16-16 face x 3/4-16" adj O-ring, Incl. Ref. 29-30

3шт.

29

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Boss end

1шт.

30

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face end -014, 90 Duro, .489" ID x .070" Thk

1шт.

31

201-402

TEE,13/16"-18 x 3/4"-16 Br, ORFS

- 3/4-16 adj O-ring branch x 13/16-16 inch face x face, Includes: Ref. 32-33

1шт.

32

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Boss end

1шт.

33

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face end -014, 90 Duro, .489" ID x .070" Thk

2шт.

34

1981220C1

LARGE PLATE

PLATE - adapter, PTO

1шт.

GASKET USED WITH Ref. 34 IS 139332C1

1шт.

35

1981233C1

BAR

- adapter, PTO

1шт.

36

30042R1

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, 12 x 30 mm

2шт.

39

1334465C2

TUBE,458, 55.8 mm Length

- oil fill, transmission

1шт.

Prior to Transmission S/N AJB0044915

1шт.

40

1348202C1

TUBE,90 mm Length

- oil fill, transmission

1шт.

Transmission S/N AJB0044915 thru AJB0060499

1шт.

40a

103141A1

TUBE,120 mm Length

- oil fill, not shown

1шт.

Transmission S/N AJB0060500 and after

1шт.

41

613-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

- hex, 12 x 35 mm

2шт.

42

108522C1

WASHER

- seal, copper, 1/2 x 23/32 x 1/16 inch

2шт.

43

139395C1

GASKET,0.79mm Thk

- tube, dipstick guide

1шт.

44

831821C1

PLUG

CAP - fill, transmission

1шт.

48

REF

INSTRUCTION

BRACKET - link mounting, See Figure 9-006

1шт.

49

142630C1

GASKET

- cover, if used

1шт.

50

828-20080

BOLT,Hex, M20 x 2.5 x 80mm, Cl 10.9

- hex, 20 x 80 mm, class 10.9

6шт.

52

214389

PLUG,3/4" - 16 ORB

Includes Ref. 53 Hex Hd, 3/4"-16 ORB

2шт.

53

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

1342336C3

SET OF PARTS

KIT - axle housing, rear, models without 3-point hitch, Includes: Refs. 1, 34, 35, 36 and 42 above

1шт.
