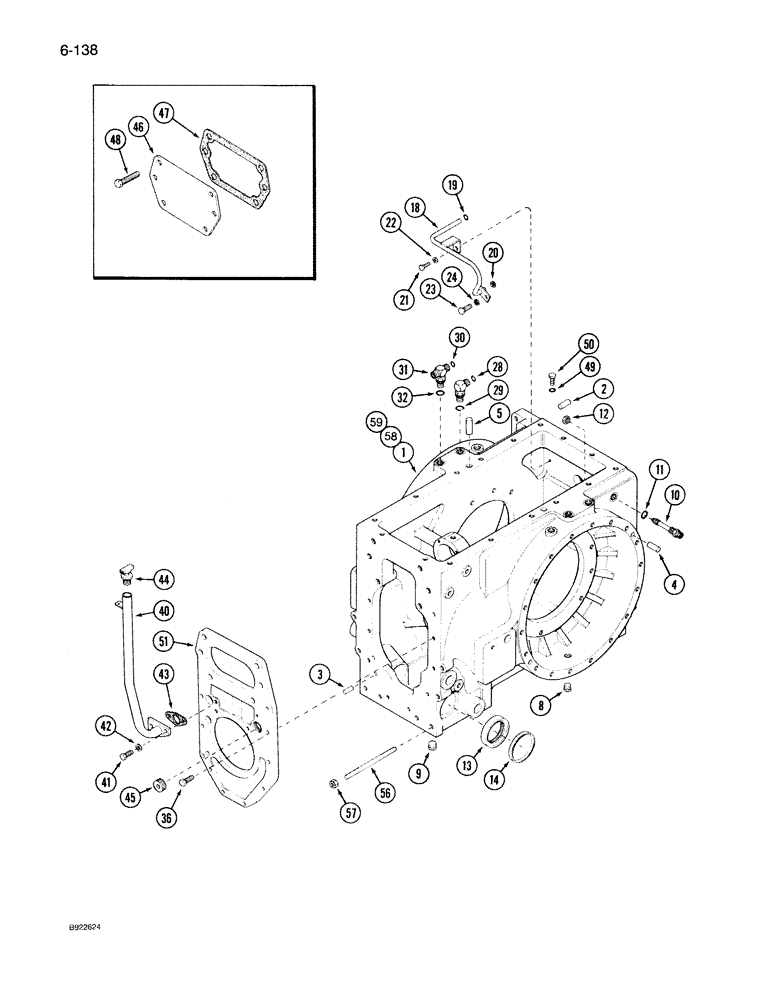

Запчасти Case IH 7140 (6-138) - REAR AXLE HOUSING, PRIOR TO TRANSMISSION S/N AJB0014372 (06) - POWER TRAIN

1

1981085C1

HOUSING ASSY.

HOUSING ASSEMBLY - axle, rear, see Ref. 58 and 59 kits shown below, Includes: Ref. 2-9

1шт.

2

837-16035

DOWEL,M16 x 35

PIN - dowel, 16 x 35 mm

1шт.

3

837-12030

DOWEL,M12 x 30mm OAL

2шт.

4

837-16040

DOWEL,M16 x 40

PIN - dowel, 16 x 40 mm

4шт.

5

19994R1

DOWEL,3/4" x 2"

PIN - dowel, 3/4 x 2 inch

2шт.

8

221-34

DRAIN PLUG,Hex Soc, 1/2"-14, NPTF

PLUG - square socket, 1/2 inch PT

2шт.

9

221-845

PLUG,Hex Soc, 3/4"-14

- square socket head, 3/4 inch PT

1шт.

10

93200C1

UNION

- hydraulic, differential lock

1шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

12

218-1254

LOCK NUT,Blkhd, 9/16"-18

NUT, LOCK, Blkhd, 9/16"-18

1шт.

13

1286928C3

RING,79.24mm ID x 108.5mm OD x 18.18mm Thk

- retaining, seal, With hitch

2шт.

14

383331R1

PLUG,Cup, 4.26"

- cup, 4-17/64 inch OD, Without hitch

2шт.

18

94791C1

TUBE

- lube, bevel gear

1шт.

19

470585R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

- 1/2 x 11/16 inch

1шт.

20

21254R1

O-RING,0.487" ID x 0.693" OD x 0.103"

RING - seal, 1/2 x 11/16 inch

1шт.

21

30019R1

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

1шт.

22

933965R1

LOCK WASHER,M10

1шт.

23

30041R1

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

- hex, 12 x 25 mm

1шт.

24

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

1шт.

28

201-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

- 90°, adjustable, 3/4 x 13/16" thread, Incl. Ref. 29-30

3шт.

29

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Boss end

1шт.

30

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face end -014, 90 Duro, .489" ID x .070" Thk

1шт.

31

201-402

TEE,13/16"-18 x 3/4"-16 Br, ORFS

- adjustable branch, 3/4 x 13/16 inch thread, Includes: Ref. 32-33

1шт.

32

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Boss end

1шт.

33

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- face end, 41/64 x 13/16 x 3/32 inch, not shown

2шт.

36

613-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

- hex, 12 x 35 mm

2шт.

36

931703R1

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

- hex, 12 x 30 mm

2шт.

40

1334465C2

TUBE,458, 55.8 mm Length

- fill, transmission

1шт.

41

828-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

- hex, 12 x 45 mm

1шт.

41

30041R1

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

- hex, 12 x 25 mm

1шт.

42

108522C1

WASHER

- seal, copper

1шт.

43

139395C1

GASKET,0.79mm Thk

- tube, dipstick guide

1шт.

44

831821C1

PLUG

CAP - fill, transmission

1шт.

45

23391R1

PLUG

- square socket head, 1-1/4 inch PT, If equipped

1шт.

46

139334C1

COVER

- bracket, upper link, Without hitch

1шт.

47

142630C1

GASKET

- cover

1шт.

48

30095R1

BOLT,Hex, M20 x 2.5 x 80mm, Cl 10.9

- hex, 20 x 80 mm, With cover

6шт.

48

30089R1

BOLT,Hex, M20 x 2.5 x 50mm, Cl 10.9, Full Thd

- hex, 20 x 50 mm, Without cover

6шт.

49

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

50

214389

PLUG,3/4" - 16 ORB

2шт.

51

139331C2

PLATE

- adapter, PTO

1шт.

the gasket for Ref. 51, 139331C2 plate is 139332C1.

1шт.

56

1981093C1

STUD

- support, 16 x 60 mm, Without hitch

2шт.

56

1981087C1

STUD

- support, 16 x 210 mm, With hitch

2шт.

57

30170R1

NUT,M16, Cl 10

- hex, 16 mm, class 10.9

2шт.

58

1998042C1

SET OF PARTS

KIT - axle housing, rear, models with 3-point hitch, Replaces: 1981137C2 or 1342335C4 housing, See Figure 6-142 for components, also order 1998043C1 kit on Figure 9-014

1шт.

59

1342336C3

SET OF PARTS

KIT - axle housing, rear, models without 3-point hitch, See Figure 6-140 for components

1шт.
