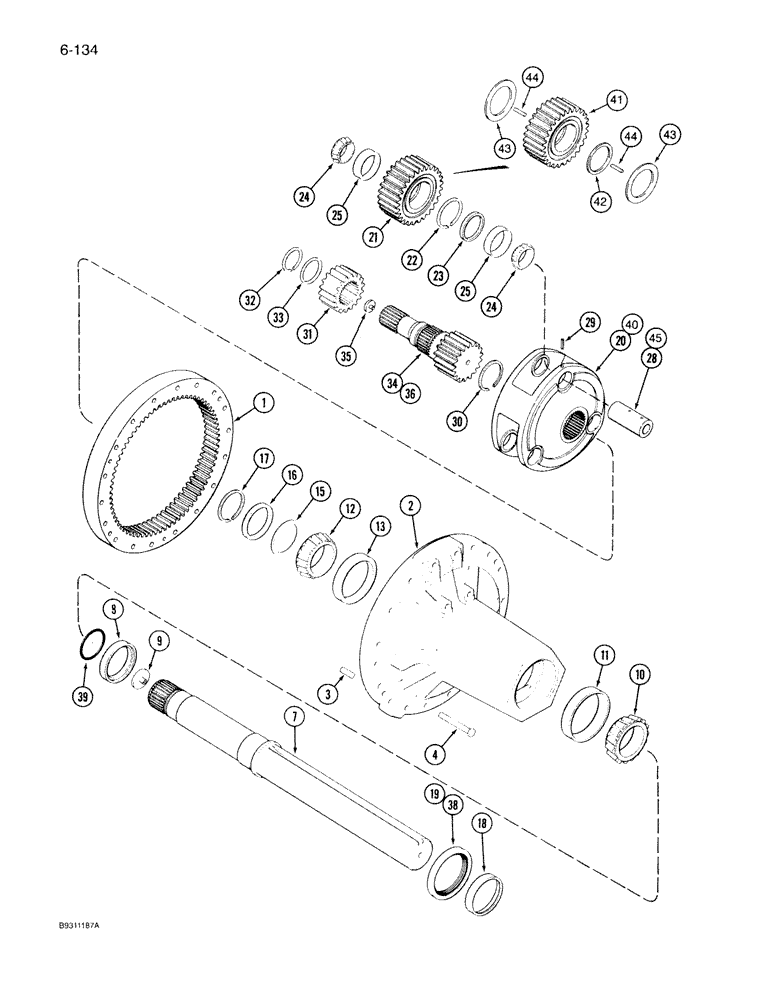

Запчасти Case IH 7140 (6-134) - REAR AXLE AND CARRIERS, 114 INCH AXLE (06) - POWER TRAIN

1

1259670C2

RING GEAR

GEAR - ring axle, Replaces:P/N 1259670C1

2шт.

2

1968489C1

CARRIER

ASSEMBLY - axle, Includes: Ref. 3

2шт.

3

837-16040

DOWEL,M16 x 40

PIN - dowel, 16 x 40 mm

2шт.

4

813-16140

BOLT,Hex, M16 x 2 x 140mm, Cl 8.8

- hex, 16 x 140 mm

32шт.

7

1968338C4

SHAFT

AXLE ASSEMBLY - rear, 4 inch diameter, Replaces: P/N 1968338C3, Includes: Ref. 8-9

2шт.

8

1968334C1

BUSHING,100.41mm ID x 119.85mm OD x 19.5mm L

- spacer, bearing

1шт.

9

1981270C1

INSERT

- rear axle

1шт.

10

630874C1

ROLLER BEARING,99.99mm ID x 41mm W

CONE - bearing

2шт.

11

630899C1

BEARING CUP

CUP - bearing

2шт.

12

123869R1

ROLLER BEARING,95.263 mm ID x 36.535 mm

CONE - bearing, inner

2шт.

13

619697C1

BEARING CUP,149.98mm OD x 26.90mm W

CUP - bearing

2шт.

1264591C1

SHIM KIT

- bearing, Includes: Ref. 15

1шт.

15

143921C1

SHIM,95mm ID x 120mm OD x 0.76mm Thk

Bearing 0.760mm Thk

1шт.

15

143922C1

SHIM,95mm ID x 120mm OD x 0.3mm Thk

Bearing 0.300mm Thk

1шт.

15

143923C1

SHIM,95mm ID x 120mm OD x 0.13mm Thk

Bearing 0.130mm Thk

1шт.

15

143924C1

SHIM,95mm ID x 120mm OD x 0.1mm Thk

Bearing 0.100mm Thk

1шт.

15

143925C1

SHIM,95mm ID x 120mm OD x 0.08mm Thk

Bearing 0.076mm Thk

1шт.

16

124744C1

WASHER,95.63mm ID x 120mm OD x 8mm Thk

- thrust, axle

2шт.

17

1277020C2

RING

- axle retaining

2шт.

94547C1

SEAL KIT

SEAL KIT - axle, Includes: Ref. 18-19

2шт.

18

92687C1

SLEEVE

- wear

1шт.

19

92689C1

SEAL

- oil, oversize (Made for 130.0mm Shaft)

1шт.

20

1259720C2

PINION CARRIER

CARRIER - gear, planet, if used

2шт.

21

1259736C3

GEAR-SET

GEAR ASSEMBLY - planet, if used, Includes: Ref. 22-23

6шт.

22

67240C1

RING

- retainer, internal, if used

1шт.

23

1259737C2

SPACER

- bearing, if used

1шт.

24

A75211

ROLLER BEARING,1.9685" ID x 1.1024"

CONE - bearing, if used

12шт.

25

A75210

BEARING CUP,3.5433" OD x 0.9055"

CUP - bearing, if used

12шт.

28

1259672C5

SHAFT

- bearing, planet gear, if used

6шт.

29

30355R1

PIN,M8 x 26, Coiled

- coiled spring, 8 x 26 mm

6шт.

30

598318R1

RING, SNAP

RING - retaining

2шт.

31

1259732C1

HUB,47T Internal/18T External

- adapter, brake

2шт.

32

327059R1

SNAP RING,#275, 2.594, Ext

RING - retaining, external

2шт.

33

1259753C1

THRUST WASHER

- adapter brake

2шт.

34

94652C3

SHAFT

ASSEMBLY - sun gear, right, shown, Replaces: P/N 94652C2, Includes: Ref. 35

1шт.

35

1981327C1

PLUG

PIN - shaft locator

1шт.

36

94651C2

SHAFT

- sun gear, left, Replaces: P/N 94651C1

1шт.

38

84842C1

OIL SEAL,120mm ID x 160.23mm OD x 12mm Thk

SEAL - oil, regular (Made for 120.0mm Shaft)

2шт.

39

238-5241

O-RING,0.139" Thk x 3.859" ID, -241, Cl 5, 75 Duro

2шт.

40

1349345C1

CARRIER

- gear, planet, if used

2шт.

41

1349350C1

PINION

GEAR ASSEMBLY - planet, if used

6шт.

42

1349348C1

THRUST RING

RING - thrust, if used

12шт.

43

1997886C1

THRUST WASHER

WASHER - thrust, if used

12шт.

44

1349347C1

NEEDLE ROLLER,Needle, 6.65mm OD x 34.09mm L

BEARING - roller, if used

348шт.

45

1349346C1

SHAFT

- bearing, planet gear, if used

6шт.
