Запчасти Case IH 7140 (6-130) - FRONT DRIVE CLUTCH SHIELDS (06) - POWER TRAIN

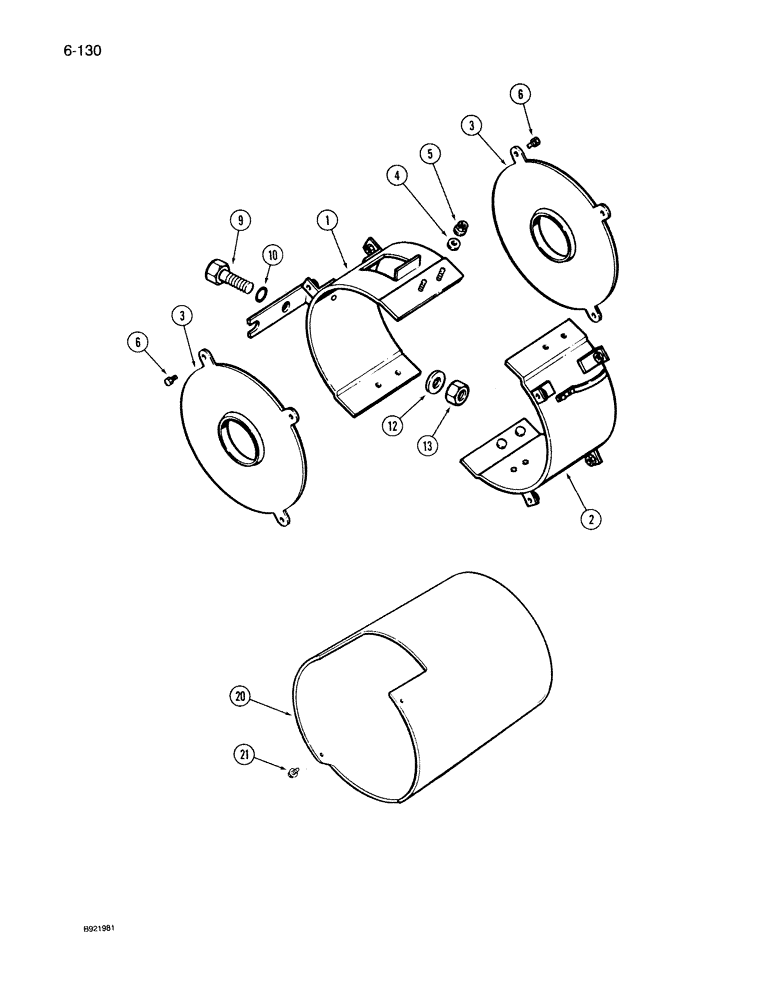

Схема запчастей Case IH 7140 - (6-130) - FRONT DRIVE CLUTCH SHIELDS (06) - POWER TRAIN
2
20
6
13
12
3
21
3
10
6
1
5
4
9

Артикул

Название

Примечание

Количество

1

1277379C1

SHIELD

- clutch, upper right

1шт.

Prior to Transmission Serial Number AJB0020091

1шт.

2

1276907C3

SHIELD

- clutch, upper left

1шт.

Prior to Transmission Serial Number AJB0020091

1шт.

3

1251822C2

COVER ASSY

COVER - end, shield

2шт.

Prior to Transmission Serial Number AJB0020091

1шт.

4

446179

WASHER,#12

- flat, 6 x 13 x 2 mm

4шт.

5

832-41306

NUT,M6 x 1, Cl 10

NUT, LOCK, M6 x 1, Cl 10

4шт.

6

31165R1

BOLT,Hex, M6 x 12mm, Cl 10.9

- hex, 6 x 12 mm, class 10.9

6шт.

9

1277305C1

BOLT,Hex, M16 x 50mm, Cl 10.9

BOLT - anchor, shield

2шт.

10

238-5016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

-016, 70 Duro, .614" ID x .070" Thk

2шт.

12

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

13

829-1316

NUT,M16, Cl 10

- hex, 16 mm

1шт.

20

1981297C1

HOUSING

SHIELD - clutch and gear, MFD

1шт.

21

31322R1

SELF-TAP SCREW,Hex Wash Hd, M4.8 x 13

SCREW - hex washer, self-tapping, 4.8 x 13 mm, MFD clutch and gear shield

4шт.

Выбрано товаров: 15
