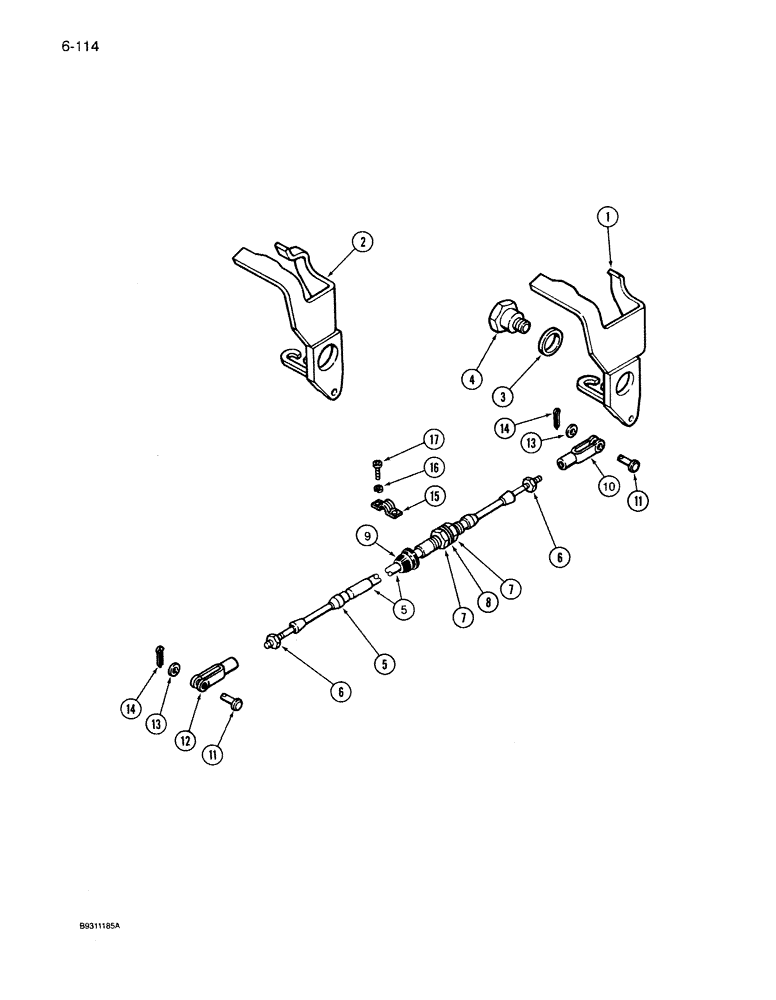

Запчасти Case IH 7140 (6-114) - TRANSMISSION, PARK LOCK CONTROL (06) - POWER TRAIN

1

1981906C3

LEVER

ASSEMBLY - park lock, Used on 4-speed-reverse only, Includes: Ref. 3

1шт.

2

96565C7

LEVER

ASSEMBLY - park lock, Used on 2-speed-reverse only, Includes: Ref. 3

1шт.

3

96423C1

NEEDLE BEARING,1" ID x 1.2505" OD x 0.5"

BEARING ASSEMBLY - needle

1шт.

4

1340016C1

BOLT,Parklock Pivot Shldr, Hex, M16 x 2 x 26.23mm

BOLT - shoulder, pivot

1шт.

5

1267745C3

CABLE

ASSEMBLY - park lock, Includes: Ref. 6-9

1шт.

6

425-154

JAM NUT,Jam, 1/4"-28, G5

- hex, jam, 1/4 inch NF

2шт.

7

425-1510

JAM NUT,Jam, 5/8"-18, G5

- hex jam, 5/8 inch NF

2шт.

8

495-21069

WASHER,5/8"

- flat, 11/16 x 1-3/4 x 9/64 inch

2шт.

9

96989C2

GROMMET

- cable, Replaces: P/N 96988C2

1шт.

10

213-31

CLEVIS

- cable, Replaces: P/N 28787R1

1шт.

11

141-52

CLEVIS PIN,1/4" x .770"

PIN - clevis, 1/4 inch

2шт.

12

28787R1

CLEVIS COUPLING

CLEVIS - cable

1шт.

13

495-81106

WASHER,0.28" ID x 0.75" OD x 0.05" Thk

- flat, 9/32 x 3/4 x 3/64 inch, if used

2шт.

14

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), (Replaces: P/N 132-328) 1/16" x 1/2"

2шт.

15

120008C1

CLAMP

- cable

1шт.

16

892-11004

LOCK WASHER,M4

WASHER, LOCK, M4

2шт.

17

31111R1

SCREW,Hex Soc Hd, M4 x 12, 12.9

- hex socket, 4 x 12 mm

2шт.
