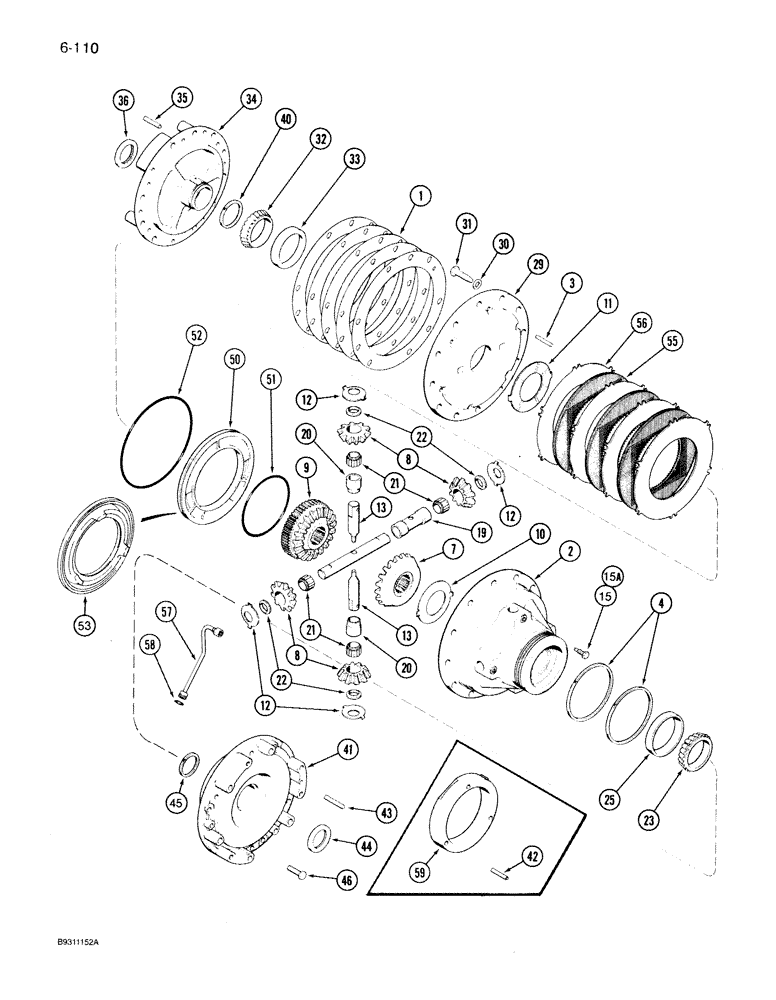

Запчасти Case IH 7140 (6-110) - TRANSMISSION, DIFFERENTIAL (06) - POWER TRAIN

1264586C1

SHIM KIT

- retainer, Includes: Ref. 1

1шт.

1

120510C2

SHIM

- retainer, 0.305 mm

1шт.

1

120509C2

SHIM

- retainer, 0.178 mm

1шт.

1

120511C2

SHIM

- retainer, 0.737 mm

1шт.

1

120512C2

SHIM

- retainer, 0.102 mm

1шт.

1

120513C2

SHIM,290mm ID x 388mm OD x 0.08mm Thk

- retainer, 0.089 mm

1шт.

2

1997705C1

CAGE

CASE - differential, right, Replaces: P/N 94779C2

1шт.

3

837-10060

DOWEL,M10 x 60

PIN - dowel, 10 x 60 mm

6шт.

4

148939C1

SEALING RING,OD 200.60 mm

RING - seal

2шт.

7

1259633C2

GEAR

- bevel, differential, 20 teeth

1шт.

8

92905C1

PINION

GEAR - pinion, differential, 10 teeth

4шт.

9

1259634C2

PINION

GEAR - lock, bevel

1шт.

10

92767C1

THRUST WASHER,82mm ID x 142mm OD x 1.6mm Thk

- thrust, lock

1шт.

11

92768C1

THRUST WASHER,88mm ID x 160mm OD x 1.6mm Thk

- thrust, differential

1шт.

12

92718C2

THRUST WASHER,32.7mm ID x 70mm OD x 1.6mm Thk

- thrust, pinion, Replaces: P/N 92718C1

4шт.

13

92906C1

SHORT SHAFT

SHAFT - pinion, short

2шт.

14

92907C1

SHAFT

- pinion, long, not shown

1шт.

15

1285778C1

BOLT,Hex, M10 x 1.5 x 33mm, Cl 10.9

BOLT - pin, pinion, if used

2шт.

15a

1997421C1

BOLT

- pin, pinion, if used

2шт.

19

1289349C1

SPACER

- pinion, long

1шт.

20

1289350C1

SPACER

- pinion, short

2шт.

21

1270697C1

NEEDLE BEARING

BEARING - needle

112шт.

22

1289348C1

RING

- thrust, bearing

4шт.

23

622336C1

ROLLER BEARING,84.99mm ID x 30mm W

CONE - bearing, 3.348 inch ID

1шт.

25

622337C1

BEARING CUP,129.99mm OD x 23.90mm Thk

CUP - bearing

1шт.

29

92800C2

COVER

- case, differential

1шт.

30

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

Flat M17.5 x 30 x 4, HT

12шт.

31

828-16055

BOLT,Hex, M16 x 2 x 55mm, Cl 10.9

12шт.

32

67250C1

ROLLER BEARING,89.99mm ID x 35mm W

CONE - bearing, 3.543 inch ID

1шт.

33

67251C1

BEARING CUP,144.98mm OD x 26.90mm Thk

CUP - bearing

1шт.

34

120503C2

RETAINER

- bearing, left

1шт.

35

136433A1

DOWEL,M12 x 65mm, HDN

PIN - dowel, 12 x 65 mm, Replaces: P/N 837-12065

5шт.

36

139059C1

SEAL,70mm ID x 90mm OD x 8mm Thk

- oil, retainer

1шт.

40

148942C2

RING

- seal, bearing

2шт.

Ref. 40, IF LOOKING FOR A SEAL WITH AN OD OF 3.25" AND AN ID OF 3", CAN USE 139060C2.

1шт.

41

1997369C1

RETAINER

ASSEMBLY - bearing, right, Replaces: P/N 139054C3

1шт.

42

837-10060

DOWEL,M10 x 60

PIN - dowel, 10 x 60 mm, If equipped

3шт.

43

136433A1

DOWEL,M12 x 65mm, HDN

PIN - dowel, 12 x 65 mm, Replaces: P/N 837-12065

5шт.

44

139059C1

SEAL,70mm ID x 90mm OD x 8mm Thk

- oil

1шт.

45

148941C1

RING

- seal

1шт.

46

613-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 8.8, Full Thd

6шт.

50

92914C1

PISTON ASSY.

PISTON - lock differential, if used

1шт.

51

238-5264

O-RING,0.139" Thk x 7.484" ID, -264, Cl 5, 75 Duro

Used with Ref. 50 -264, 70 Duro, 7.484" ID x .139" Thk

1шт.

52

238-6277

O-RING,0.139" Thk x 11.484" ID, -277, Cl 6, 90 Duro

Used with Ref. 50 -277, 90 Duro, 11.484" ID x .139" Thk

1шт.

53

1997422C1

PISTON

- lock, differential, if used

1шт.

94668C1

PLATE

KIT - lock, differential, Includes: Ref. 55-56

1шт.

55

NSS

NOT SOLD SEPARAT

PLATE - friction

3шт.

56

NSS

NOT SOLD SEPARAT

PLATE - separator

4шт.

57

120653C2

TUBE,9.52 mm OD, 212, 64 mm Length

- pressure, lock

1шт.

58

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.

59

120675C1

RING

- slip, lock, If equipped

1шт.
