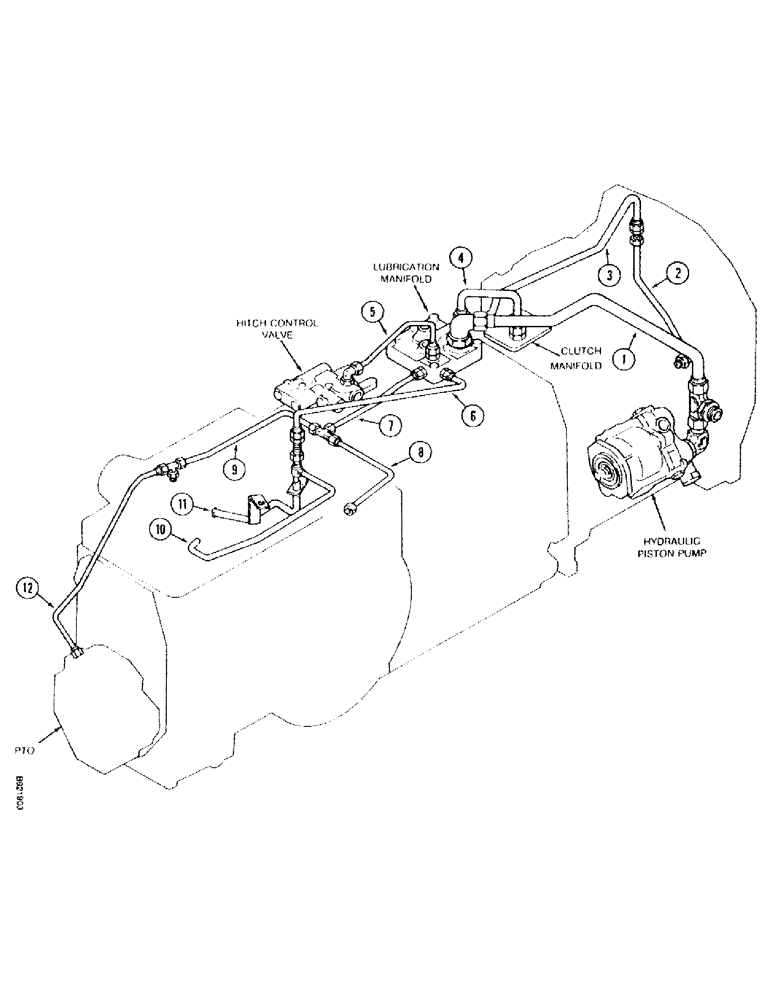

Запчасти Case IH 7140 (1-022) - PICTORIAL INDEX, LUBRICATION HYDRAULICS, TRANSMISSION SERIAL NUMBER AJB0055133 AND AFTER (00) - PICTORIAL INDEX

1

Manifold Lubrication Tube, Figure 8-06

1шт.

2

Lubrication Supply Tube, Figure 6-26

1шт.

3

Creeper Drive Lubrication Tube, Figure 6-50, 6-56

1шт.

4

Odd/Even Lubrication Tube, Figure 6-50

1шт.

5

Valve Return Tube, Figure 8-40

1шт.

6

Draft Cylinder Lubrication Tube, Figure 6-50

1шт.

7

Main Lubrication Supply Tube, Figure 6-50

1шт.

8

Right Brake Lubrication Tube, Figure 6-52

1шт.

9

Left Brake Lubrication Tube, Figure 6-52

1шт.

10

Internal Lubrication Tube, Figure 8-42

1шт.

11

Bevel Gear Lubrication Tube, Figure 6-142

1шт.

12

PTO Lubrication Tube, Figure 6-52

1шт.
