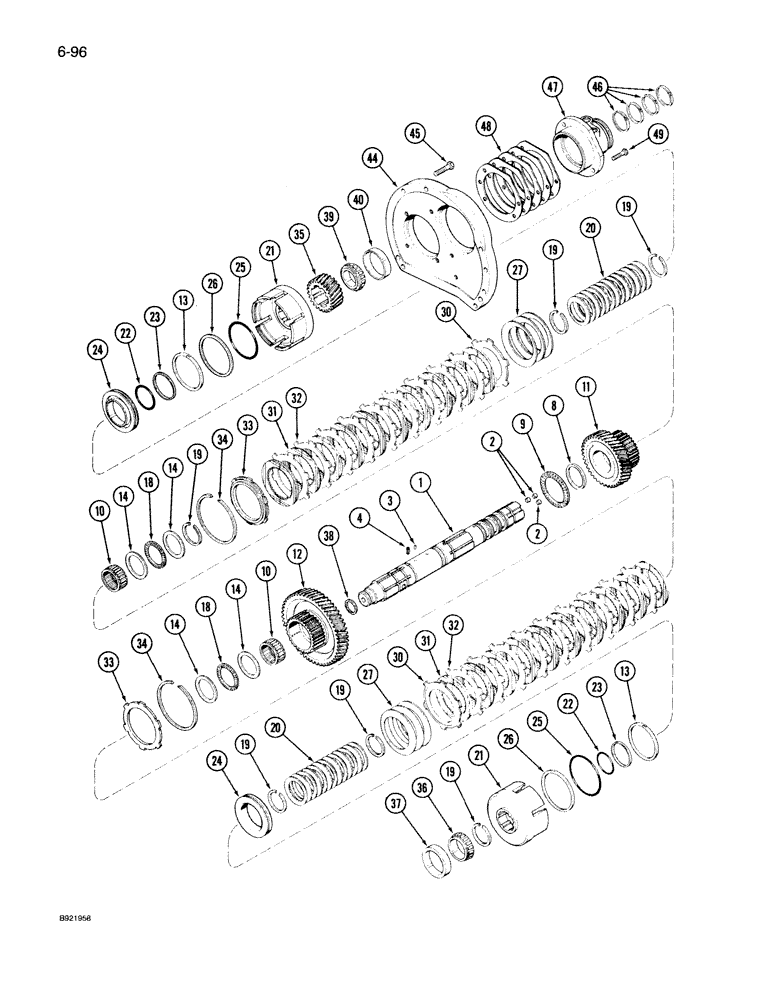

Запчасти Case IH 7140 (6-096) - TRANSMISSION, RANGE INPUT SHAFT, PRIOR TO TRANSMISSION S/N AJB0051028 (06) - POWER TRAIN

1

1963883C1

SHAFT

ASSEMBLY - input, Includes: Ref. 2-4

1шт.

2

1286084C1

PIN,12.02mm OD x 11mm L

- dowel, 12 x 11 mm

3шт.

3

20747R1

PIN,3/32" x 5/16", Coiled

5шт.

4

1963874C1

PIN,7.94mm OD x 14mm L, Slotted

- coiled, 5/16 inch x 14 mm

1шт.

8

1286040C1

RING

- support, bearing

1шт.

9

80908C1

BEARING ASSY

- needle, caged

1шт.

10

80909C1

BEARING ASSY,Needle, 63.49mm ID x 73.05mm OD x 38.1mm W

BEARING ASSEMBLY - needle, caged

2шт.

11

1285977C1

GEAR

- driver, medium, 37T

1шт.

12

1285979C1

PINION

GEAR - drive, high range

1шт.

13

1286052C1

RING,Locking, 98.8mm ID x 106.6mm OD x 4.5mm Thk

- seal, clutch

2шт.

This is the seal ring that goes on the gear hub behind the splines of the clutch plates. The seal ring for the bearing cage, ref 47, is P/N 1286027C2 shown on Figure 6-102.

1шт.

14

1286043C1

THRUST WASHER,63.56mm ID x 82.38mm OD x 2.37mm Thk

WASHER - thrust, bearing

4шт.

18

572182R1

THRUST BEARING,63.5mm ID x 82.5mm OD x 1.98mm W

BEARING ASSEMBLY - thrust, needle

2шт.

19

93350C1

RING

- retaining, external

6шт.

20

1286012C2

BELLEVILLE WASHER

- Belleville, return

26шт.

21

1285972C2

CLUTCH HOUSING

CARRIER - clutch

2шт.

22

1286081C1

O-RING,1.78mm Thk x 69.57mm ID, -39, 60 Duro

RING - piston, clutch low

2шт.

23

1286076C1

RING,73.46mm ID x 76.5mm OD x 2.28mm Thk

- piston, shift

2шт.

24

1285998C1

PISTON

- clutch, shift

2шт.

25

1286083C1

O-RING,1.78mm Thk x 120.37mm ID, -48, 60 Duro

RING - piston, low

2шт.

26

1286079C1

RING,128.96mm ID x 132mm OD x 2.28mm Thk

- piston, shift

2шт.

27

93129C1

BELLEVILLE WASHER

- Belleville, cushion

6шт.

30

93190C1

CLUTCH PLATE,107mm ID x 158mm OD x 2.01mm Thk

- reaction, clutch

2шт.

31

92935C5

DISC,98.63mm ID x 141mm OD x 1.95mm Thk

- friction

20шт.

32

92934C2

DISC

- separator, clutch

18шт.

33

1285994C1

CLUTCH DISC

DISC - backing, clutch

2шт.

34

1285996C1

SNAP RING,151mm OD, Internal

RING - retaining, plate

2шт.

35

1285971C1

DRIVING GEAR

GEAR - driver, low range

1шт.

36

A75211

ROLLER BEARING,1.9685" ID x 1.1024"

CONE - bearing

1шт.

37

A75210

BEARING CUP,3.5433" OD x 0.9055"

CUP - bearing

1шт.

38

116797C2

RING

- seal

1шт.

39

131243R91

BEARING, ROLLER,2.25" ID x 4.4375" OD x 1.1875"

CONE - bearing

1шт.

40

ST967

BEARING, CUP,2.5" ID x 4.4385" OD x 1.1955"

CUP - bearing

1шт.

44

1285995C2

SUPPORT ASSY.

SUPPORT - bearing

1шт.

45

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

6шт.

46

1286025C1

SEALING RING,Locking, 53.91mm ID x 57.91mm OD x 2.87mm Thk

- sealing, shaft

4шт.

47

1286008C3

CAGE

- bearing

1шт.

93285C1

SHIM KIT

- cage, Includes: Ref. 48 - 49

1шт.

48

1286061C1

SHIM,131mm ID x 170mm OD x 0.08mm Thk

Cage, 2 in kit 0.080mm Thk

1шт.

48

1286062C1

SHIM,131mm ID x 170mm OD x 0.1mm Thk

Cage, 2 in kit 0.100mm Thk

1шт.

48

1286063C1

SHIM,131mm ID x 170mm OD x 0.13mm Thk

Cage, 2 in kit 0.130mm Thk

1шт.

48

1286064C1

SHIM,131mm ID x 170mm OD x 0.3mm Thk

Cage, 2 in kit 0.300mm Thk

1шт.

48

1286065C1

SHIM,131mm ID x 170mm OD x 0.76mm Thk

Cage, 2 in kit 0.760mm Thk

1шт.

49

613-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

- hex, 10 x 30 mm

3шт.
