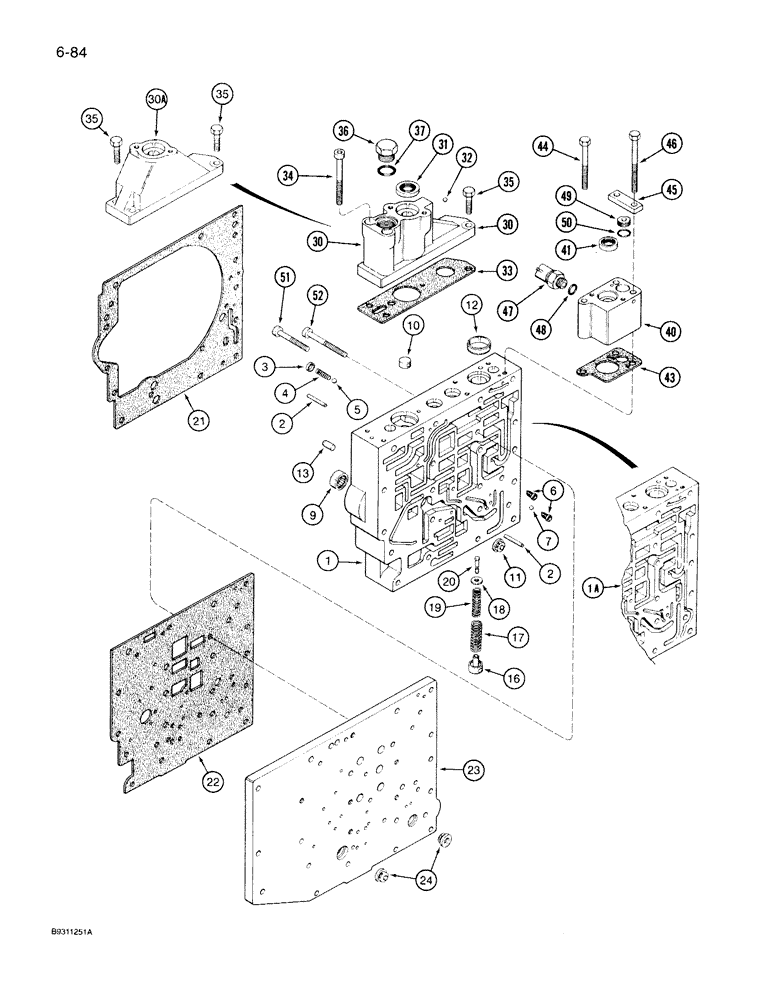

Запчасти Case IH 7140 (6-084) - TRANSMISSION CONTROL VALVE ASSEMBLY, BODY SECTION AND BODY PLATE, FOUR SPEED REVERSE VALVES (06) - POWER TRAIN

1981145C2

VALVE

ASSEMBLY - control, Without creeper, Includes: Ref. 1 thru 51

1шт.

Prior to Transmission S/N AJB0055133

1шт.

1981146C2

VALVE

ASSEMBLY - control, With creeper, Includes: Ref. 1 thru 51

1шт.

Prior to Transmission S/N AJB0055133

1шт.

1994672C1

VALVE, CONTROL

VALVE ASSEMBLY - control, Without creeper, Includes: Ref. 1 thru 51

1шт.

Transmission S/N AJB0055133 thru AJB0059983

1шт.

1994673C1

VALVE, CONTROL

VALVE ASSEMBLY - control, With creeper, Includes: Ref. 1 thru 51

1шт.

Transmission S/N AJB0055133 thru AJB0059983

1шт.

103182A1

VALVE, CONTROL

VALVE ASSEMBLY - control, Without creeper, Includes: Ref. 1A thru 51

1шт.

Transmission S/N AJB0059984 and after

1шт.

103183A1

VALVE, CONTROL

VALVE ASSEMBLY - control, With creeper, Includes: Ref. 1A thru 51

1шт.

Transmission S/N AJB0059984 and after

1шт.

1

1981073C2

BODY

ASSEMBLY - valve, Replaces: 1981073C1, used with 1981145C2, 1981146C2, 1994672C1, or 1994673C1, Includes: Ref. 2 thru 20

1шт.

1a

1543207C3

BODY

ASSEMBLY - valve, used with 103182A1 or 103183A1, Includes: Ref. 2 thru 20

1шт.

2

837-6035

DOWEL,M6 x 35

PIN - dowel, 6 x 35 mm

2шт.

3

41-1008

PLUG,Cup, 1/2"

- cup, 1/2 inch

1шт.

4

92972C3

SPRING

- relief

1шт.

5

211-210

BALL,3/8" Dia

- detent, 3/8 inch diameter

1шт.

6

133519C1

SCREEN

- filter

2шт.

7

511-1060

BALL,6mm Dia

Steel, Replaces 30935R1 6mm Dia

1шт.

9

D65128

NEEDLE BEARING,Needle, 19.05mm ID x 25.4mm OD x 9.53mm W

BEARING - shaft cam

1шт.

10

1286222C1

STOP

- spool, reducing

1шт.

11

1994615C2

VALVE, CHECK

VALVE - check, Replaces: 1286231C1

1шт.

12

1963809C1

SPACER

- spring

1шт.

13

20031R1

DOWEL,3/8" x 5/8"

PIN - dowel, 3/8 x 5/8 inch

2шт.

1963844C1

STOP

ASSEMBLY - spool, forward/reverse, Includes: Ref. 16-20

1шт.

16

NSS

NOT SOLD SEPARAT

STOP - spool

1шт.

17

NSS

NOT SOLD SEPARAT

SPRING - outer, detent

1шт.

18

NSS

NOT SOLD SEPARAT

WASHER - retainer, spring

1шт.

19

NSS

NOT SOLD SEPARAT

SPRING - inner, detent

1шт.

20

NSS

NOT SOLD SEPARAT

PIN - retainer, spring

1шт.

21

1986857C1

GASKET,0.53mm Thk

- housing to body, Replaces: 1286266C8

1шт.

22

1986858C1

GASKET

- body to plate, Replaces: 1286267C9

1шт.

Prior to Transmission S/N AJB0055133

1шт.

22

1994584C2

GASKET,0.53mm Thk

- body to plate, Replaces: 1994584C1

1шт.

Transmission S/N AJB0055133 thru AJB0059983

1шт.

Transmission S/N AJB0059984 and after

1шт.

23

93098C4

LARGE PLATE

PLATE ASSEMBLY - body, Includes: Ref. 24

1шт.

Prior to Transmission S/N AJB0055133

1шт.

23

109277A2

LARGE PLATE

PLATE ASSEMBLY - body, Replaces: 1994689C1 plate, Includes: Ref. 24

1шт.

Transmission S/N AJB0055133 thru AJB0059983

1шт.

Transmission S/N AJB0059984 and after

1шт.

24

1994615C2

VALVE, CHECK

VALVE - check, Replaces: 1286231C1

2шт.

30

93096C2

HOUSING ASSY.

HOUSING ASSEMBLY - control, clutch, Includes: Ref. 31-32

1шт.

Prior to Transmission S/N AJB0055133

1шт.

Transmission S/N AJB0055133 thru AJB0059983

1шт.

30a

1543349C2

HOUSING ASSY.

HOUSING ASSEMBLY - control, clutch, Includes: Ref. 31-32

1шт.

Transmission S/N AJB0059984 and after

1шт.

31

1963807C1

SEAL,15.88mm ID x 31.85mm OD x 6.35mm Thk

- stem

1шт.

32

30822R1

BALL,8mm Dia

- steel, 8 mm diameter, if used

1шт.

33

1286180C6

GASKET,0.88mm Thk

- housing

1шт.

34

864-8080

HEX SOC SCREW,M8 x 80mm, Cl 8.8

BOLT - hex socket, 8 x 80 mm, if used

2шт.

35

615-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

- hex, 8 mm - 1.25 x 30 mm

1-3шт.

36

86512512

PLUG,7/8" - 14 ORB

ASSEMBLY - hex, 7/8-14 inch O-ring boss, if used, Incl. Ref. 37

1шт.

37

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, If used

1шт.

40

94806C3

HOUSING ASSY.

HOUSING ASSEMBLY - spool, forward/reverse, Includes: Ref. 41

1шт.

41

1963843C1

SEAL,14.28mm ID x 25.5mm OD x 6.35mm Thk

- spud, spool

1шт.

43

93053C3

GASKET,0.79mm Thk

- housing

1шт.

44

813-8075

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

- hex, 8 x 75 mm, class 10.9, Replaces 30013R1

1шт.

45

94797C1

LARGE PLATE

STRAP - housing

1шт.

46

813-8080

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

- hex, 8 x 80 mm, Replaces: 931535R1

2шт.

47

1983218C2

SWITCH

ASSEMBLY - neutral start, Replaces: 92164C1

1шт.

49

94799C1

PLUG

- housing

1шт.

50

238-5016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

-016, 70 Duro, .614" ID x .070" Thk

1шт.

51

862-8055

HEX SOC SCREW,M8 x 55mm, Cl 12.9

BOLT - hex socket, 8 x 55 mm, See Figure 6-094

3шт.

52

861-8070

HEX SOC SCREW,M8 x 70mm, Cl 12.9

BOLT - hex socket, 8 x 70 mm, See Figure 6-094

4шт.

52

862-6070

HEX SOC SCREW,M6 x 70mm, Cl 12.9

BOLT - hex socket, 6 x 70 mm, See Figure 6-094

1шт.

48

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
