Запчасти Case IH 7140 (6-064) - TRANSMISSION CONTROL VALVE ASSEMBLY, BODY SECTION AND BODY PLATE, TWO SPEED REVERSE VALVES (06) - POWER TRAIN

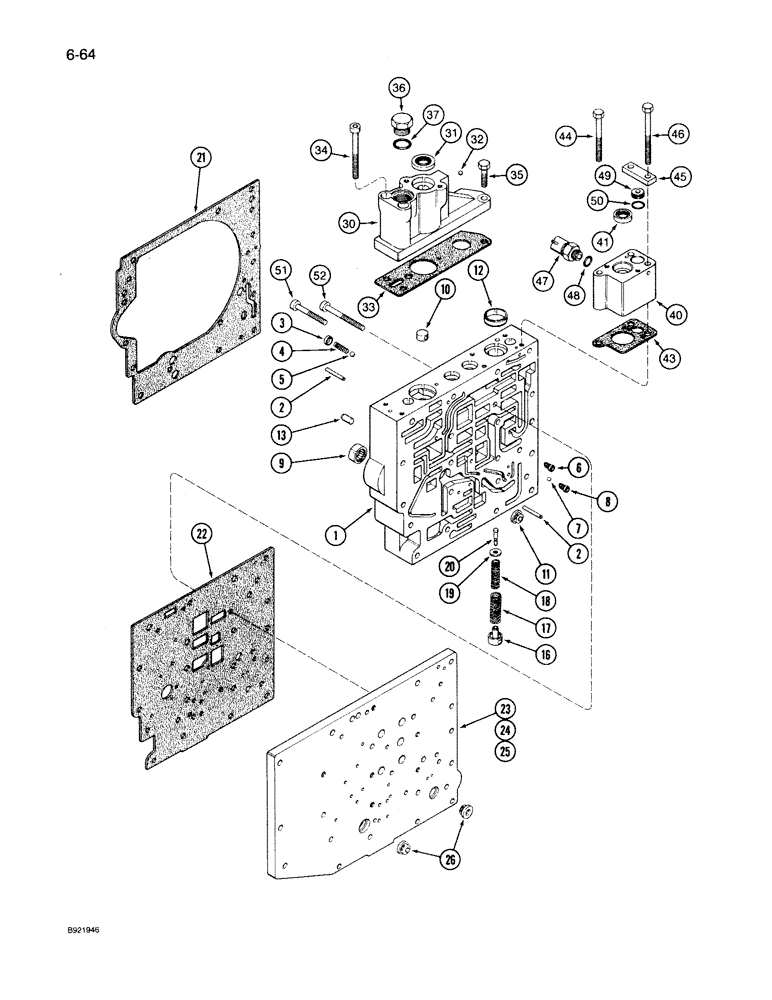

Схема запчастей Case IH 7140 - (6-064) - TRANSMISSION CONTROL VALVE ASSEMBLY, BODY SECTION AND BODY PLATE, TWO SPEED REVERSE VALVES (06) - POWER TRAIN
44
16
2
52
45
41
30
20
6
2
10
43
51
13
23
47
46
31
40
18
3
36
21
22
25
19
7
8
9
24
48
5
4
11
32
1
33
50
37
12
49
26
34
17
35

Артикул

Название

Примечание

Количество

1286200C2

LOCK VALVE

VALVE ASSEMBLY - control, 2-speed reverse without creeper, Includes: Ref. 1 thru 51 in this figure and parts in Figures 6-060, 6-062 and 6-068 - 6-076

1шт.

1289333C3

LOCK VALVE

VALVE ASSEMBLY - control, 2 speed reverse with creeper, Includes: Ref. 1 thru 51 in this figure and parts in Figures 6-060, 6-062 and 6-068 - 6-076

1шт.

1

1981073C1

BODY

ASSEMBLY - valve, Includes: Ref. 2-20

1шт.

2

30680R1

DOWEL,M6 x 35

PIN - dowel, 6 x 35 mm

2шт.

3

41-1008

PLUG,Cup, 1/2"

- cup, 1/2 inch

1шт.

4

92972C3

SPRING

- relief

1шт.

5

211-210

BALL,3/8" Dia

- detent, 3/8 inch diameter

1шт.

6

133519C1

SCREEN

- filter

1шт.

7

30935R1

BALL

- 6 mm diameter If equipped

1шт.

8

133519C1

SCREEN

- filter If equipped

1шт.

9

D65128

NEEDLE BEARING,Needle, 19.05mm ID x 25.4mm OD x 9.53mm W

BEARING - shaft cam

1шт.

10

1286222C1

STOP

- spool, reducing

1шт.

11

1286231C1

VALVE, CHECK

VALVE - check

1шт.

12

1963809C1

SPACER

- spring

1шт.

13

20031R1

DOWEL,3/8" x 5/8"

PIN - dowel, 3/8 x 5/8 inch

2шт.

1963844C1

STOP

ASSEMBLY - spool, forward/reverse, Includes: Ref. 16-20

1шт.

16

NSS

NOT SOLD SEPARAT

STOP - spool

1шт.

17

NSS

NOT SOLD SEPARAT

SPRING - outer, detent

1шт.

18

NSS

NOT SOLD SEPARAT

SPRING - inner, detent

1шт.

19

NSS

NOT SOLD SEPARAT

WASHER - retainer, spring

1шт.

20

NSS

NOT SOLD SEPARAT

PIN - retainer, spring

1шт.

21

1286266C8

GASKET

- cam housing to valve body

1шт.

22

1286267C8

GASKET

- valve body to body plate

1шт.

23

1975530C1

PACKAGE

PLATE KIT - body, Includes: Ref. 24

1шт.

For repair of all control valve mounting plates prior to Transmission S/N AJB0002481. Also order Ref. 1 and 2 in Figure 6-058, Ref. 43 in Figure 6-062, Ref. 21 and 22 in this figure and Ref. 7 in Figure 6-076.

1шт.

24

1342565C1

PLATE

ASSEMBLY - body, Includes: Ref. 26

1шт.

25

1342565C1

PLATE

ASSEMBLY - body, Includes: Ref. 26

1шт.

For repair of all control valve mounting plates of Transmission S/N AJB0002481 through AJB0013999. Also order Ref. 1 and 2 in Figure 6-058, Ref. 43 in Figure 6-062, Ref. 21 and 22 in this figure and Ref. 7 in Figure 6-076.

1шт.

26

1994615C1

VALVE, CHECK

VALVE - check, Replaces: 1286231C1 valve

1шт.

30

93096C2

HOUSING ASSY.

HOUSING ASSEMBLY - control, clutch, Includes: Ref. 31-32

1шт.

31

1963807C1

SEAL,15.88mm ID x 31.85mm OD x 6.35mm Thk

- stem

1шт.

32

30822R1

BALL,8mm Dia

- steel, 8 mm diameter

1шт.

33

1286180C6

GASKET,0.88mm Thk

- housing, Replaces: 1286180C4 gasket

1шт.

34

864-8080

HEX SOC SCREW,M8 x 80mm, Cl 8.8

BOLT - hex socket, 8 x 80 mm

2шт.

35

30004R1

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

- hex, 8 x 30 mm, class 10.9

1шт.

36

86512512

PLUG,7/8" - 14 ORB

ASSEMBLY - hex, 7/8-14 inch O-ring boss, Incl. Ref. 37

1шт.

37

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

40

94806C3

HOUSING ASSY.

HOUSING ASSEMBLY - spool, forward/reverse, Includes: Ref. 41

1шт.

41

1963843C1

SEAL,14.28mm ID x 25.5mm OD x 6.35mm Thk

- spud, spool

1шт.

43

93053C3

GASKET,0.79mm Thk

- housing

1шт.

44

30013R1

BOLT,Hex, M8 x 1.25 x 75mm, Cl 10.9

- hex, 8 x 75 mm, class 10.9

1шт.

45

94797C1

LARGE PLATE

STRAP - housing

1шт.

46

931535R1

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

- hex, 8 x 80 mm

2шт.

47

1983218C2

SWITCH

ASSEMBLY - start, neutral, Replaces: 92164C1

1шт.

49

94799C1

PLUG

- housing

1шт.

50

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

- 39/64 ID x 1/16 inch

1шт.

51

REF

INSTRUCTION

BOLT - hex socket, 8 x 55 mm, See Figure 6-706

1шт.

52

REF

INSTRUCTION

BOLT - hex socket, 8 x 70 mm, See Figure 6-076

1шт.

52

REF

INSTRUCTION

BOLT - hex socket, 6 x 70 mm, See Page 6-77

1шт.

48

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
