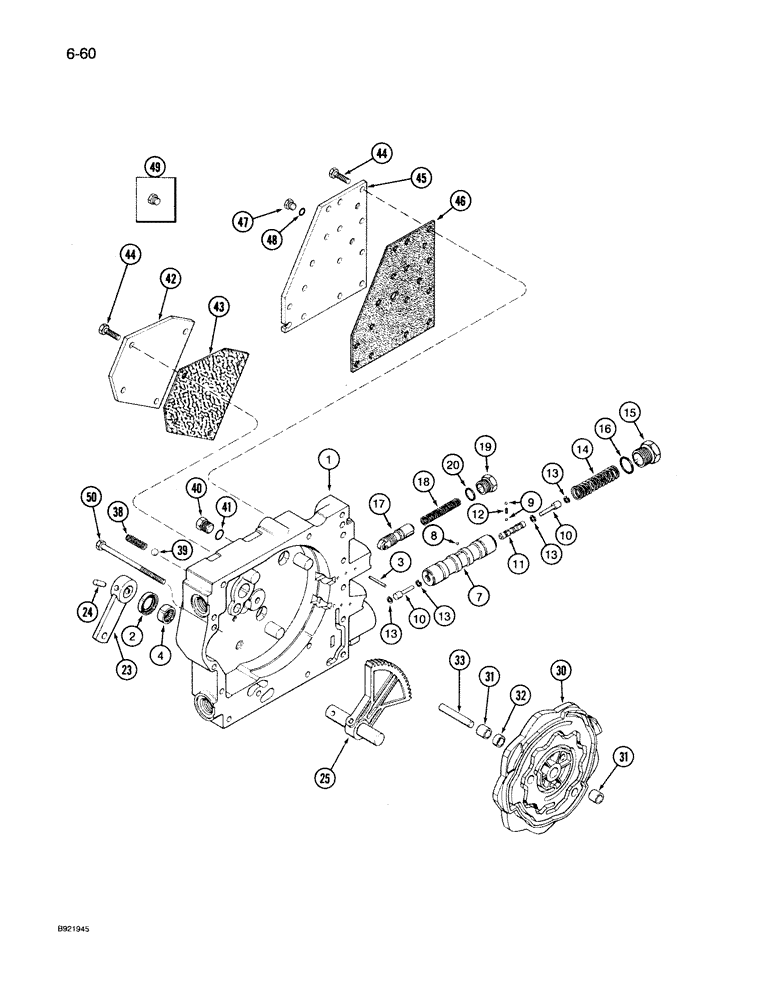

Запчасти Case IH 7140 (6-060) - TRANSMISSION CONTROL VALVE ASSEMBLY, CAM HOUSING SECTION, TWO SPEED REVERSE VALVES (06) - POWER TRAIN

1981078C1

SET OF PARTS

VALVE KIT - control, 2-speed reverse, without creeper

1шт.

1286200C2

LOCK VALVE

VALVE ASSEMBLY - control, 2-speed reverse, without creeper, Includes: Ref. 1 thru 20 in this figure and parts in Figures 6-062 - 6-076

1шт.

For repair of all transmission control valves prior to Transmission S/N AJB0014000. Also order Ref. 1 and 2 in Figure 6-058, Ref. 43 in Figure 6-062, Ref. 21 in Figure 6-064 and Ref. 7 in Figure 6-076.

1шт.

1289333C3

LOCK VALVE

VALVE ASSEMBLY - control, 2-speed reverse, with creeper, Includes: Ref. 1-20 in this figure and parts in Figures 6-62 - 6-76

1шт.

For repair of all transmission control valves prior to Transmission S/N AJB0014000. Also order Ref. 1 and 2 in Figure 6-058, Ref. 43 in Figure 6-062, Ref. 21 in Figure 6-064 and Ref. 7 in Figure 6-076.

1шт.

1

1286277C5

HOUSING

ASSEMBLY - cam, Includes: Ref. 2-4

1шт.

2

G105118

OIL SEAL

- oil, Replaces: A50421 seal

1шт.

3

26081R1

DOWEL,1/8" x 1 1/4"

PIN - dowel, 1/8 x 1-1/4 inch

2шт.

4

D65128

NEEDLE BEARING,Needle, 19.05mm ID x 25.4mm OD x 9.53mm W

BEARING - shaft

1шт.

7

94777C5

SPOOL

ASSEMBLY - drive, detent, Includes: Ref. 8-13

1шт.

8

31271R1

BALL,2mm Dia

- 2 mm diameter

3шт.

9

31279R1

BALL,2.5mm Dia

- 2.5 mm diameter

4шт.

10

NSS

NOT SOLD SEPARAT

STOP - spool, pilot

2шт.

11

NSS

NOT SOLD SEPARAT

SPOOL - pilot

1шт.

12

NSS

NOT SOLD SEPARAT

SPRING - friction, shuttle

2шт.

13

321298R1

SNAP RING,0.375", Int, #37

Ring, Snap, 0.375", Int, #37

4шт.

14

1963882C1

VALVE SPRING

SPRING - shuttle, detent

1шт.

15

1963881C1

PLUG

- spool, drive

1шт.

16

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

17

93099C2

VALVE

DETENT ASSEMBLY - cam

2шт.

18

1286235C1

VALVE SPRING

SPRING - detent, cam

2шт.

19

92957C1

PLUG

- detent

2шт.

20

876106C1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 8, 90 Duro

- 41/64 ID x 3/32 inch

2шт.
