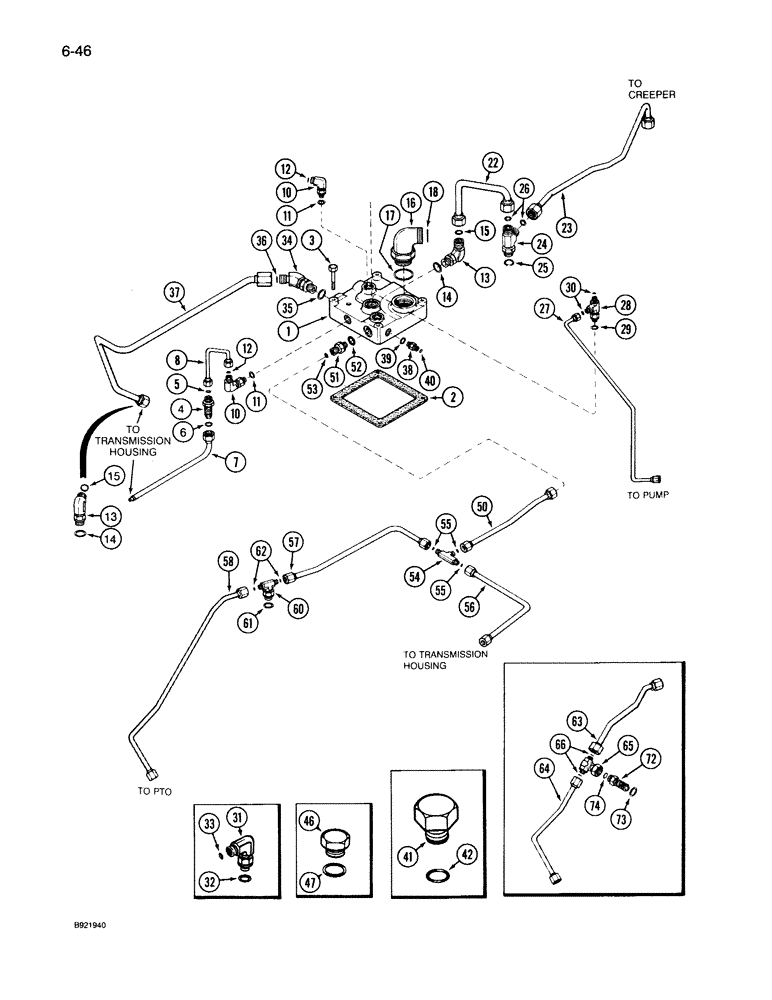

Запчасти Case IH 7140 (6-046) - TRANSMISSION, RANGE HOUSING TUBES AND MANIFOLD (06) - POWER TRAIN

1

1289291C1

MANIFOLD

- lube, prior to Transmission Serial Number AJB0055133

1шт.

2

145400C2

MANIFOLD GASKET,0.91mm Thk

- manifold, prior to Transmission Serial Number AJB0055133

1шт.

3

828-10065

BOLT,Hex, M10 x 1.5 x 65mm, Cl 10.9

- hex, 10 x 65 mm, class 10.9, prior to Transmission Serial Number AJB0055133

4шт.

4

93103C1

UNION

- bulkhead, lube, prior to Transmission Serial Number AJB0055133

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Prior to transmission S/N AJB0055133

1шт.

6

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

prior to Transmission S/N AJB0055133 -012, 90 Duro, .364" ID x .070" Thk

1шт.

7

1286095C1

TUBE

- lube, prior to Transmission Serial Number AJB0055133

1шт.

8

1289222C1

HYD TUBE

TUBE - lube, range spray, prior to Transmission Serial Number AJB0055133

1шт.

10

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

- 90 degree adjustable, 9/16 x 11/16 inch thread (With MFD), prior to Transmission Serial Number AJB0055133, Includes: Ref. 11 - 12

2шт.

11

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Boss end, prior to transmission S/N AJB0055133

1шт.

12

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face end, prior to Transmission S/N AJB0055133 -012, 90 Duro, .364" ID x .070" Thk

1шт.

13

201-306

90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

- 90 degree, 1-14 face x 7/8-14 inch adj O-ring boss, prior to Transmission Serial Number AJB0044915, Includes: Ref. 14 - 15

1шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Boss end, Prior to Transmission S/N AJB0055133

1шт.

15

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face end, prior to Transmission S/N AJB0055133 -016, 90 Duro, .614" ID x .070" Thk

1шт.

16

201-310

ELBOW,90 Degree Elbow, 2" - 12 Male ORFS x 1-7/8" - 12 Male ORB

- 90 degree adjustable, 1-7/8 x 2 inch thread, prior to Transmission Serial Number AJB0055133, Includes: Ref. 17 - 18

1шт.

17

237-6024

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

24-1, 90 Duro, 1.72" ID x .118" Thk, Boss end, prior to Transmission S/N AJB0055133

1шт.

18

238-6029

O-RING,0.07" Thk x 1.489" ID, -29, Cl 6, 90 Duro

Face end, prior to Transmission S/N AJB0055133 -029, 90 Duro, 1.489" ID x .070" Thk

1шт.

22

1968007C1

HYD TUBE,0.625" OD

TUBE - lube, clutch

1шт.

Prior to Transmission Serial Number AJB0046473.

1шт.

22

1348317C1

HYD TUBE,0.625" OD, 131.7, 95 mm Length

TUBE - lube, clutch

1шт.

Transmission Serial Number AJB0046473 through AJB0055132.

1шт.

23

1968006C1

TUBE

- lube, creeper drive

1шт.

Prior to Transmission Serial Number AJB0046473.

1шт.

23

1348316C1

HYD TUBE,0.5" OD, 548.8, 32.6 mm Length

TUBE - lube, creeper drive

1шт.

Transmission Serial Number AJB0046473 through AJB0055132.

1шт.

24

201-420

TEE,1"-14 x 7/8"-14 Run, ORFS

- adjustable, 1 x 7/8 x 7/8 inch thread, prior to Transmission Serial Number AJB0055133, Includes: Ref. 25-26

1шт.

25

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Boss end, Prior to Transmission S/N AJB0055133

1шт.

26

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face end, prior to Transmission S/N AJB0055133 -016, 90 Duro, .614" ID x .070" Thk

2шт.

27

1289259C2

HYD TUBE

TUBE - lube, pump drive, prior to Transmission Serial Number AJB0055133

1шт.

28

201-406

TEE,11/16"-16 x 9/16"-18 Run, ORFS

Adj, With hitch, prior to Transmission S/N AJB0055133, Incl Ref 29-30 11/16"-16 x 9/16"-18 Run, ORFS

1шт.

29

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Boss end, prior to transmission S/N AJB0055133

1шт.

30

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face end, prior to Transmission S/N AJB0055133 -012, 90 Duro, .364" ID x .070" Thk

2шт.

31

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

- 90° adjustable, 9/16 x 11/16 inch thread, Without hitch, prior to Transmission Serial Number AJB0055133, Includes: Ref. 32-33

1шт.

32

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Boss end, prior to transmission S/N AJB0055133

1шт.

33

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

prior to Transmission S/N AJB0055133 -012, 90 Duro, .364" ID x .070" Thk

1шт.

34

201-316

ELBOW,45 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

- 45° adjustable, 7/8 x 1 inch thread, prior to Transmission Serial Number AJB0055133, Includes: Ref. 35-36

2шт.

35

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Boss end, Prior to Transmission S/N AJB0055133

1шт.

36

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face end, prior to Transmission S/N AJB0055133 -016, 90 Duro, .614" ID x .070" Thk

1шт.

37

1960795C1

HYD TUBE

TUBE - lube range input, prior to Transmission Serial Number AJB0055133

1шт.

38

201-100

HYD CONNECTOR,9/16" - 18 Male ORFS x 7/16" - 20 Male ORB

ADAPTER - straight, 7/16 x 9/16 inch thread, With hitch, prior to Transmission Serial Number AJB0055133, Includes: Ref. 39 -40

1шт.

39

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, Boss end, prior to transmission s/n AJB0055133

1шт.

40

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face end, prior to Transmission S/N AJB0055133 -011, 90 Duro, .301" ID x .070" Thk

1шт.

41

9672438

PLUG,7/16" - 20 ORB

Assy, 1/4" tube, without hitch, prior to Transmission S/N AJB0055133, Incl. Ref. 42 Hex Hd, 7/16"-20 ORB

1шт.

42

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, Prior to transmission s/n AJB0055133

1шт.

43

201-403

TEE,1"-14 x 7/8"-14 Br, ORFS

Prior to Transmission S/N AJB0055133, Includes Ref. 44 & 45 1"-14 x 7/8"-14 Br, ORFS

1шт.

44

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Prior to Transmission S/N AJB0055133

1шт.

45

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Prior to Transmission S/N AJB0055133 -016, 90 Duro, .614" ID x .070" Thk

1шт.

46

76349

PLUG,9/16" - 18 ORB

Assy (Without MFD), prior to Transmission S/N AJB0055133, Incl. Ref. 47 Hex Hd, 9/16"-18 ORB

1шт.

47

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Prior to transmission S/N AJB0055133

1шт.

50

1289215C1

HYD TUBE,0.5" OD, 328.2, 17.6 mm Length

TUBE - lube main supply, prior to Transmission Serial Number AJB0055133

1шт.

51

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

CONNECTOR, HYD., , Prior to Transmission S/N AJB0055133, Includes Ref. 52-53 13/16"-16 ORFS x 3/4"-16 ORB

1шт.

52

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Boss end, prior to transmission S/N AJB0055133

1шт.

53

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face end, prior to Transmission S/N AJB0055133 -014, 90 Duro, .489" ID x .070" Thk

1шт.

54

201-409

TEE,13/16"-16 ORFS

- union, 13/16 inch thread, prior to Transmission Serial Number AJB0055133, Includes: Ref. 55

1шт.

55

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face end, prior to Transmission S/N AJB0055133 -014, 90 Duro, .489" ID x .070" Thk

3шт.

56

1289214C1

HYD TUBE,0.5" OD, 263.8, 205 mm Length

TUBE - lube, right brake, prior to Transmission Serial Number AJB0055133

1шт.

57

1289212C1

HYD TUBE,0.5" OD, 380,146.1 mm Length

TUBE ASSEM8LY - lube, left brake, prior to Transmission Serial Number AJB0055133

1шт.

58

1955485C1

HYD TUBE

TUBE - lube, PTO rear, prior to Transmission Serial Number AJB0055133

1шт.

60

201-402

TEE,13/16"-18 x 3/4"-16 Br, ORFS

- adjustable, 3/4 x 13/16 x 13/16 inch thread, prior to Transmission Serial Number AJB0055133, Includes: Ref. 61-62

1шт.

61

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Boss end, prior to transmission S/N AJB0055133

1шт.

62

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face end, prior to Transmission S/N AJB0055133 -014, 90 Duro, .489" ID x .070" Thk

2шт.

63

1289210C1

TUBE

- lube, PTO shaft, Prior to Transmission Serial Number AJB0044915

1шт.

64

1289209C1

HYD TUBE

TUBE - lube, PTO rear, Prior to Transmission Serial Number AJB0044915

1шт.

65

201-411

TEE,13/16"-16 ORFS x 13/16"-16 Sw Br

- swivel, 13/16 inch thread, Prior to Transmission Serial Number AJB0044915, Includes: Ref. 66

1шт.

66

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face end, Prior to Transmission S/N AJB0044915 -014, 90 Duro, .489" ID x .070" Thk

3шт.

72

93187C1

HYD CONNECTOR,9/16" - 18 ORFS x 13/16" - 16 ORFS

- bulkhead, Prior to Transmission Serial Number AJB0044915, Includes: Ref. 73-74

1шт.

73

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Prior to Transmission S/N AJB0044915 -014, 90 Duro, .489" ID x .070" Thk

1шт.

74

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Prior to transmission S/N AJB0044915

1шт.
